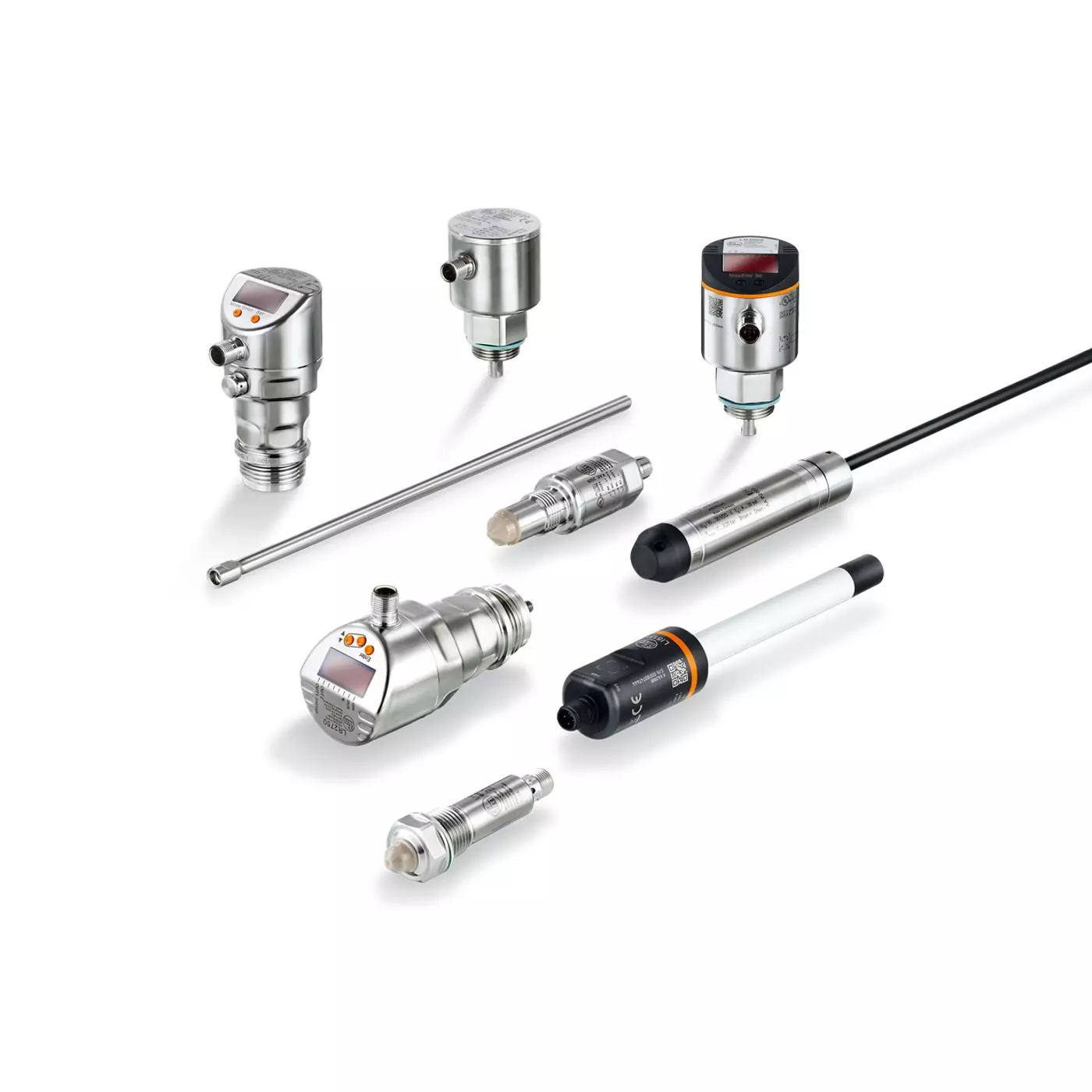

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
The LMC family reliably monitors levels, e.g. in machine tools or wastewater management, or protects pumps from running dry. The option of a thread at the back permits variable installation depths and application-specific installation.
The LMC sensor can be set to almost any liquid or viscous medium as well as to bulk materials. Permanent medium temperatures up to 100 °C or a heavy build-up are no problem. The differentiation between two media is possible due to the two witching outputs which can be set independently. The parameters can be set with IO-Link and USB interface accessory E30390.
Features & Benefits
- Excellent deposit suppression
- Flexible installation independent of the orientation
- Shock and vibration resistant in a robust stainless steel housing
- Factory set for simple plug & play
- Differentiation of media by parameterization of the switching outputs
Additional Notes
| MPN | Process connection | Probe length | Application | Factory setting | Electrical design |
|---|---|---|---|---|---|
| LMC100 | G 1/2 external thread | 28 mm | water,water-based media,oils,oil-based media,Coolants,powder | water, water-based media | PNP/NPN |
| LMC110 | G 1/2 external thread | 28 mm | water,water-based media,oils,oil-based media,Coolants,powder | oils, oil-based media | PNP/NPN |
| LMC400 | G 1/2 external thread | 9.6 mm | water,water-based media,oils,oil-based media,Coolants,powder | water, water-based media | PNP/NPN |
| LMC410 | G 1/2 external thread | 9.6 mm | water,water-based media,oils,oil-based media,Coolants,powder | oils, oil-based media | PNP/NPN |
| LMC500 | 1/2" NPT | 25 mm | water,water-based media,oils,oil-based media,Coolants,powder | water, water-based media | PNP/NPN |
| LMC502 | 1/2" NPT | 40 mm | Liquids,viscous media,powder | PNP/NPN | |
| LMC510 | 1/2" NPT | 25 mm | water,water-based media,oils,oil-based media,Coolants,powder | oils, oil-based media | PNP/NPN |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040040010005 | Process Sensors - Level - Continuous - Capacitive non-contact level measurement | $0.01 | |
| IFM-040040010010 | Process Sensors - Level - Continuous - Capacitive probes - Type Lx | $0.01 | |
| IFM-040040010015 | Process Sensors - Level - Continuous - Capacitive probes with integrated temperature - Type LT | $0.01 | |
| IFM-040040010020 | Process Sensors - Level - Continuous - Guided wave radar probes - Type LR | $0.01 | |
| IFM-040040010030 | Process Sensors - Level - Continuous - Guided wave radar probes for sanitary applications - Type LR | $0.01 | |
| IFM-040040010040 | Process Sensors - Level - Continuous - Flush pressure sensors with display for sanitary applications - Type PI | $0.01 | |
| IFM-040040010050 | Process Sensors - Level - Continuous - Flush pressure sensors with gauge display for sanitary applications - Type PG | $0.01 | |
| IFM-040040010060 | Process Sensors - Level - Continuous - Flush pressure transmitters for sanitary applications - Type PM | $0.01 | |
| IFM-040040010080 | Process Sensors - Level - Continuous - Submersible pressure transmitters - Type PS | $0.01 | |
| IFM-040040010090 | Process Sensors - Level - Continuous - Non-contact distance measurement - Type O1D | $0.01 | |
| IFM-040040010100 | Process Sensors - Level - Continuous - Ultrasonic sensors | $0.01 | |
| IFM-040040020100 | Process Sensors - Level - Point level measurement -Capacitive probes - Type Lx | $0.01 | |
| IFM-040040020110 | Process Sensors - Level - Point level measurement - Residue suppression level switches for sanitary applications - Type LM | $0.01 | |
| IFM-040040020120 | Process Sensors - Level - Point level measurement - Capacitive switches - Type K… | $0.01 | |
| IFM-040040020130 | Process Sensors - Level - Point level measurement - Evaluation units for level control | $0.01 |
