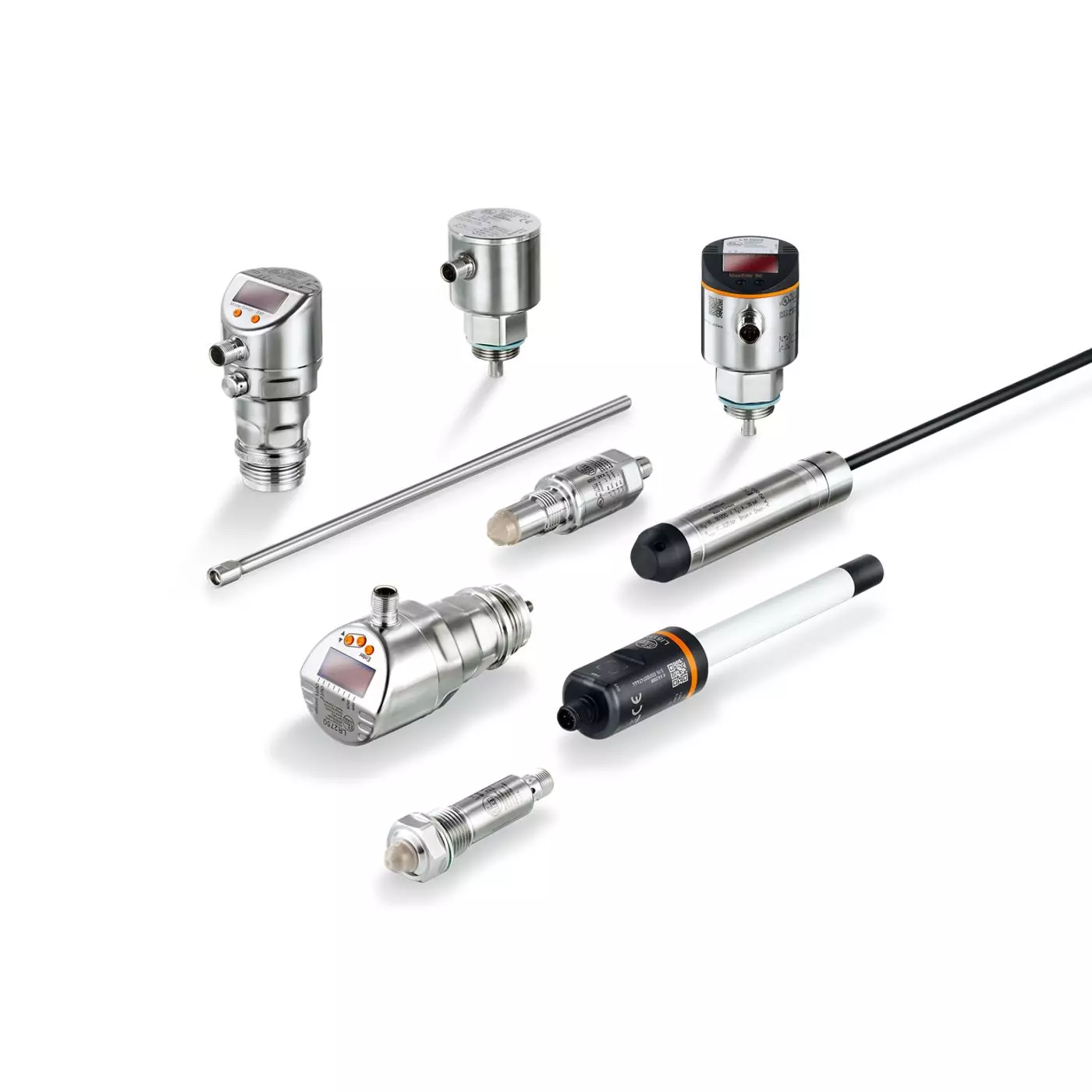

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Point level sensors for top down mounting
LI level sensors are used to monitor minimum levels, overflow or leakage of tanks. They are suitable for water, oils and coolants. The intuitive operating concept allows the user to easily perform an empty or full adjustment and configure the output function - all at the touch of a button. The sensors are available with four different probe lengths. The immersion depth is easily adjusted using the optional screw-in or flange adapters. The LI21 series is approved to the German Federal Water Act (WHG) section 19.
Features & Benefits
- Clearly visible indication of the switching status
- Easy pushbutton adjustment in the application
- Modular concept for a large variety of applications
- Versions with overflow prevention to Federal Water Act WHG § 19
Additional Notes
| MPN | Probe length L | Level measurement | Factory setting | Probe length | Electrical design |
|---|---|---|---|---|---|
| LI2141 | 132 mm | PNP | |||
| LI2142 | 273 mm | PNP | |||
| LI2143 | 481 mm | PNP | |||
| LI2243 | 481 mm | PNP | |||
| LI5131 | 132 mm | water-based media | PNP/NPN | ||
| LI5132 | 273 mm | water-based media | PNP/NPN | ||
| LI5133 | 481 mm | water-based media | PNP/NPN | ||
| LI5134 | 737 mm | water-based media | PNP/NPN |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040040010005 | Process Sensors - Level - Continuous - Capacitive non-contact level measurement | $0.01 | |
| IFM-040040010010 | Process Sensors - Level - Continuous - Capacitive probes - Type Lx | $0.01 | |
| IFM-040040010015 | Process Sensors - Level - Continuous - Capacitive probes with integrated temperature - Type LT | $0.01 | |
| IFM-040040010020 | Process Sensors - Level - Continuous - Guided wave radar probes - Type LR | $0.01 | |
| IFM-040040010030 | Process Sensors - Level - Continuous - Guided wave radar probes for sanitary applications - Type LR | $0.01 | |
| IFM-040040010040 | Process Sensors - Level - Continuous - Flush pressure sensors with display for sanitary applications - Type PI | $0.01 | |
| IFM-040040010050 | Process Sensors - Level - Continuous - Flush pressure sensors with gauge display for sanitary applications - Type PG | $0.01 | |
| IFM-040040010060 | Process Sensors - Level - Continuous - Flush pressure transmitters for sanitary applications - Type PM | $0.01 | |
| IFM-040040010080 | Process Sensors - Level - Continuous - Submersible pressure transmitters - Type PS | $0.01 | |
| IFM-040040010090 | Process Sensors - Level - Continuous - Non-contact distance measurement - Type O1D | $0.01 | |
| IFM-040040010100 | Process Sensors - Level - Continuous - Ultrasonic sensors | $0.01 | |
| IFM-040040020105 | Process Sensors - Level - Point level measurement - Residue suppression level switches for industrial applications - Type LM | $0.01 | |
| IFM-040040020110 | Process Sensors - Level - Point level measurement - Residue suppression level switches for sanitary applications - Type LM | $0.01 | |
| IFM-040040020120 | Process Sensors - Level - Point level measurement - Capacitive switches - Type K… | $0.01 | |
| IFM-040040020130 | Process Sensors - Level - Point level measurement - Evaluation units for level control | $0.01 |
