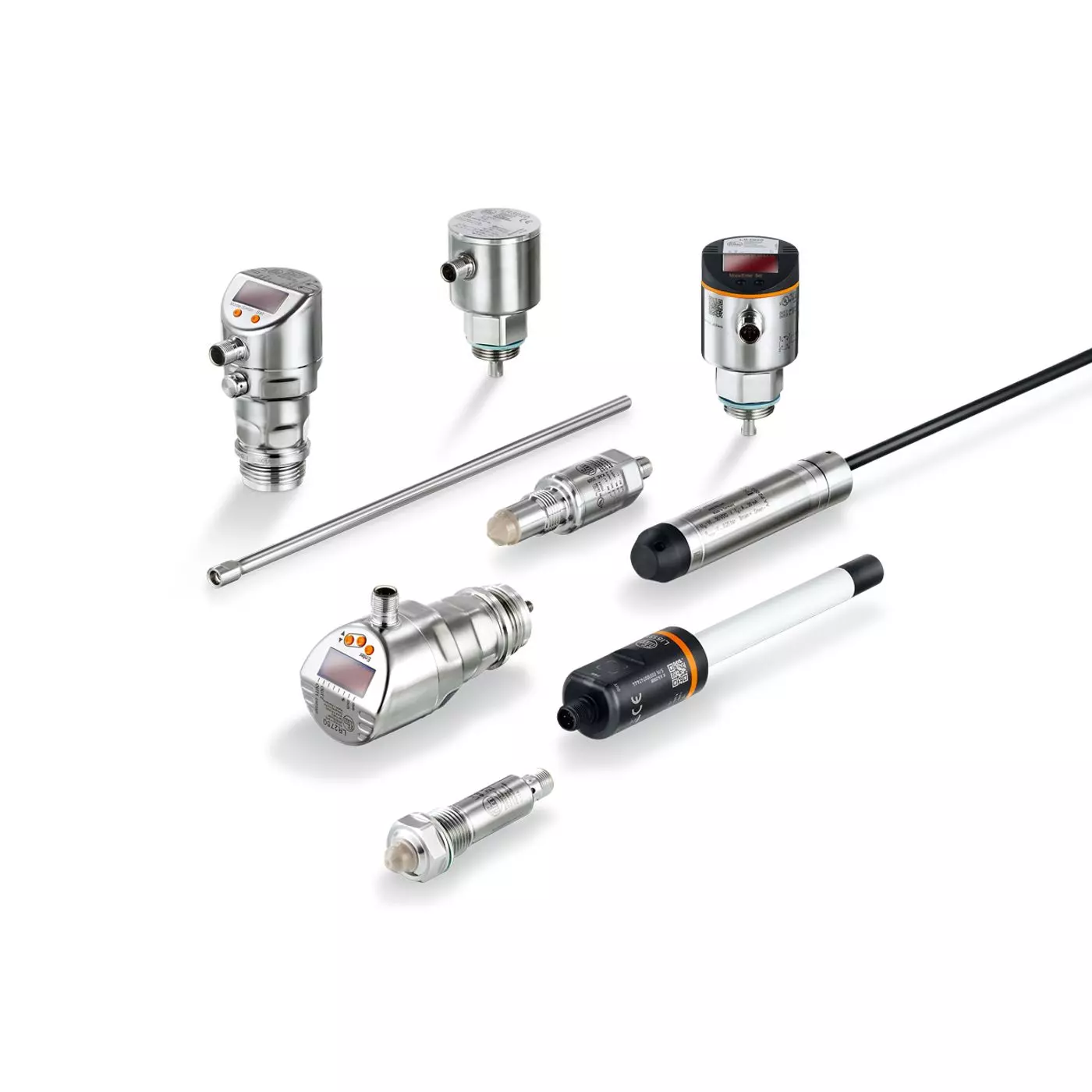

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Submersible pressure transmitters
The submersible pressure transmitters of the PS3 series are designed for level measurement in containers, tanks, drill holes, wells, streaming water, or wastewater plants. The sensors are characterised by their precise output signal and long-term stability. The sensors have an analogue output signal and are based on two-wire technology. This reduces the wiring complexity in new installations and facilitates exchange in existing two-wire connections. Optional accessories like an additional weight or a cable clamp fastener allow optimum adaptation to the application.
Features & Benefits
- Low-cost, simple level measurement
- Pressure compensation via internally vented cable
- Reduced wiring complexity when operated as two-wire current loop
- High overall accuracy and long-term stability
- Versions with ATEX, IECEx and GL approval
Additional Notes
| MPN | Measuring range | Analog current output | Output function | Medium temperature | Protection |
|---|---|---|---|---|---|
| PS307A | 0...0.6 bar / 0...600 mbar / 0...8.7 psi / 0...60 kPa | 4...20 mA | analog | -10...60; (T6: -10...60 °C; T5: -10...80 °C; T4: -10...85 °C; 1 D, 1/2 D, 2 D (750 mW): -10...40 °C; (650 mW): -10...70 °C; (550 mW): -10...85 °C) °C | IP 68 |
| PS308A | 0...0.25 bar / 0...250 mbar / 0...3.63 psi / 0...25 kPa | 4...20 mA | analog | -10...60; (T6: -10...60 °C; T5: -10...80 °C; T4: -10...85 °C; 1 D, 1/2 D, 2 D (750 mW): -10...40 °C; (650 mW): -10...70 °C; (550 mW): -10...85 °C) °C | IP 68 |
| PS317A | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...100 kPa | 4...20 mA | analog | -10...60; (T6: -10...60 °C; T5: -10...80 °C; T4: -10...85 °C; 1 D, 1/2 D, 2 D (750 mW): -10...40 °C; (650 mW): -10...70 °C; (550 mW): -10...85 °C) °C | IP 68 |
| PS3208 | 0...0.25 bar / 0...250 mbar / 0...3.63 psi / 0...25 kPa | 4...20 mA | analog | -10...50 °C | IP 68 |
| PS3407 | 0...0.6 bar / 0...600 mbar / 0...8.7 psi / 0...60 kPa | 4...20 mA | analog | -10...50 °C | IP 68 |
| PS3417 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...100 kPa | 4...20 mA | analog | -10...50 °C | IP 68 |
| PS3427 | 0...0.6 bar / 0...600 mbar / 0...8.7 psi / 0...60 kPa | 4...20 mA | analog | -10...50 °C | IP 68 |
| PS3607 | 0...0.6 bar / 0...600 mbar / 0...8.7 psi / 0...60 kPa | 4...20 mA | analog | -10...50 °C | IP 68 |
| PS3617 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...100 kPa | 4...20 mA | analog | -10...50 °C | IP 68 |
| PS4208 | 0...0.25 bar / 0...250 mbar / 0...3.63 psi / 0...25 kPa | 4...20 mA | analog | -10...85 °C | IP 68 |
| PS4407 | 0...0.6 bar / 0...600 mbar / 0...8.7 psi / 0...60 kPa | 4...20 mA | analog | -10...85 °C | IP 68 |
| PS4408 | 0...0.25 bar / 0...250 mbar / 0...3.63 psi / 0...25 kPa | 4...20 mA | analog | -10...85 °C | IP 68 |
| PS4417 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...100 kPa | 4...20 mA | analog | -10...85 °C | IP 68 |
| PS4506 | 0...0.6 bar / 0...600 mbar / 0...8.7 psi / 0...60 kPa | 4...20 mA | analog | -10...85 °C | IP 68 |
| PS4607 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...100 kPa | 4...20 mA | analog | -10...85 °C | IP 68 |
