Photoelectric fork sensors / angle sensors
Photoelectric fork and angle sensors are used for the detection of very small objects and for counting tasks in feeding, assembly and handling applications. Further application examples are belt edge and guide monitoring. The sensors are distinguished by a high switching frequency and a particularly fine and precise light beam. This allows for the reliable detection of very fast processes.
Made from distortion-resistant diecast zinc, the housing ensures long-term stability of the optical axis. No time-consuming adjustment is required because transmitter and receiver are already aligned towards each other.
The sensitivity can be set intuitively via potentiometer. Light-on / dark-on mode is selected via rotary switch.
- The accurate laser guarantees reliable detection of tiny objects from Ø 30 µm
- Quick set-up: no need to align transmitter and receiver
- Amount of light is continuously monitored so soiling is deteced
- Sensor modes (power, speed, high resolution) can be set for the specific application
MPN | Dimensions | Fork depth D | Fork width W | Output function | Output |
---|---|---|---|---|---|
OPU200 | 25 x 10 x 45 mm | 17 mm | 10 mm | light-on/dark-on mode; (selectable) | DC PNP/NPN |
OPU201 | 40 x 10 x 50 mm | 25 mm | 20 mm | light-on/dark-on mode; (selectable) | DC PNP |
OPU202 | 50 x 10 x 60 mm | 35 mm | 30 mm | light-on/dark-on mode; (selectable) | DC PNP |
OPU203 | 70 x 10 x 80 mm | 55 mm | 50 mm | light-on/dark-on mode; (selectable) | DC PNP |
OPU204 | 100 x 10 x 80 mm | 55 mm | 80 mm | light-on/dark-on mode; (selectable) | DC PNP |
OPU205 | 144 x 12 x 90 mm | 60 mm | 120 mm | light-on/dark-on mode; (selectable) | DC PNP |
OPU207 | 40 x 10 x 50 mm | 25 mm | 20 mm | light-on/dark-on mode; (selectable) | DC NPN |
OPU208 | 50 x 10 x 60 mm | 35 mm | 30 mm | light-on/dark-on mode; (selectable) | DC NPN |
OPU209 | 70 x 10 x 80 mm | 55 mm | 50 mm | light-on/dark-on mode; (selectable) | DC NPN |
OPU210 | 100 x 10 x 80 mm | 55 mm | 80 mm | light-on/dark-on mode; (selectable) | DC NPN |
OPU211 | 144 x 12 x 90 mm | 60 mm | 120 mm | light-on/dark-on mode; (selectable) | DC NPN |
OPU700 | 50 x 10 x 60 mm | 35 mm | 30 mm | light-on/dark-on mode; (selectable) | DC PNP/NPN |
OPU701 | 70 x 10 x 80 mm | 55 mm | 50 mm | light-on/dark-on mode; (selectable) | DC PNP/NPN |
OPU702 | 100 x 10 x 80 mm | 55 mm | 80 mm | light-on/dark-on mode; (selectable) | DC PNP/NPN |
SKU | Description | List price | - |
---|---|---|---|

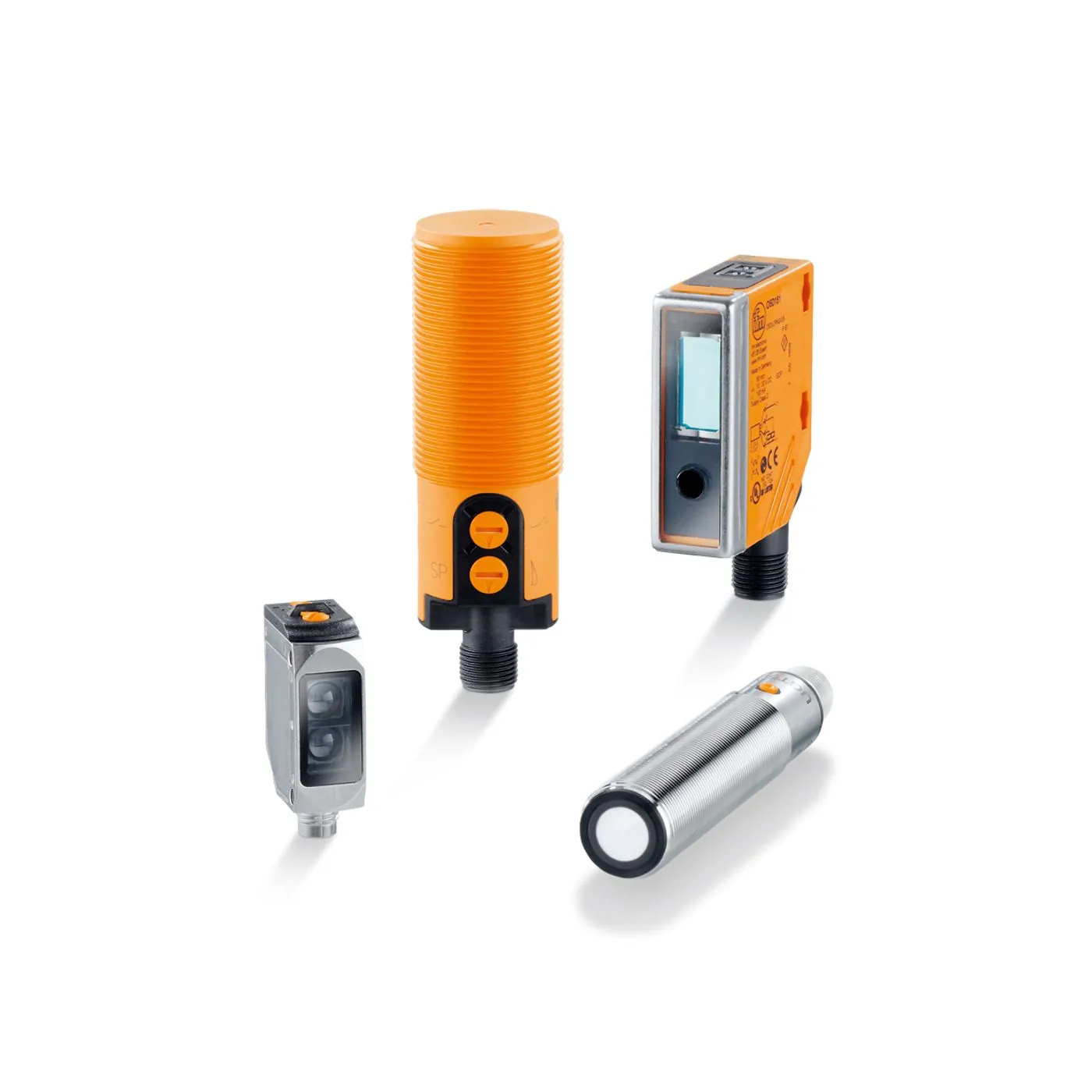

IFM-055040010010 | IO-Link - IO-Link position sensors - IO-Link - Inductive sensors | $0.01 | |
IFM-055040020010 | IO-Link - IO-Link position sensors - IO-Link - Capacitive sensors / IO-Link - Cylindrical capacitive sensors | $0.01 | |
IFM-055040020020 | IO-Link - IO-Link position sensors - IO-Link - Capacitive sensors / IO-Link - Rectangular capacitive sensors | $0.01 | |
IFM-055040020030 | IO-Link - IO-Link position sensors - IO-Link - Capacitive sensors / IO-Link - Capacitive sensors with LED display | $0.01 | |
IFM-055040030010 | IO-Link - IO-Link position sensors - IO-Link - Magnetic sensors | $0.01 | |
IFM-055040050010 | IO-Link - IO-Link position sensors - IO-Link - Ultrasonic sensors | $0.01 | |
IFM-055040060010 | IO-Link - IO-Link position sensors - IO-Link - Photoelectric sensors / IO-Link - O6 wetline for harsh applications | $0.01 | |
IFM-055040060025 | IO-Link - IO-Link position sensors - IO-Link - Photoelectric sensors / IO-Link - O8 for short range precise applications | $0.01 | |
IFM-055040060040 | IO-Link - IO-Link position sensors - IO-Link - Photoelectric sensors / IO-Link - provision of the distance value via IO-Link | $0.01 | |
IFM-055040090010 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - OID laser distance sensors with adjustment dial | $0.01 | |
IFM-055040090020 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - OID laser distance sensors for harsh environments | $0.01 | |
IFM-055040090030 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - O5D laser distance sensors with display | $0.01 | |
IFM-055040090040 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - O1D laser distance sensors for industrial automation | $0.01 | |
IFM-055040090050 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - PMD Profiler for object profile checking | $0.01 | |
IFM-055040090060 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - Distance sensors type M18 Cube in metal housing | $0.01 |
