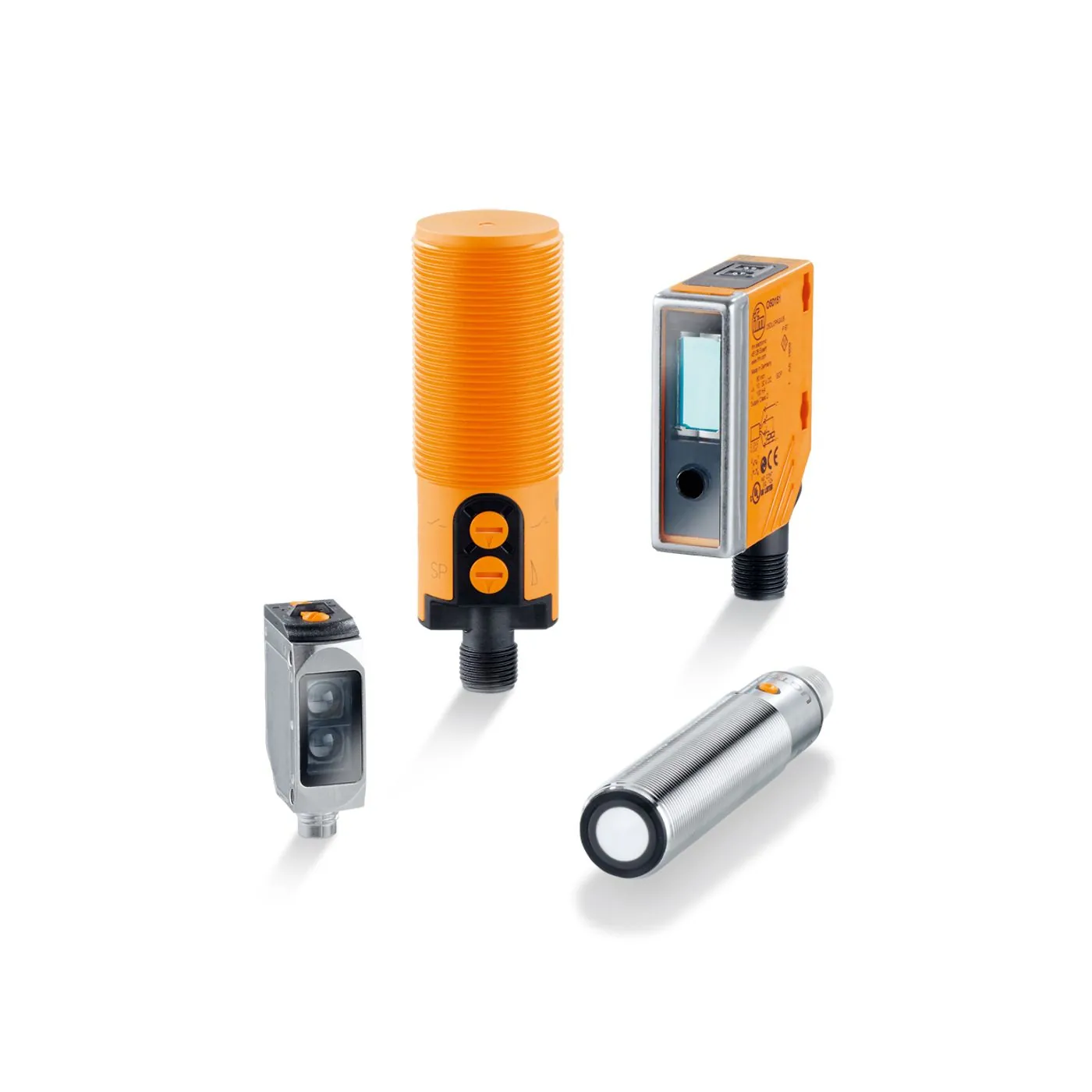

IO-Link position sensors
Position sensors are nowadays indispensable in industrial applications to reliably detect positions on machines. Compared to mechanical switches, inductive, capacitive and magnetic sensors offer ideal characteristics: non-contact operation free from any wear and tear, high switching frequencies and accuracy. In addition, they are insensitive to vibration, dust and moisture. Cylinder sensors are used for position detection of pistons in pneumatic cylinders. In industrial processes where liquids, air or gases are used, valves are needed for dosing and control. Valve sensors reliably signal the positions of valve actuators, valves, slides and flaps. Photoelectric sensors as "artificial eyes" are fundamental to automation technology. They are used where reliable and non-contact detection of the exact position of objects is required. The material of the object to be detected is of no importance. Compared to inductive, capacitive and magnetic sensors, photoelectric sensors have a much larger sensing zone. Laser sensors are used for the detection of very small objects. In combination with time-of-flight measurement, even long distances can be measured reliably.
- Color-independent distance measurement even of very flat or reflective objects
- Easy parameter setting and measured value output to the nearest millimeter via IO-Link
- Compact light spot for precise detection even at longer distances
- Extremely reliable background suppression
- Installation within seconds, space-saving design
MPN | Product designation | Transmitter / receiver | Range | Range referred to prismatic reflector | Dimensions |
---|---|---|---|---|---|
O8E200 | Through-beam sensor | receiver | < 3 m | 28.1 x 8.1 x 14.4 mm | |
O8E202 | Through-beam sensor | receiver | < 3 m | 28.1 x 8.1 x 14.4 mm | |
O8E204 | Through-beam sensor | receiver | < 3 m | 28.1 x 8.1 x 14.4 mm | |
O8H200 | Diffuse reflection sensor | 3...15 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H202 | Diffuse reflection sensor | 3...15 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H204 | Diffuse reflection sensor | 3...15 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H206 | Diffuse reflection sensor | 1...30 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H208 | Diffuse reflection sensor | 1...30 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H210 | Diffuse reflection sensor | 1...30 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H212 | Diffuse reflection sensor | 1...50 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H214 | Diffuse reflection sensor | 1...50 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H216 | Diffuse reflection sensor | 1...50 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H218 | Diffuse reflection sensor | 1...80 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H220 | Diffuse reflection sensor | 1...80 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H222 | Diffuse reflection sensor | 1...80 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H270 | Diffuse reflection sensor | 1...80 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H271 | Diffuse reflection sensor | 1...80 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H272 | Diffuse reflection sensor | 1...80 mm | 28.1 x 8.1 x 14.4 mm | ||
O8H273 | Diffuse reflection sensor | 1...80 mm | 28.1 x 8.1 x 14.4 mm | ||
O8P200 | Retro-reflective sensor | 0.02...1.8 | 28.1 x 8.1 x 14.4 mm | ||
O8P202 | Retro-reflective sensor | 0.02...1.8 | 28.1 x 8.1 x 14.4 mm | ||
O8P204 | Retro-reflective sensor | 0.02...1.8 | 28.1 x 8.1 x 14.4 mm | ||
O8T200 | Diffuse reflection sensor | 0...180 mm | 28.1 x 8.1 x 14.4 mm | ||
O8T202 | Diffuse reflection sensor | 0...180 mm | 28.1 x 8.1 x 14.4 mm | ||
O8T204 | Diffuse reflection sensor | 0...180 mm | 28.1 x 8.1 x 14.4 mm |
SKU | Description | List price | - |
---|---|---|---|
IFM-055040010010 | IO-Link - IO-Link position sensors - IO-Link - Inductive sensors | $0.01 | |
IFM-055040020010 | IO-Link - IO-Link position sensors - IO-Link - Capacitive sensors / IO-Link - Cylindrical capacitive sensors | $0.01 | |
IFM-055040020020 | IO-Link - IO-Link position sensors - IO-Link - Capacitive sensors / IO-Link - Rectangular capacitive sensors | $0.01 | |
IFM-055040020030 | IO-Link - IO-Link position sensors - IO-Link - Capacitive sensors / IO-Link - Capacitive sensors with LED display | $0.01 | |
IFM-055040030010 | IO-Link - IO-Link position sensors - IO-Link - Magnetic sensors | $0.01 | |
IFM-055040050010 | IO-Link - IO-Link position sensors - IO-Link - Ultrasonic sensors | $0.01 | |
IFM-055040060010 | IO-Link - IO-Link position sensors - IO-Link - Photoelectric sensors / IO-Link - O6 wetline for harsh applications | $0.01 | |
IFM-055040060030 | IO-Link - IO-Link position sensors - IO-Link - Photoelectric sensors / IO-Link - Optical fork sensors | $0.01 | |
IFM-055040060040 | IO-Link - IO-Link position sensors - IO-Link - Photoelectric sensors / IO-Link - provision of the distance value via IO-Link | $0.01 | |
IFM-055040090010 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - OID laser distance sensors with adjustment dial | $0.01 | |
IFM-055040090020 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - OID laser distance sensors for harsh environments | $0.01 | |
IFM-055040090030 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - O5D laser distance sensors with display | $0.01 | |
IFM-055040090040 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - O1D laser distance sensors for industrial automation | $0.01 | |
IFM-055040090050 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - PMD Profiler for object profile checking | $0.01 | |
IFM-055040090060 | IO-Link - IO-Link position sensors - IO-Link - Distance sensors / IO-Link - Distance sensors type M18 Cube in metal housing | $0.01 |
