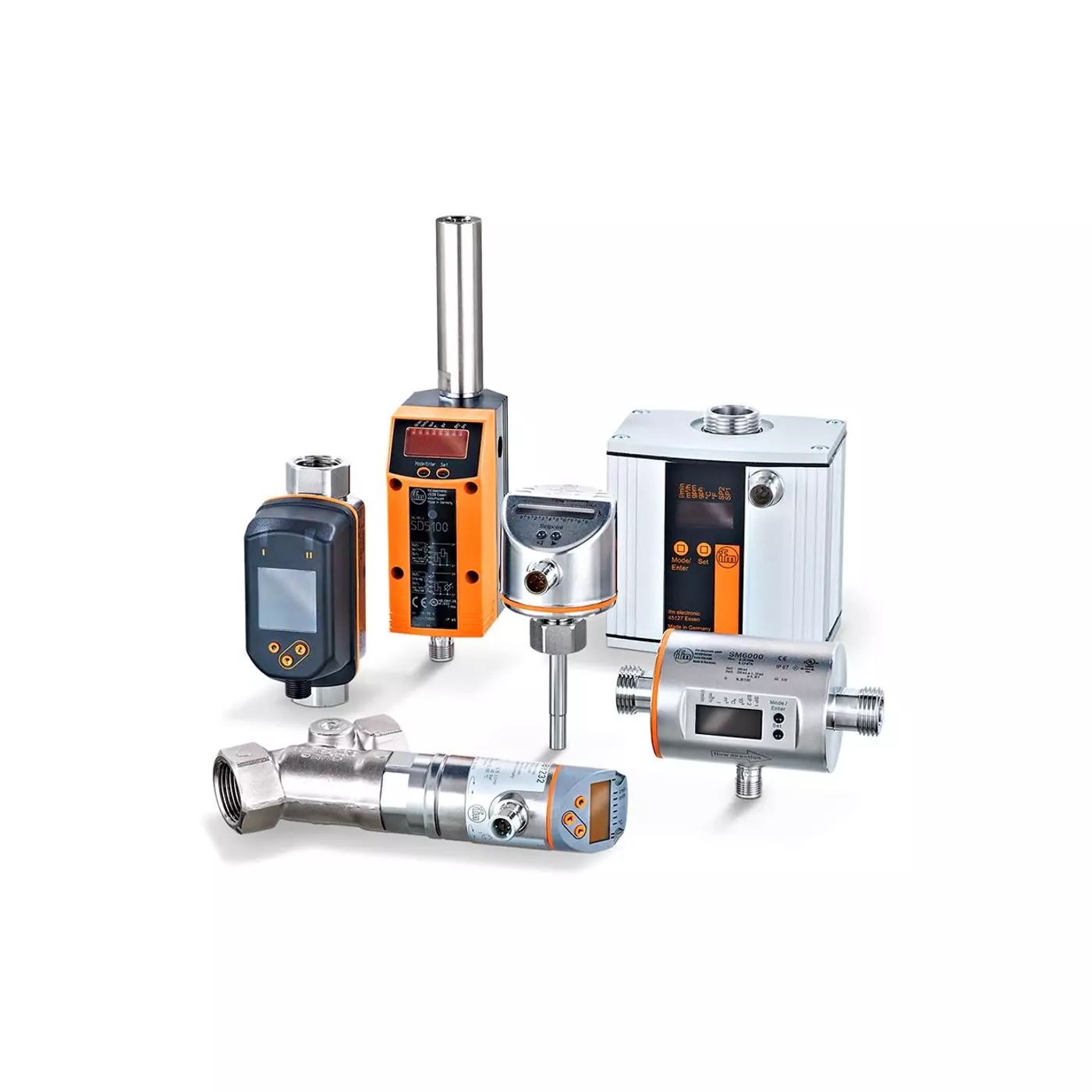

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Vortex flow meters with display
The flow meters of the SV series monitor hydrous media. They detect the two process categories volumetric flow and medium temperature. They are frequently used in cooling circuits, e.g. in steelworks, the automotive industry and in glassmaking. The sensors operate to the vortex measuring principle. Behind a blunt body (or shedder) integrated in the measuring pipe, the flowing medium generates swirling vortices depending on the velocity. These vortices are a reliable indicator of the flow rate. The vortex principle is virtually independent of pressure and temperature fluctuations of the medium. The units feature a bright display to indicate process values. The current flow and temperature are output as an analogue signal, frequency signal, switching output or via IO-Link as an option. Parameter setting is effected via the buttons on the sensor or via IO-Link, e.g. using a USB interface. The LINERECORDER SENSOR software is used to visualise, transfer and archive parameter sets.
Features & Benefits
- Integrated temperature measurement
- Rotatable multi-color display
- The process connection can be rotated for optimum alignment
- Red/green color change for process values
- Can be used for water and water-based media, including deionized water
Additional Notes
| MPN | Measuring range | Materials (wetted parts) | Electrical design | Process connection | Output function |
|---|---|---|---|---|---|
| SV4200 | 1...20 l/min - 0.06...1.2 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | G 1/2 DN8 | normally open / closed; (configurable) |
| SV4204 | 1...20 l/min - 0.06...1.2 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | G 1/2 DN8 | analog | |
| SV4500 | 1...20 l/min - 0.06...1.2 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | Rc 1/2 Internal thread DN8 | normally open / closed; (configurable) |
| SV4504 | 1...20 l/min - 0.06...1.2 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | Rc 1/2 Internal thread DN8 | analog | |
| SV4610 | 16...317 gph - 0.26...5.28 gpm | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | 1/2" NPT DN8 | normally open / closed; (configurable) |
| SV4614 | 16...317 gph - 0.26...5.28 gpm | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | 1/2" NPT DN8 | analog | |
| SV5200 | 2...40 l/min - 0.12...2.4 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | G 1/2 DN10 | normally open / closed; (configurable) |
| SV5204 | 2...40 l/min - 0.12...2.4 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | G 1/2 DN10 | analog | |
| SV5500 | 2...40 l/min - 0.12...2.4 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | Rc 1/2 Internal thread DN10 | normally open / closed; (configurable) |
| SV5504 | 2...40 l/min - 0.12...2.4 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | Rc 1/2 Internal thread DN10 | analog | |
| SV5610 | 32...634 gph - 0.55...10.55 gpm | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | 1/2" NPT DN10 | normally open / closed; (configurable) |
| SV5614 | 32...634 gph - 0.55...10.55 gpm | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | 1/2" NPT DN10 | analog | |
| SV7200 | 5...100 l/min - 0.3...6 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | G 3/4 DN20 | normally open / closed; (configurable) |
| SV7204 | 5...100 l/min - 0.3...6 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | G 3/4 DN20 | analog | |
| SV7500 | 5...100 l/min - 0.3...6 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | Rc 3/4 Internal thread DN20 | normally open / closed; (configurable) |
| SV7504 | 5...100 l/min - 0.3...6 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | Rc 3/4 Internal thread DN20 | analog | |
| SV7610 | 80...1585 gph - 1.3...26.4 gpm | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | 3/4" NPT DN20 | normally open / closed; (configurable) |
| SV7614 | 80...1585 gph - 1.3...26.4 gpm | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | 3/4" NPT DN20 | analog |
