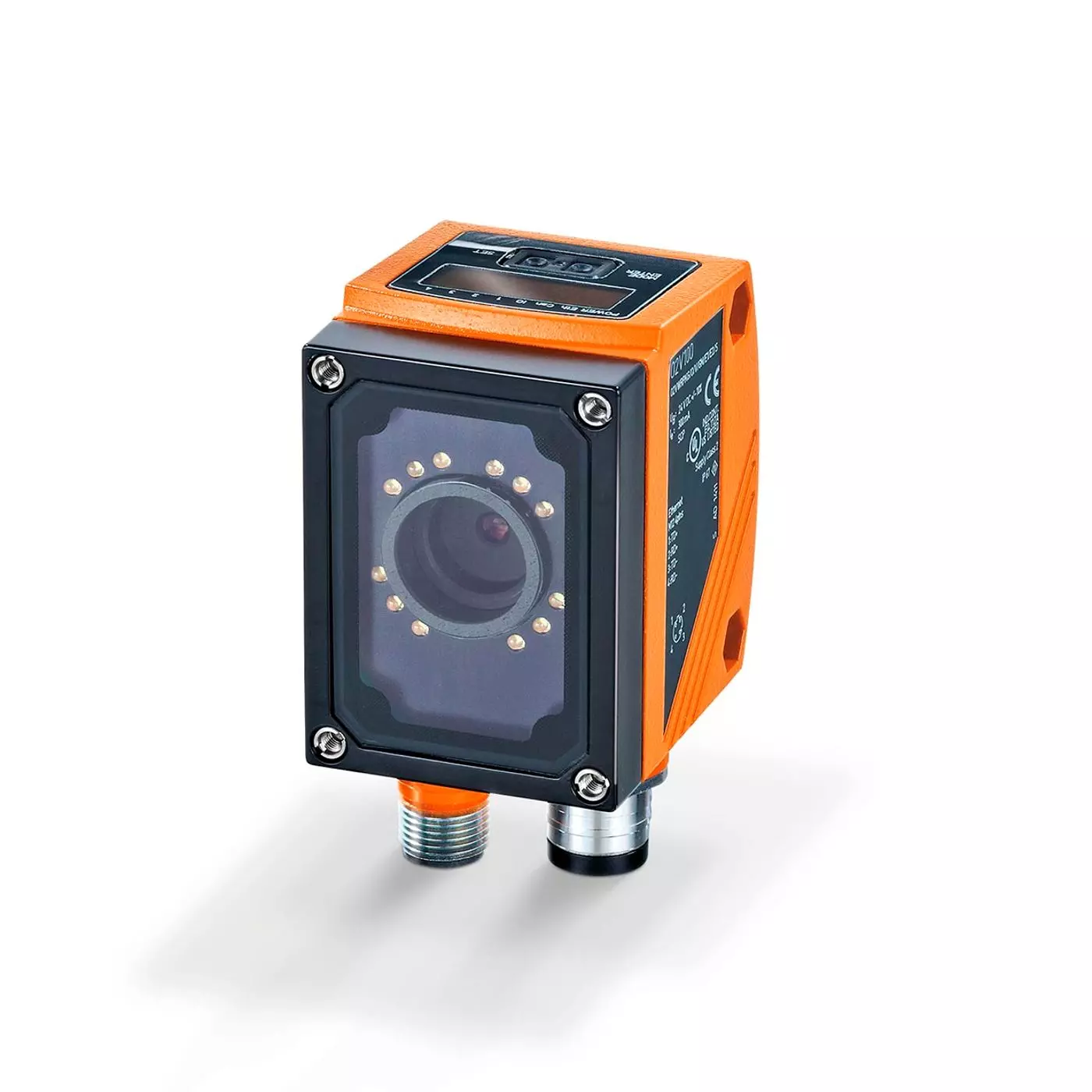

Operating software for 1D/2D code readers
The operating software for O2I multicode readers distinguishes between the operating modes "Configurations", "Monitor" and "Service Report". In the operating mode "Configurations", a new configuration can be created, managed and parameterised. The device can store up to 32 configuration files (= parameter sets). A configuration contains all application-relevant parameters allowing the device to execute the read/verification mode independently. In the Monitor mode the operation of the device is observed. With each triggering the image captured is transferred to the operating program, displayed and evaluated. The respective reading/verification result, the assessment of the code quality and the statistical information are displayed in the result field. The reading/verification results obtained in the monitor mode can be saved locally as evaluation protocol. The service report additionally saves the configuration of the device, the evaluation statistics (good/bad readings) and the last reading/verification results with image.
- User-friendly creation and administration of application-specific configurations
- Real-time monitor mode for set-up and service purposes
- Storage and distribution of service reports
- Application analysis via service report
MPN | Product designation | Language | Version | Data carrier | Number of device connections |
---|---|---|---|---|---|
E2I200 | Operating software | CD-ROM |
SKU | Description | List price | - |
---|---|---|---|
IFM-020010010 | Vision Sensors - Inspection and production control - Contour / pattern match sensors | $0.01 | |
IFM-020010020 | Vision Sensors - Inspection and production control - Pixel counters / blob tool sensors | $0.01 | |
IFM-020010030 | Vision Sensors - Inspection and production control - 1D / 2D code readers | $0.01 | |
IFM-020010035 | Vision Sensors - Inspection and production control - PMD Profiler for object profile checking | $0.01 | |
IFM-020010040 | Vision Sensors - Inspection and production control - Mounting sets | $0.01 | |
IFM-020010050 | Vision Sensors - Inspection and production control - Operating software for pixel counters / blob tool sensors | $0.01 | |
IFM-020010060 | Vision Sensors - Inspection and production control - Operating software for contour / pattern match sensors | $0.01 | |
IFM-020010080 | Vision Sensors - Inspection and production control - OPC server software for 1D/2D code readers | $0.01 |
