Headline
Object inspection

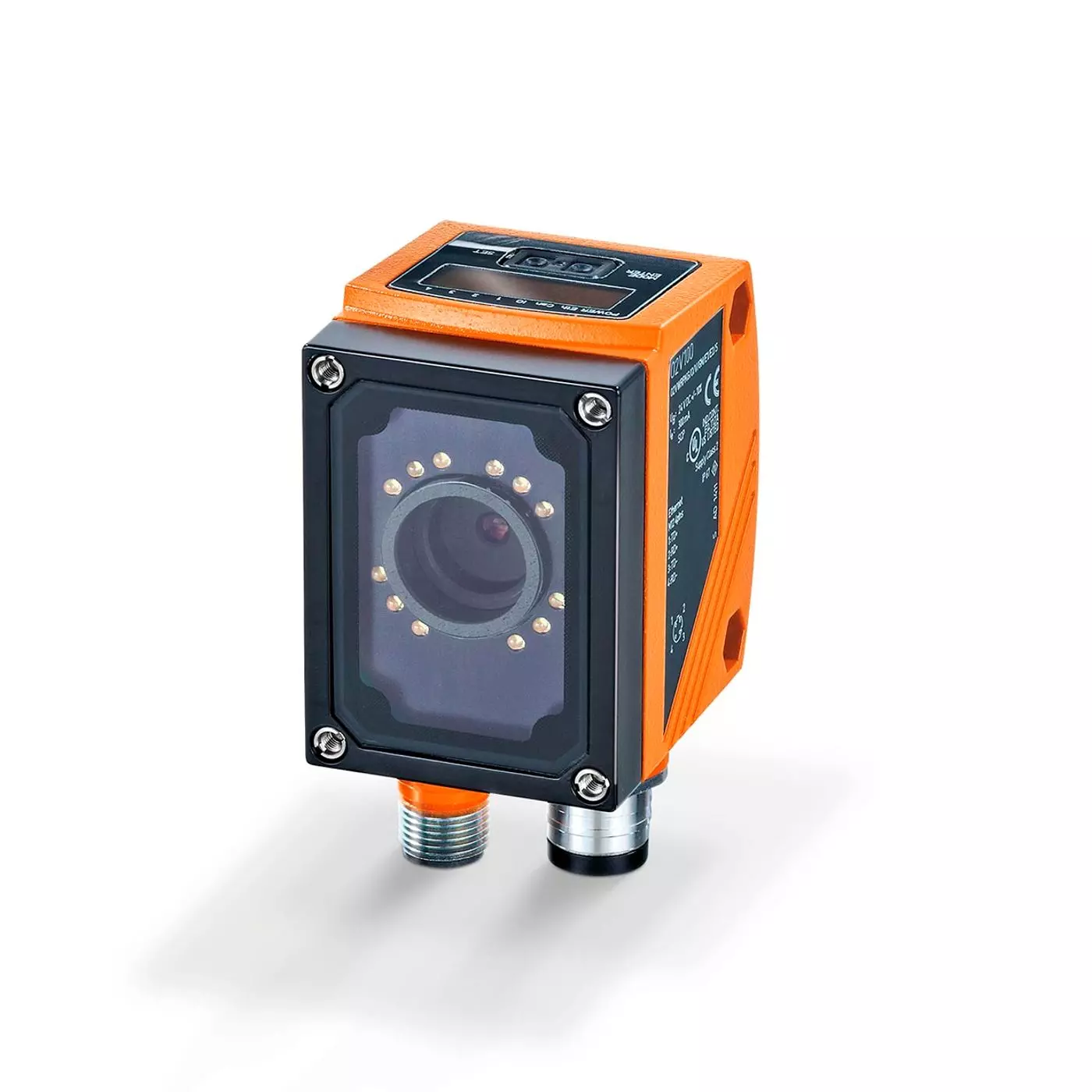

The O2V object inspection sensor is used for presence and completeness checks, position, size and quality control, and sorting tasks. It is ideal for applications where the objects vary in shape, size or shade.
The sensor monitors an object for completeness, shape deviations or colour changes. It uses incident light or back light to detect a grey-scale pattern of the object. On the basis of the determined brightness values the sensor differentiates between the object to be monitored and the background. The device compares the captured image with one or several reference models.
Usually, the corresponding applications are also referred to as blob analysis, pixel counter or feature analysis.
Features & Benefits
- For a variety of inspection applications
- Stand-alone device with integrated illumination
- Compact and robust housing
- Intuitive, user-friendly handling
- Powerful Ethernet interface for data transmission
Additional Notes
| MPN | Product designation | Dimensions | Operating voltage DC | Stromaufnahme max. | Connection |
|---|---|---|---|---|---|
| O2V100 | Object inspection sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2V101 | Object inspection sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2V102 | Object inspection sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2V103 | Object inspection sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2V104 | Object inspection sensor | 60 x 42 x 59 mm | 24 V | 300 mA | M12 Connector |
| O2V105 | Object inspection sensor | 60 x 42 x 59 mm | 24 V | 300 mA | M12 Connector |
| O2V120 | Object inspection sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2V121 | Object inspection sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2V122 | Object inspection sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2V123 | Object inspection sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2V124 | Object inspection sensor | 60 x 42 x 59 mm | 24 V | 300 mA | M12 Connector |
| O2V125 | Object inspection sensor | 60 x 42 x 59 mm | 24 V | 300 mA | M12 Connector |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-020010010 | Vision Sensors - Inspection and production control - Contour / pattern match sensors | $0.01 | |
| IFM-020010030 | Vision Sensors - Inspection and production control - 1D / 2D code readers | $0.01 | |
| IFM-020010035 | Vision Sensors - Inspection and production control - PMD Profiler for object profile checking | $0.01 | |
| IFM-020010040 | Vision Sensors - Inspection and production control - Mounting sets | $0.01 | |
| IFM-020010050 | Vision Sensors - Inspection and production control - Operating software for pixel counters / blob tool sensors | $0.01 | |
| IFM-020010060 | Vision Sensors - Inspection and production control - Operating software for contour / pattern match sensors | $0.01 | |
| IFM-020010070 | Vision Sensors - Inspection and production control - Operating software for 1D/2D code readers | $0.01 | |
| IFM-020010080 | Vision Sensors - Inspection and production control - OPC server software for 1D/2D code readers | $0.01 |
