Object recognition

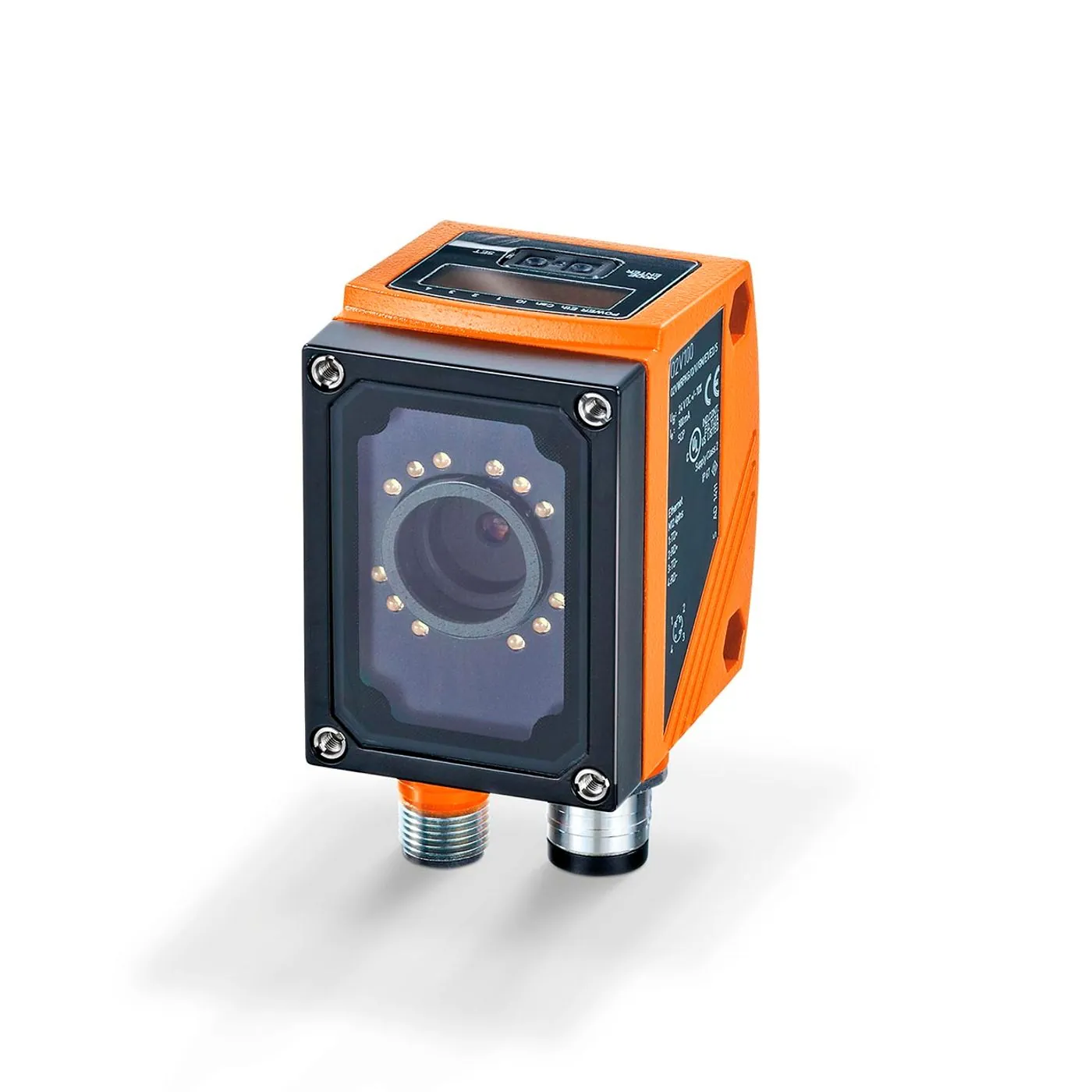

The object recognition sensor O2D with orientation-independent contour verification solves tasks like presence and position monitoring, quality control and sorting and counting tasks. It is ideal in applications where the object’s shape is repeatable and defined.
The sensor detects the contours of an object and compares them with the contours of one or several models in a reference image. The recognition software compares the object with the model, regardless of orientation, and transmits the results (good or bad, position, orientation) to the higher-level PLC. The parameters are set via the buttons on the device or by means of an easy-to-use, step-by-step parameter setting software.
Usually, the corresponding applications are also referred to as contour recognition, pattern recognition, pattern matching, template matching or shape-based matching.
- Orientation-independent contour verification
- Stand-alone device with integrated illumination
- Compact and robust housing
- Intuitive, user-friendly handling
- Powerful Ethernet interface for data transmission
| MPN | Product designation | Dimensions | Operating voltage DC | Stromaufnahme max. | Connection |
|---|---|---|---|---|---|
| O2D220 | Object recognition sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2D222 | Object recognition sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2D224 | Object recognition sensor | 60 x 42 x 59 mm | 24 V | 300 mA | M12 Connector |
| O2D225 | Object recognition sensor | 60 x 42 x 59 mm | 24 V | 300 mA | M12 Connector |
| O2D227 | Object recognition sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| O2D229 | Object recognition sensor | 60 x 42 x 53.5 mm | 24 V | 300 mA | M12 Connector |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-020010020 | Vision Sensors - Inspection and production control - Pixel counters / blob tool sensors | $0.01 | |
| IFM-020010030 | Vision Sensors - Inspection and production control - 1D / 2D code readers | $0.01 | |
| IFM-020010035 | Vision Sensors - Inspection and production control - PMD Profiler for object profile checking | $0.01 | |
| IFM-020010040 | Vision Sensors - Inspection and production control - Mounting sets | $0.01 | |
| IFM-020010050 | Vision Sensors - Inspection and production control - Operating software for pixel counters / blob tool sensors | $0.01 | |
| IFM-020010060 | Vision Sensors - Inspection and production control - Operating software for contour / pattern match sensors | $0.01 | |
| IFM-020010070 | Vision Sensors - Inspection and production control - Operating software for 1D/2D code readers | $0.01 | |
| IFM-020010080 | Vision Sensors - Inspection and production control - OPC server software for 1D/2D code readers | $0.01 |
