Headline

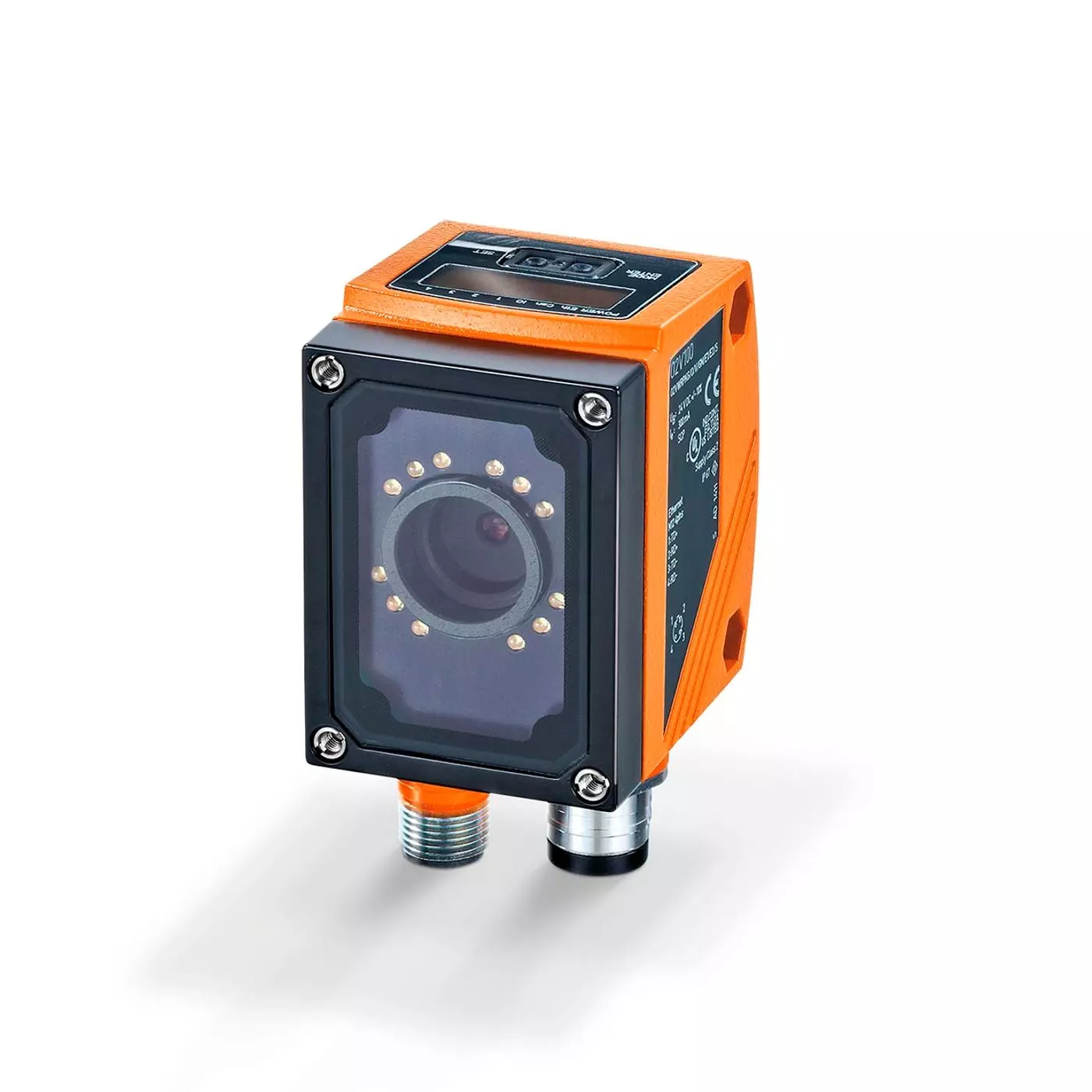

1D/2D code readers
Application areas of the 1D/2D code reader range from product tracking and product control to product identification. The sensor can read 1D and 2D codes regardless of their position. Even if up to 25% of the code information becomes damaged or dirty, it is still read correctly.
Features & Benefits
- Orientation-independent reading of 1D and 2D codes
- Recognition and quality evalution of more than 20 different code types
- Integrated code comparator in the sensor
- Integrated laser pointer for easy alignment
- Configurable integrated quadrant lighting for challenging surfaces
Additional Notes
| MPN | Lens type | Type of light | Image resolution | Protocol | Type of connector |
|---|---|---|---|---|---|
| O2I300 | standard | red light | 640 x 480 px | TCP/IP, UDP, EtherNet/IP | M12 |
| O2I301 | standard | Infrared light | 640 x 480 px | TCP/IP, UDP, EtherNet/IP | M12 |
| O2I302 | Wide angle | red light | 640 x 480 px | TCP/IP, UDP, EtherNet/IP | M12 |
| O2I303 | Wide angle | Infrared light | 640 x 480 px | TCP/IP, UDP, EtherNet/IP | M12 |
| O2I304 | Telephoto lens | red light | 640 x 480 px | TCP/IP, UDP, EtherNet/IP | M12 |
| O2I305 | Telephoto lens | Infrared light | 640 x 480 px | TCP/IP, UDP, EtherNet/IP | M12 |
| O2I500 | standard | red light | 1280 x 960 px | TCP/IP, EtherNet/IP | M12 |
| O2I501 | standard | Infrared light | 1280 x 960 px | TCP/IP, EtherNet/IP | M12 |
| O2I502 | Wide angle | red light | 1280 x 960 px | TCP/IP, EtherNet/IP | M12 |
| O2I503 | Wide angle | Infrared light | 1280 x 960 px | TCP/IP, EtherNet/IP | M12 |
| O2I504 | Telephoto lens | red light | 1280 x 960 px | TCP/IP, EtherNet/IP | M12 |
| O2I505 | Telephoto lens | Infrared light | 1280 x 960 px | TCP/IP, EtherNet/IP | M12 |
| O2I510 | standard | red light | 1280 x 960 px | TCP/IP, PROFINET | M12 |
| O2I511 | standard | Infrared light | 1280 x 960 px | TCP/IP, PROFINET | M12 |
| O2I512 | Wide angle | red light | 1280 x 960 px | TCP/IP, PROFINET | M12 |
| O2I513 | Wide angle | Infrared light | 1280 x 960 px | TCP/IP, PROFINET | M12 |
| O2I514 | Telephoto lens | red light | 1280 x 960 px | TCP/IP, PROFINET | M12 |
| O2I515 | Telephoto lens | Infrared light | 1280 x 960 px | TCP/IP, PROFINET | M12 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-020010010 | Vision Sensors - Inspection and production control - Contour / pattern match sensors | $0.01 | |
| IFM-020010020 | Vision Sensors - Inspection and production control - Pixel counters / blob tool sensors | $0.01 | |
| IFM-020010035 | Vision Sensors - Inspection and production control - PMD Profiler for object profile checking | $0.01 | |
| IFM-020010040 | Vision Sensors - Inspection and production control - Mounting sets | $0.01 | |
| IFM-020010050 | Vision Sensors - Inspection and production control - Operating software for pixel counters / blob tool sensors | $0.01 | |
| IFM-020010060 | Vision Sensors - Inspection and production control - Operating software for contour / pattern match sensors | $0.01 | |
| IFM-020010070 | Vision Sensors - Inspection and production control - Operating software for 1D/2D code readers | $0.01 | |
| IFM-020010080 | Vision Sensors - Inspection and production control - OPC server software for 1D/2D code readers | $0.01 |
