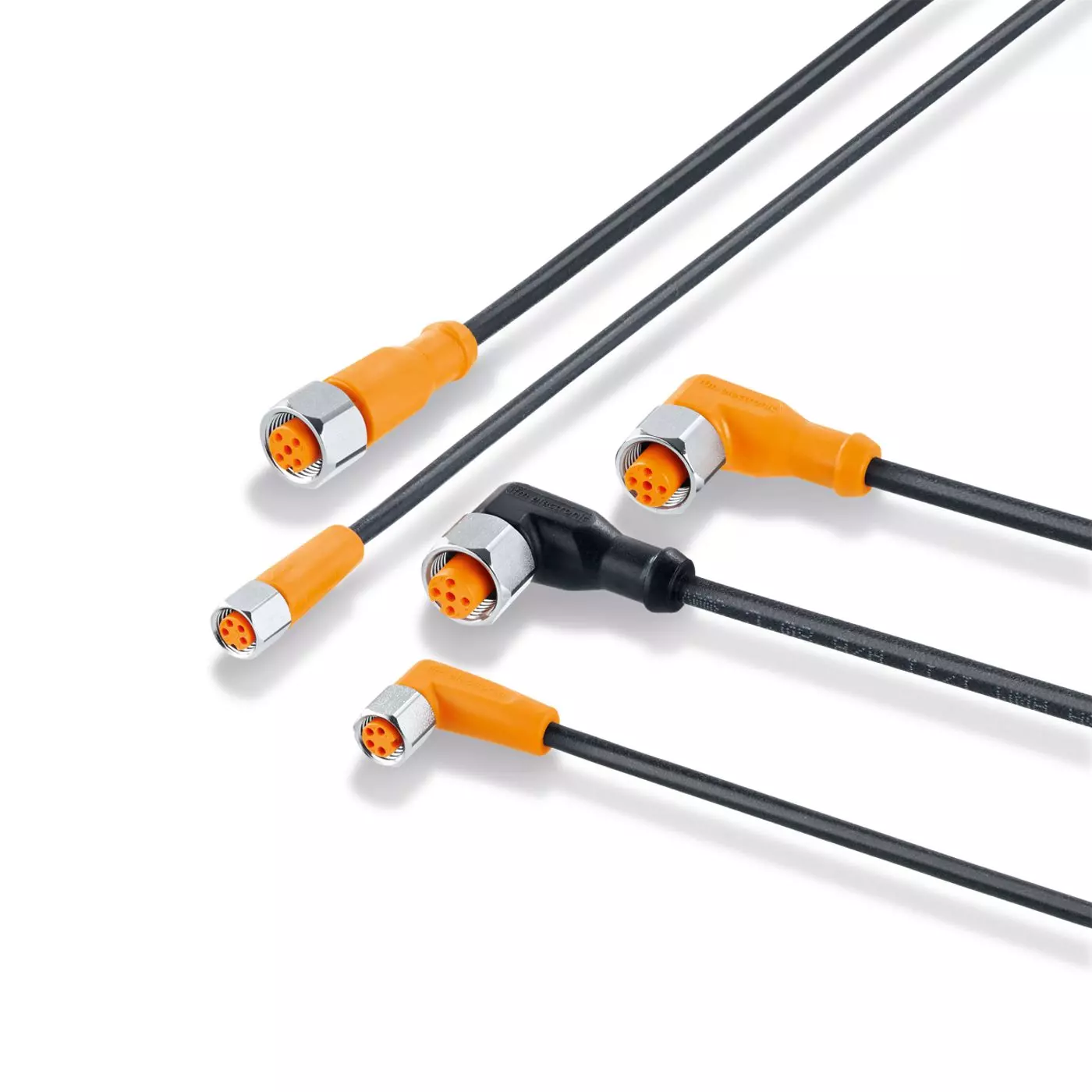

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Device connection cables for control systems
Device connection cables are used to reliably connect control systems, process and dialogue modules. They are suitable for use in mobile machines and especially for panel or control cabinet mounting. Connection cables with AMP connector can be locked and are reverse-polarity protected. All cables are characterised by a wide operating temperature range.
Features & Benefits
- Reliable connection of controllers and display units
- Wide operating temperature range
- For mobile vehicles
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| E3M171 | Connection cable | ||||
| E3M172 | Connection cable | ||||
| E70453 | Connection cable | 1.5 m PVC-Cable; USB Connector | 5 x 0,25 mm² | 5 | |
| EC0710 | Cable with connector | 2.5 m | |||
| EC0711 | Cable with connector | 2.5 m | |||
| EC0720 | Cable with connector | 2.5 m | |||
| EC0721 | Cable with connector | 2.5 m | |||
| EC1520 | Cable with connector | 1.2 m; AMP Connector | 1 mm² | ||
| EC1521 | Cable with connector | 1.2 m; AMP Connector | 1 mm² | ||
| EC1522 | Cable with connector | 1.2 m; AMP Connector | 1 mm² | ||
| EC1523 | Cable with connector | 1.2 m; AMP Connector | 1 mm² | ||
| EC1524 | Cable with connector | 1.2 m; AMP Connector | 1 mm² | ||
| EC2046 | Cable with connector | 2.5 m; AMP Connector | 1 mm² | ||
| EC2058 | USB-cable connection | 1.8 m | |||
| EC2077 | Cable with connector | 2 m | |||
| EC2081 | Cable with connector | 2 m | |||
| EC2084 | Cable with connector | 1.2 m; AMP Connector | 1 mm² | ||
| EC2086 | Cable with connector | 1.2 m; AMP Connector | 1 mm² | ||
| EC2097 | Cable with connector | 2.5 m; AMP Connector | 1 mm² | ||
| EC2099 | Connection cable | 1.5 m PVC-Cable; M12 / USB Connector | 5 x 0,25 mm² | 5 | |
| EC3146 | Cable with connector | 2 m PUR-Cable | 10 x 0,5 mm² | 10 | |
| EC9206 | Connection cable | 1.5 m | 1 x 0,75 mm² / 4 x 0,50 mm² | 5 | |
| EC9207 | Connection cable | 1.5 m | 5 x 0,75 mm² | 5 | |
| EC9208 | Connection cable | 1.5 m | 2 x 0,50 mm² / 4 x 0,75 mm² | 6 | |
| EC9209 | Connection cable | 1.5 m | 2 x 0,50 mm² / 2 x 0,75 mm² | 4 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-090050010 | Cables and Connections - Mobile vehicle - Female cordsets | $0.01 | |
| IFM-090050020 | Cables and Connections - Mobile vehicle - Patchcords for CAN bus | $0.01 | |
| IFM-090050030 | Cables and Connections - Mobile vehicle - Female cordsets for CAN bus | $0.01 | |
| IFM-090050040 | Cables and Connections - Mobile vehicle - Male cordsets for CAN bus | $0.01 | |
| IFM-090050060 | Cables and Connections - Mobile vehicle - Programming and communication cordsets | $0.01 | |
| IFM-090050070 | Cables and Connections - Mobile vehicle - Patchcords for mobile cameras | $0.01 | |
| IFM-090050090 | Cables and Connections - Mobile vehicle - Y-splitters | $0.01 |
