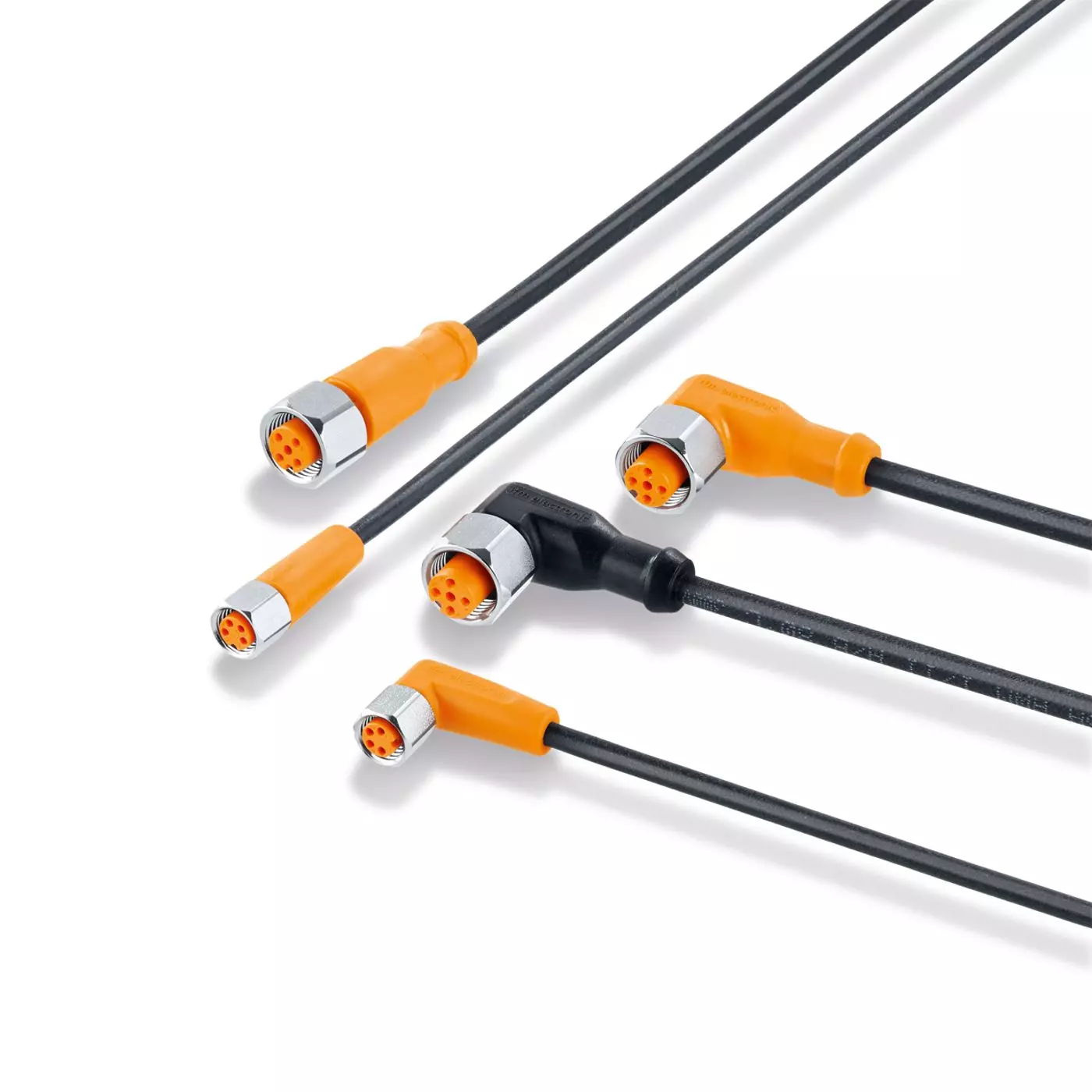

Pictures may not be actual SKU

Cables and Connections - Mobile vehicle - Patchcords for CAN bus

Name: Cables and Connections - Mobile vehicle - Patchcords for CAN bus
Brand: ifm
SKU: IFM-090050020
Availability: InStock

IFM | ifm

090 | Connection Technology

Cables and Connections - Mobile vehicle

IFM-090050020

Description

IFM's 090.050.020 group of Connection Technology - Patchcords for CAN bus for mobile vehicles

Base Model

Collection

090

Group

050

Options

020

Additional Options

Available to Order

Ships from PA

Typically ships within [ 2 ] days

24/7 Sales & Support 484-544-0506

Quantity:

− +

Get a Quote

Overview
SKU List

Headline

Jumper cables for CAN bus

The CAN bus M12 jumper cables ensure reliable connection of all CAN bus participants.

Thanks to their high protection rating and extended temperature range, these cables are ideal for use in mobile machines.

Features & Benefits

Reliable connection technology for CAN bus participants
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Shielded PUR cable

Additional Notes

MPN	Product designation	Connection	Cable structure	Number of cores
E11591	Connection cable	0.3 m PUR-Cable; M12 Connector	2 x 0,25 mm² (19 x Ø 0,13 mm) / 2 x 0,34 mm² (19 x Ø 0,16 mm) / 1 x 0,34 mm² (19 x Ø 0,16 mm)	5
E11592	Connection cable	1 m PUR-Cable; M12 Connector	2 x 0,25 mm² (19 x Ø 0,13 mm) / 2 x 0,34 mm² (19 x Ø 0,16 mm) / 1 x 0,34 mm² (19 x Ø 0,16 mm)	5
E11593	Connection cable	2 m PUR-Cable; M12 Connector	2 x 0,25 mm² (19 x Ø 0,13 mm) / 2 x 0,34 mm² (19 x Ø 0,16 mm) / 1 x 0,34 mm² (19 x Ø 0,16 mm)	5
E11594	Connection cable	5 m PUR-Cable; M12 Connector	2 x 0,25 mm² (19 x Ø 0,13 mm) / 2 x 0,34 mm² (19 x Ø 0,16 mm) / 1 x 0,34 mm² (19 x Ø 0,16 mm)	5
E11595	Connection cable	10 m PUR-Cable; M12 Connector	2 x 0,25 mm² (19 x Ø 0,13 mm) / 2 x 0,34 mm² (19 x Ø 0,16 mm) / 1 x 0,34 mm² (19 x Ø 0,16 mm)	5
E43332	Connection cable	0.15 m PUR / PVC-Cable; M12 Connector	4 x 0,25 mm²	4
EC0451	Connection cable	0.5 m PVC-Cable	4 x 0,5 mm²	4
EC0452	Connection cable	0.1 m; M12 Connector	5 x 0,34 mm²	5
EC0453	Connection cable	0.5 m PVC-Cable	4 x 0,5 mm²	4
EC0454	Connection cable	5 m; M12 Connector	5 x 0,34 mm²	5
EC0455	Connection cable	5 m; M12 Connector	5 x 0,34 mm²	5
EC0458	Connection cable	10 m; M12 Connector	5 x 0,34 mm²	5
EVC947	Connection cable	1 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC948	Connection cable	2 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC949	Connection cable	5 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC950	Connection cable	1 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC951	Connection cable	2 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC952	Connection cable	5 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC953	Connection cable	1 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC954	Connection cable	2 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC955	Connection cable	5 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC956	Connection cable	10 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC962	Connection cable	2 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC963	Connection cable	5 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC964	Connection cable	10 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC965	Connection cable	2 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC966	Connection cable	5 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVC967	Connection cable	10 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVCA07	Connection cable	0.3 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
EVCA08	Connection cable	0.2 m PUR-Cable; M12 Connector	2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm)	5
