Headline

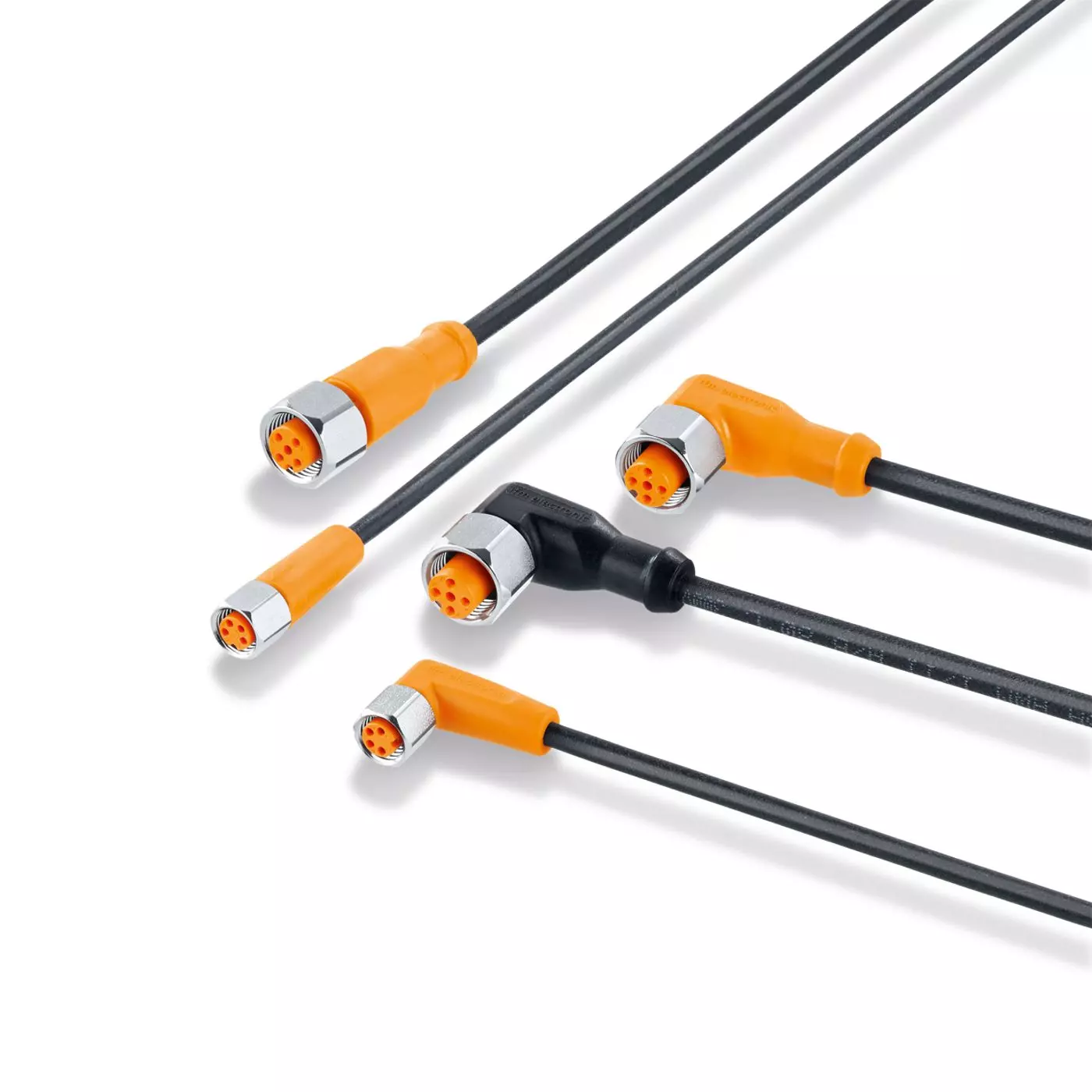

Connection cables with socket for CAN bus
The CAN bus M12 sockets ensure reliable connection of all CAN bus participants.
Thanks to their high protection rating and extended temperature range, these sockets are ideal for use in mobile machines.
Features & Benefits
- Reliable connection technology for CAN bus participants
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Shielded PUR cable
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| E11589 | female terminating resistor | M12 Connector | |||
| E11596 | Female cordset | 2 m PUR-Cable; M12 Connector | 2 x 0,25 mm² (19 x Ø 0,13 mm) / 2 x 0,34 mm² (19 x Ø 0,16 mm) / 1 x 0,34 mm² (19 x Ø 0,16 mm) | 5 | |
| E11597 | Female cordset | 5 m PUR-Cable; M12 Connector | 2 x 0,25 mm² (19 x Ø 0,13 mm) / 2 x 0,34 mm² (19 x Ø 0,16 mm) / 1 x 0,34 mm² (19 x Ø 0,16 mm) | 5 | |
| EVC492 | Female cordset | 5 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVC683 | Female cordset | 10 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVC939 | Female cordset | 2 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC940 | Female cordset | 5 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC941 | Female cordset | 2 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC942 | Female cordset | 5 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC957 | Female cordset | 2 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC958 | Female cordset | 5 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC959 | Female cordset | 2 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC960 | Female cordset | 5 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC961 | Female cordset | 10 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 |
