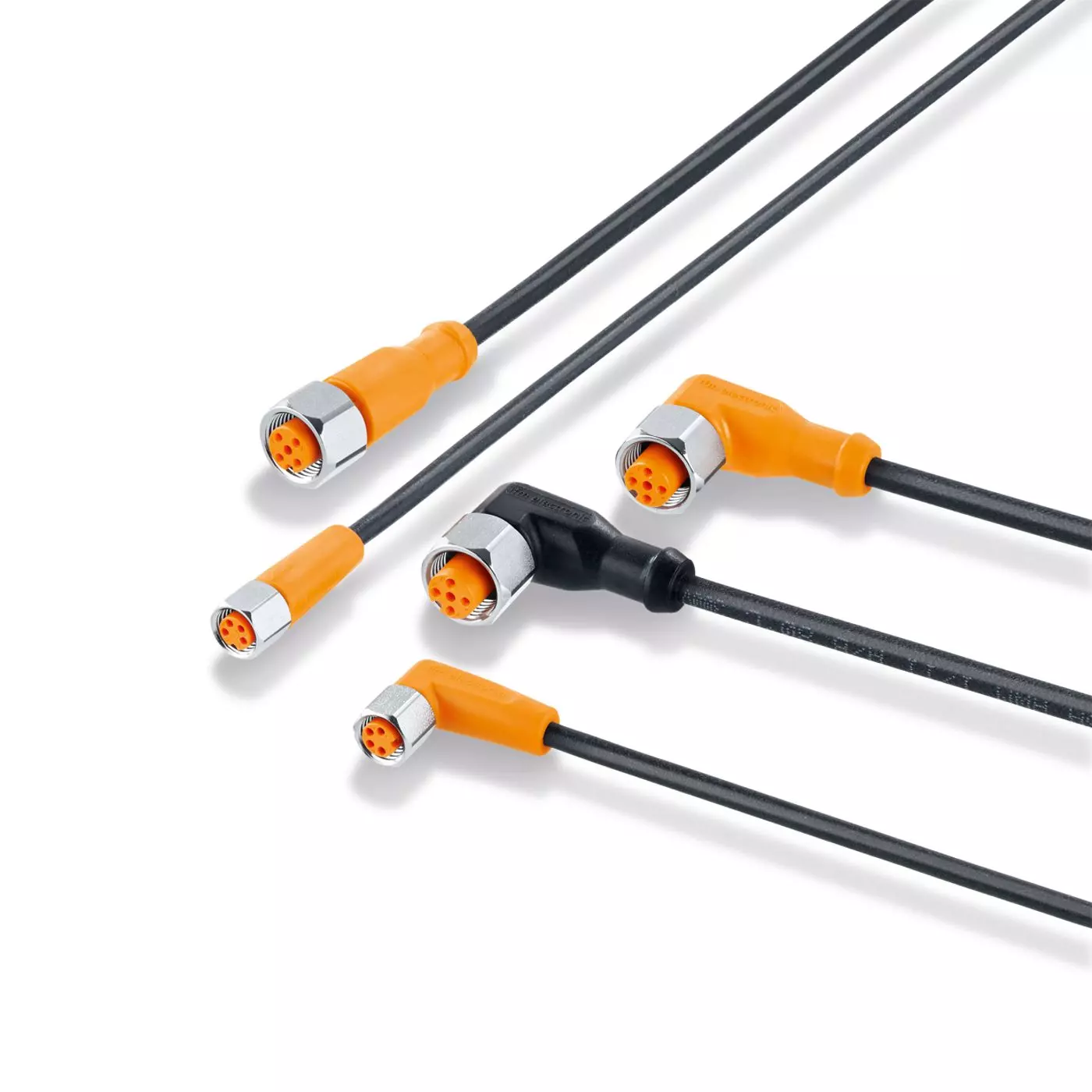

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Connection cables with plug for CAN bus
The CAN bus M12 cable plugs ensure reliable connection of all CAN bus participants.
Thanks to their high protection rating and extended temperature range, these cable plugs are ideal for use in mobile machines.
Features & Benefits
- Reliable connection technology for CAN bus participants
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Shielded PUR cable
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| E11590 | Terminating resistor plug | M12 Connector | |||
| E12215 | Male cordsets | 6 m PVC-Cable; M12 Connector | 2 x 0,34 mm² / 2 x 0,25 mm² | 4 | |
| E12346 | Male cordsets | 1.5 m PVC-Cable; M12 Connector | 2 x 0,34 mm² / 2 x 0,25 mm² | 4 | |
| E12347 | Male cordsets | 10 m PVC-Cable; M12 Connector | 2 x 0,34 mm² / 2 x 0,25 mm² | 4 | |
| E12575 | Terminating resistor plug | DEUTSCH connector Connector | |||
| EVC943 | Male cordsets | 2 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC944 | Male cordsets | 5 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC945 | Male cordsets | 2 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC946 | Male cordsets | 5 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-090050010 | Cables and Connections - Mobile vehicle - Female cordsets | $0.01 | |
| IFM-090050020 | Cables and Connections - Mobile vehicle - Patchcords for CAN bus | $0.01 | |
| IFM-090050030 | Cables and Connections - Mobile vehicle - Female cordsets for CAN bus | $0.01 | |
| IFM-090050050 | Cables and Connections - Mobile vehicle - Device connection cordsets for control systems | $0.01 | |
| IFM-090050060 | Cables and Connections - Mobile vehicle - Programming and communication cordsets | $0.01 | |
| IFM-090050070 | Cables and Connections - Mobile vehicle - Patchcords for mobile cameras | $0.01 | |
| IFM-090050090 | Cables and Connections - Mobile vehicle - Y-splitters | $0.01 |
