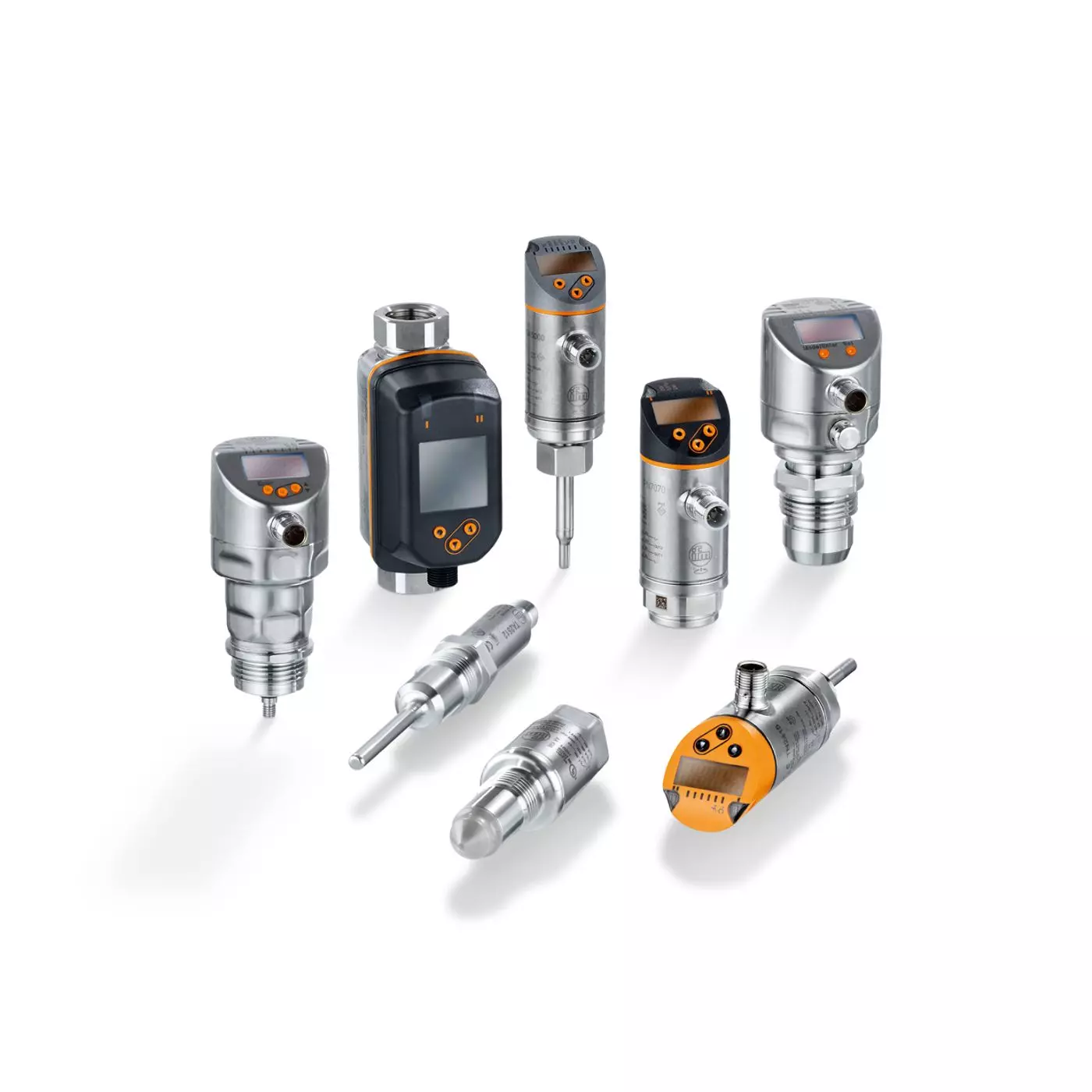

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Vortex flow meters with display
The flow meters of the SV series monitor hydrous media. They detect the two process categories volumetric flow and medium temperature. They are frequently used in cooling circuits, e.g. in steelworks, the automotive industry and in glassmaking. The sensors operate to the vortex measuring principle. Behind a blunt body (or shedder) integrated in the measuring pipe, the flowing medium generates swirling vortices depending on the velocity. These vortices are a reliable indicator of the flow rate. The vortex principle is virtually independent of pressure and temperature fluctuations of the medium. The units feature a bright display to indicate process values. The current flow and temperature are output as an analogue signal, frequency signal, switching output or via IO-Link as an option. Parameter setting is effected via the buttons on the sensor. The sensor can also be configured via IO-Link, e.g. using a USB interface. The LINERECORDER SENSOR software is used to visualise, transfer and archive parameter sets.
Features & Benefits
- Reliable detection of flow and medium temperature
- With analog, switching or frequency outputs
- Display can be rotated for optimum alignment
- Clearly visible LED display with red/green color change
- Suitable for water, deionized water and cooling water
Additional Notes
| MPN | Process connection | Measuring range | Materials (wetted parts) | Electrical design | Output function |
|---|---|---|---|---|---|
| SV4200 | G 1/2 DN8 | 1...20 l/min / 0.06...1.2 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | normally open / closed; (configurable) |
| SV4500 | Rc 1/2 Internal thread DN8 | 1...20 l/min / 0.06...1.2 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | normally open / closed; (configurable) |
| SV4610 | 1/2" NPT DN8 | 16...317 gph / 0.26...5.28 gpm | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | normally open / closed; (configurable) |
| SV5200 | G 1/2 DN10 | 2...40 l/min / 0.12...2.4 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | normally open / closed; (configurable) |
| SV5500 | Rc 1/2 Internal thread DN10 | 2...40 l/min / 0.12...2.4 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | normally open / closed; (configurable) |
| SV5610 | 1/2" NPT DN10 | 32...634 gph / 0.55...10.55 gpm | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | normally open / closed; (configurable) |
| SV7200 | G 3/4 DN20 | 5...100 l/min / 0.3...6 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | normally open / closed; (configurable) |
| SV7500 | Rc 3/4 Internal thread DN20 | 5...100 l/min / 0.3...6 m³/h | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | normally open / closed; (configurable) |
| SV7610 | 3/4" NPT DN20 | 80...1585 gph / 1.3...26.4 gpm | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM | PNP/NPN | normally open / closed; (configurable) |
