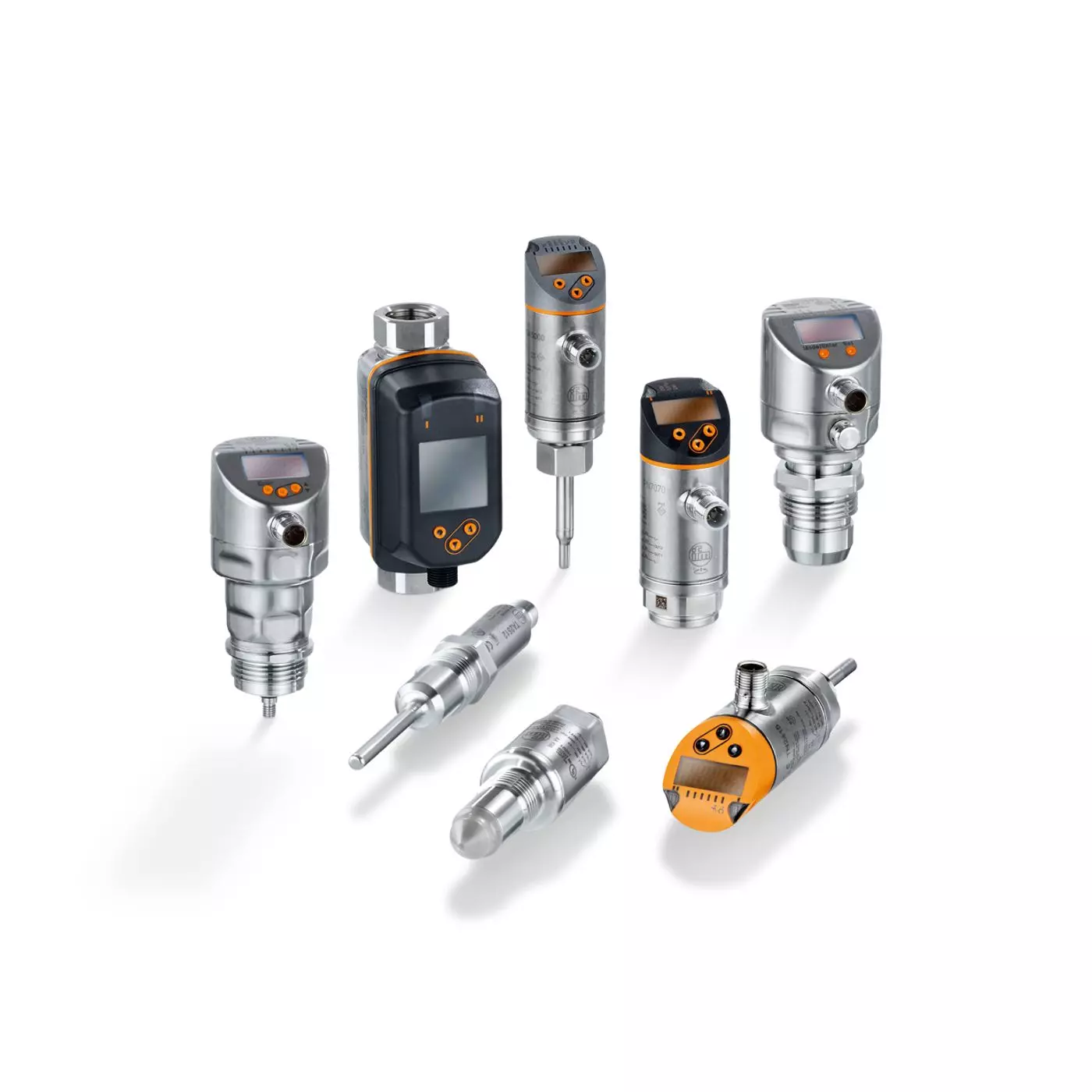

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Pressure sensors with two switching outputs
The pressure sensors of the PP series reliably detect the system pressure in machines, plants and hydraulic power units of industrial and mobile applications. The compact housing ensures flexible integration even where space is limited. The robust units offer high shock and vibration resistance and ensure wear-free operation over millions of pressure cycles. The high repeatability and minimal conformity errors of the switch points ensure good long-term stability. The sensors have a high protection rating and a wide operating temperature range. Application parameters are established using an external programming device. Some versions can be configured via IO-Link, e.g. using a USB interface. In this case, the LINERECORDER SENSOR software ensures visualisation, transferability of configurations and archiving of parameter sets.
Features & Benefits
- For the reliable detection of the system pressure in mobile machines
- Two switching outputs, one of which can be configured as diagnostic output
- High shock and vibration resistance
- Excellent EMC resistance
- User-friendly communication via IO-Link
Additional Notes
| MPN | Measuring range | Process connection | Output signal | Electrical design | Medium temperature |
|---|---|---|---|---|---|
| PP7550 | 0...400 bar - 0...5800 psi - 0...40 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
| PP7551 | 0...250 bar - 0...3625 psi - 0...25 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
| PP7552 | 0...100 bar - 0...1450 psi - 0...10 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
| PP7553 | 0...25 bar - 0...363 psi - 0...2.5 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
| PP7554 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
| PP7556 | 0...2.5 bar - 0...2500 mbar - 0...36.3 psi - 0...250 kPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
| PV7000 | 0...400 bar - 0...5800 psi - 0...40 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7001 | 0...250 bar - 0...3626 psi - 0...25 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7002 | 0...100 bar - 0...1450 psi - 0...10 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7003 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7004 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7023 | 0...60 bar / 0...870 psi / 0...6 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7060 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7600 | 0...400 bar / 0...5800 psi / 0...40 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7601 | 0...250 bar / 0...3626 psi / 0...25 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7602 | 0...100 bar / 0...1450 psi / 0...10 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7603 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7604 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
| PV7623 | 0...60 bar / 0...870 psi / 0...6 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-055060010010 | IO-Link - IO-Link process sensors - IO-Link - Pressure sensors / IO-Link - Sensors with digital display for industrial applications, Type PN and PE | $0.01 | |
| IFM-055060010020 | IO-Link - IO-Link process sensors - IO-Link - Pressure sensors / IO-Link - Pressure sensors for hazardous areas | $0.01 | |
| IFM-055060010030 | IO-Link - IO-Link process sensors - IO-Link - Pressure sensors / IO-Link - Sensors with display for sanitary applications, Type PI | $0.01 | |
| IFM-055060010040 | IO-Link - IO-Link process sensors - IO-Link - Pressure sensors / IO-Link - Sensors for high temperature with integrated triclamp for sanitary applications, Type PI | $0.01 | |
| IFM-055060010060 | IO-Link - IO-Link process sensors - IO-Link - Pressure sensors / IO-Link - Sensors with display for pneumatic applications, Type PQ | $0.01 | |
| IFM-055060020010 | IO-Link - IO-Link process sensors - IO-Link flow sensors - flow meters / IO-Link - Vortex flowmeter with display, Type SV | $0.01 | |
| IFM-055060020020 | IO-Link - IO-Link process sensors - IO-Link flow sensors - flow meters / IO-Link - Mechatronic flowmeters with display, Type SB | $0.01 | |
| IFM-055060020030 | IO-Link - IO-Link process sensors - IO-Link flow sensors - flow meters / IO-Link - Magnetic-inductive flowmeters, Type SM | $0.01 | |
| IFM-055060020040 | IO-Link - IO-Link process sensors - IO-Link flow sensors - flow meters / IO-Link - Thermal flow switches, Type SI | $0.01 | |
| IFM-055060020050 | IO-Link - IO-Link process sensors - IO-Link flow sensors - flow meters / IO-Link - Thermal flow sensors with display, Type SA | $0.01 | |
| IFM-055060020060 | IO-Link - IO-Link process sensors - IO-Link flow sensors - flow meters / IO-Link - Systems for the consumption measurement of compressed air & industrial gases | $0.01 | |
| IFM-055060030005 | IO-Link - IO-Link process sensors - IO-Link - Level sensors / IO-Link - Capacitive non-contact level measurement | $0.01 | |
| IFM-055060030010 | IO-Link - IO-Link process sensors - IO-Link - Level sensors / IO-Link - Guided wave radar probes, Type LR | $0.01 | |
| IFM-055060030020 | IO-Link - IO-Link process sensors - IO-Link - Level sensors / IO-Link - Guided wave radar probes for sanitary applications, Type LR | $0.01 | |
| IFM-055060030030 | IO-Link - IO-Link process sensors - IO-Link - Level sensors / IO-Link - Residue suppression level switches for hazardous areas, Type LM | $0.01 |
