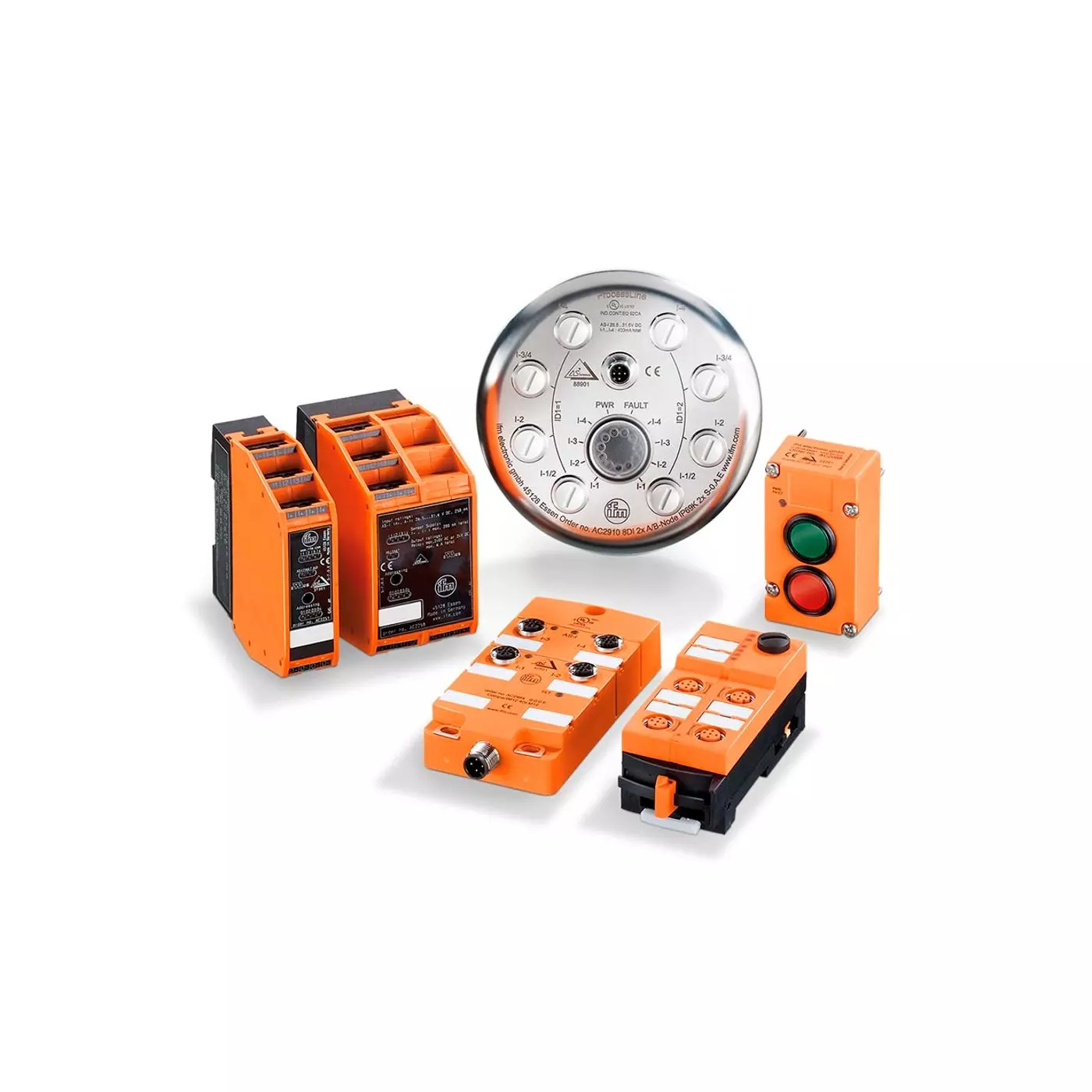

Illuminated pushbutton modules
The illuminated AS-i pushbutton modules can be used as a start and stop button on machines, as enable switches and for opening and closing gates. The pushbuttons have a tactile press point. Powerful LEDs as optical feedback signal that the module has been activated. They can also be controlled via AS-Interface. The upper and lower parts of the modules are mounted with screws. Connection of the two-wire flat cable by means of insulation displacement technology ensures reverse polarity protection. Their high protection rating makes the modules ideally suited for field use in harsh industrial environments. Two light indicators and two pushbuttons are integrated in the space-saving housing. Different colour inserts and modules with key-operated switches are available.
- Two digital inputs on pushbuttons and two outputs on LED indicators, free color selection
- Up to 62 illuminated pushbutton modules per AS-i network can be connected
- Power and communication error indication
- No additional power supply required
- Quick and easy mounting
| MPN | Product designation | Number of digital inputs | Number of analog inputs | Sensor supply of the inputs | Number of digital outputs |
|---|---|---|---|---|---|
| AC2386 | AS-i illuminated pushbutton module | AS-i | |||
| AC2388 | AS-i illuminated pushbutton module | AS-i | |||
| AC2396 | AS-i illuminated pushbutton module | AS-i | |||
| AC2398 | AS-i illuminated pushbutton module | AS-i |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-050030010 | Industrial Communication - Actuator-Sensor interface I/O modules - I/O modules for field applications with quick mounting technology | $0.01 | |
| IFM-050030020 | Industrial Communication - Actuator-Sensor interface I/O modules - I/O modules for field applications | $0.01 | |
| IFM-050030030 | Industrial Communication - Actuator-Sensor interface I/O modules - I/O modules for harsh environment field applications | $0.01 | |
| IFM-050030040 | Industrial Communication - Actuator-Sensor interface I/O modules - Universal modules for field applications | $0.01 | |
| IFM-050030060 | Industrial Communication - Actuator-Sensor interface I/O modules - IP69K stainless steel modules for use in high pressure cleaning applications | $0.01 | |
| IFM-050030070 | Industrial Communication - Actuator-Sensor interface I/O modules - I/O modules for control cabinet installations | $0.01 | |
| IFM-050030080 | Industrial Communication - Actuator-Sensor interface I/O modules - PCB solutions | $0.01 |
