ClassicLine field modules with screw mounting technology

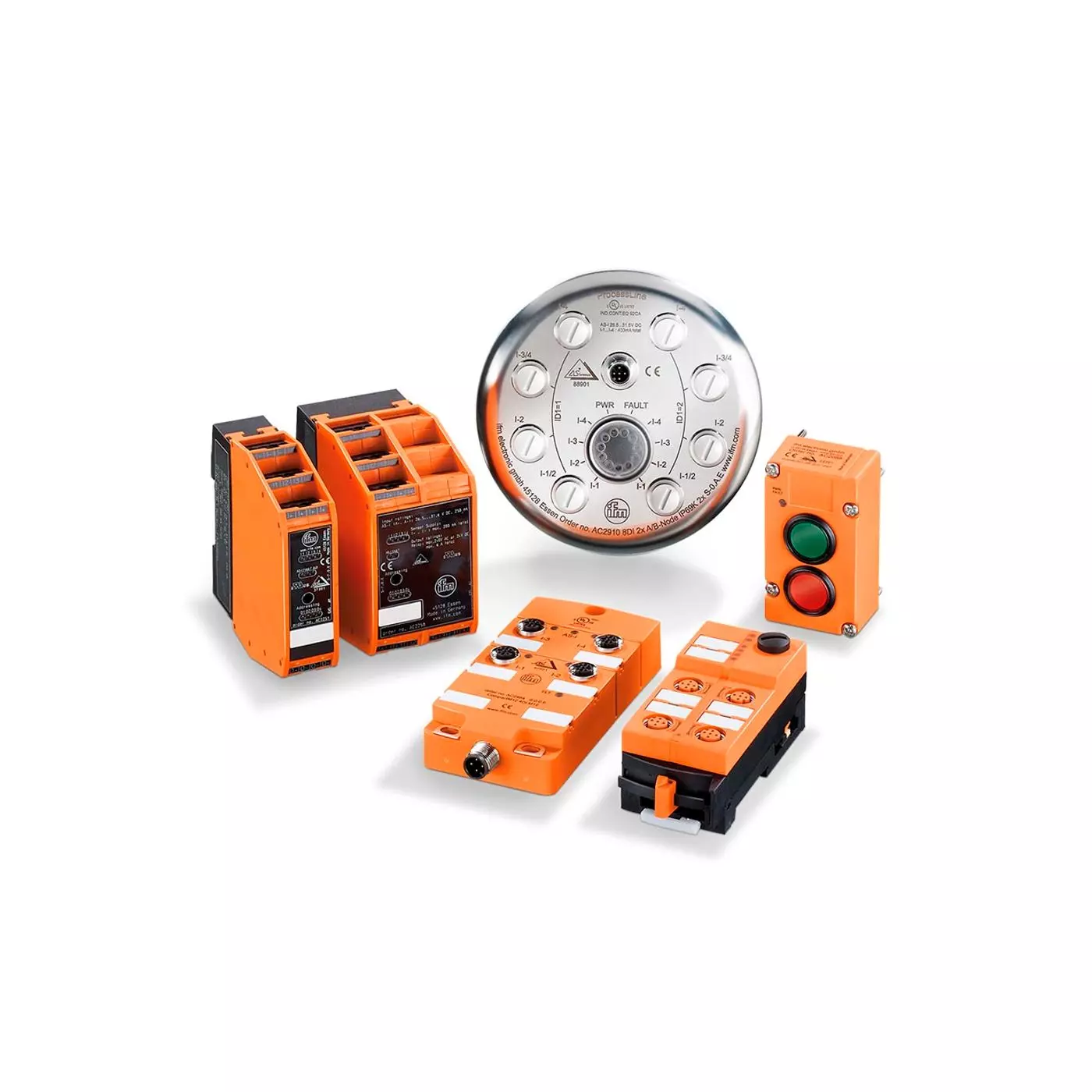

The decentralised AS-Interface I/O modules of the ClassicLine series with screw mounting technology connect binary and analogue sensors and actuators to the gateway or PLC via AS-Interface. The upper and lower parts of the modules are mounted using four screws. Connection of the two-wire flat cable by means of insulation displacement technology ensures reverse polarity protection. Thanks to their high luminosity, the LEDs for operation, function and fault indication are particularly easy to see. The ifm product range features modules with digital and analogue inputs and outputs. Sensors and actuators are connected via proven, robust M12 connectors. Their high protection rating makes the modules ideally suited for field use in harsh industrial environments.
- 2 times 2 digital inputs for switching status and 2 outputs supplied from AS-i
- Four analog inputs, four analog outputs or 4 Pt100 channels selectable
- Sensor and actuator power can be supplied via external voltage
- High protection rating for direct field installation
SKU | Description | List price | - |
---|---|---|---|
IFM-050030010 | Industrial Communication - Actuator-Sensor interface I/O modules - I/O modules for field applications with quick mounting technology | $0.01 | |
IFM-050030030 | Industrial Communication - Actuator-Sensor interface I/O modules - I/O modules for harsh environment field applications | $0.01 | |
IFM-050030040 | Industrial Communication - Actuator-Sensor interface I/O modules - Universal modules for field applications | $0.01 | |
IFM-050030050 | Industrial Communication - Actuator-Sensor interface I/O modules - Illuminated pushbutton modules | $0.01 | |
IFM-050030060 | Industrial Communication - Actuator-Sensor interface I/O modules - IP69K stainless steel modules for use in high pressure cleaning applications | $0.01 | |
IFM-050030070 | Industrial Communication - Actuator-Sensor interface I/O modules - I/O modules for control cabinet installations | $0.01 | |
IFM-050030080 | Industrial Communication - Actuator-Sensor interface I/O modules - PCB solutions | $0.01 |
