CompactLine field modules with screw mounting technology

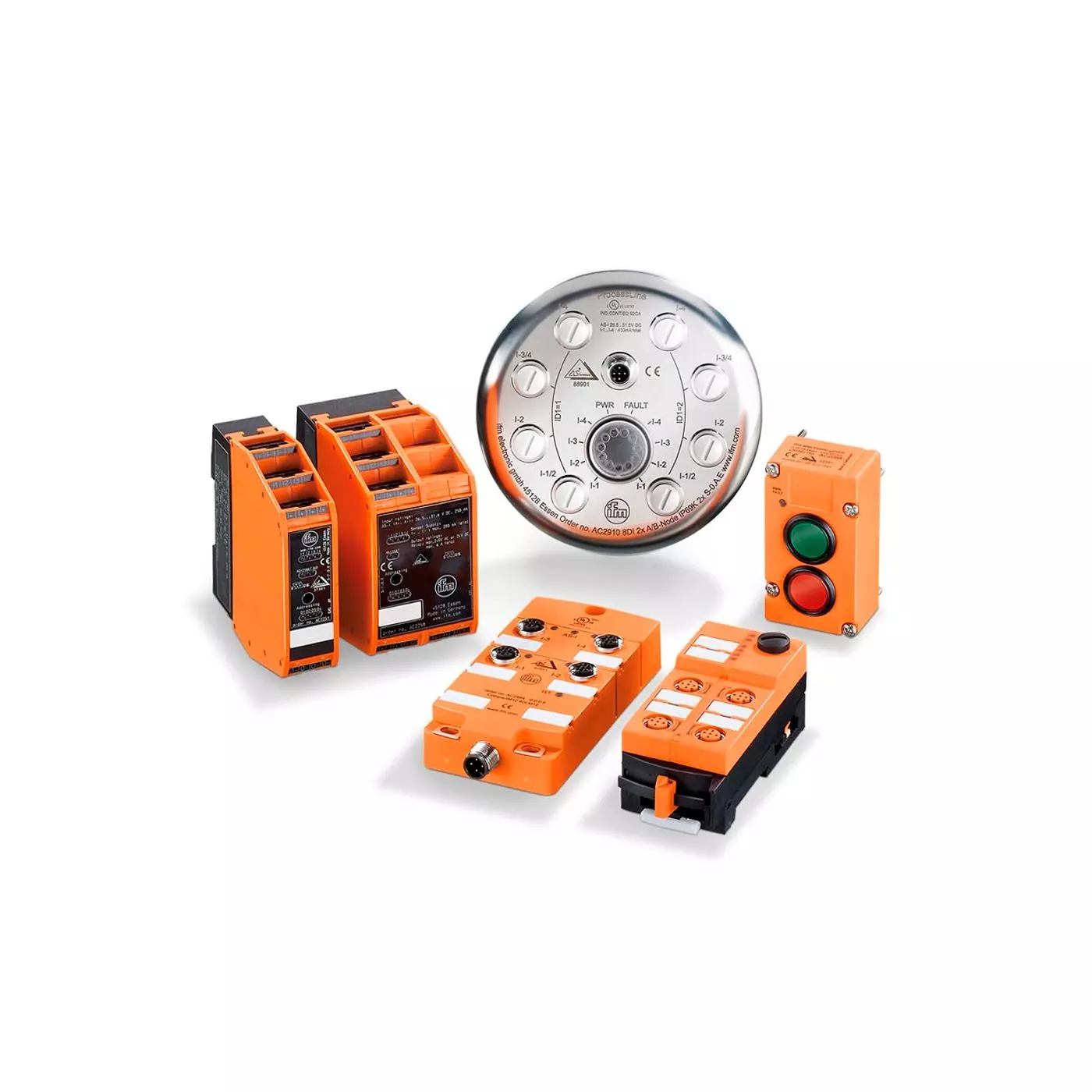

The decentralised AS-Interface I/O modules of the CompactLine series connect binary and analogue sensors and actuators to the gateway or PLC via AS-Interface. The upper and lower parts of the modules are mounted with screws. Connection of the two-wire flat cable by means of insulation displacement technology ensures reverse polarity protection. Sensors and actuators are connected via proven, robust connectors. Thanks to their high luminosity, the LEDs for operation, function and fault indication are particularly easy to see. The ifm product range features modules with digital and analogue inputs and outputs and M8 or M12 connectors. The full potting and reliable screw connection provide shock and vibration resistance, making the modules ideally suited for field use in harsh industrial environments.
- Fully potted for high vibration resistance
- Sensor and actuator power can be supplied via external voltage
- Detection and display of peripheral and communication faults
- Addressing via programming cable E70423
- With digital inputs and outputs or with two analog current inputs
| MPN | Number of digital inputs | Number of analog inputs | Sensor supply of the inputs | Number of digital outputs | Number of analog outputs |
|---|---|---|---|---|---|
| AC2402 | 2 | ||||
| AC2403 | 2 | ||||
| AC2410 | 4 | AS-i | |||
| AC2411 | 2 | AS-i | 2 | ||
| AC2412 | 4 | AS-i | 4 | ||
| AC2413 | |||||
| AC2417 | 4 | ||||
| AC2451 | 4 | AS-i | |||
| AC2452 | 4 | AS-i | 4 | ||
| AC2457 | 4 | AS-i | |||
| AC2458 | 2 | AS-i | 2 | ||
| AC2459 | 4 | AS-i | 4 | ||
| AC2464 | 4 | AS-i | |||
| AC2465 | 4 | AS-i | 4 | ||
| AC2466 | 4 | AUX | 4 | ||
| AC2468 | 4 | AS-i | |||
| AC2471 | 4 | AS-i | 4 | ||
| AC2482 | 2 | AS-i | 2 | ||
| AC2484 | 4 | AS-i | |||
| AC2488 | 8 | AS-i | |||
| AC2490 | 4 | AS-i | 4 |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-050030010 | Industrial Communication - Actuator-Sensor interface I/O modules - I/O modules for field applications with quick mounting technology | $0.01 | |
| IFM-050030020 | Industrial Communication - Actuator-Sensor interface I/O modules - I/O modules for field applications | $0.01 | |
| IFM-050030040 | Industrial Communication - Actuator-Sensor interface I/O modules - Universal modules for field applications | $0.01 | |
| IFM-050030050 | Industrial Communication - Actuator-Sensor interface I/O modules - Illuminated pushbutton modules | $0.01 | |
| IFM-050030060 | Industrial Communication - Actuator-Sensor interface I/O modules - IP69K stainless steel modules for use in high pressure cleaning applications | $0.01 | |
| IFM-050030070 | Industrial Communication - Actuator-Sensor interface I/O modules - I/O modules for control cabinet installations | $0.01 | |
| IFM-050030080 | Industrial Communication - Actuator-Sensor interface I/O modules - PCB solutions | $0.01 |
