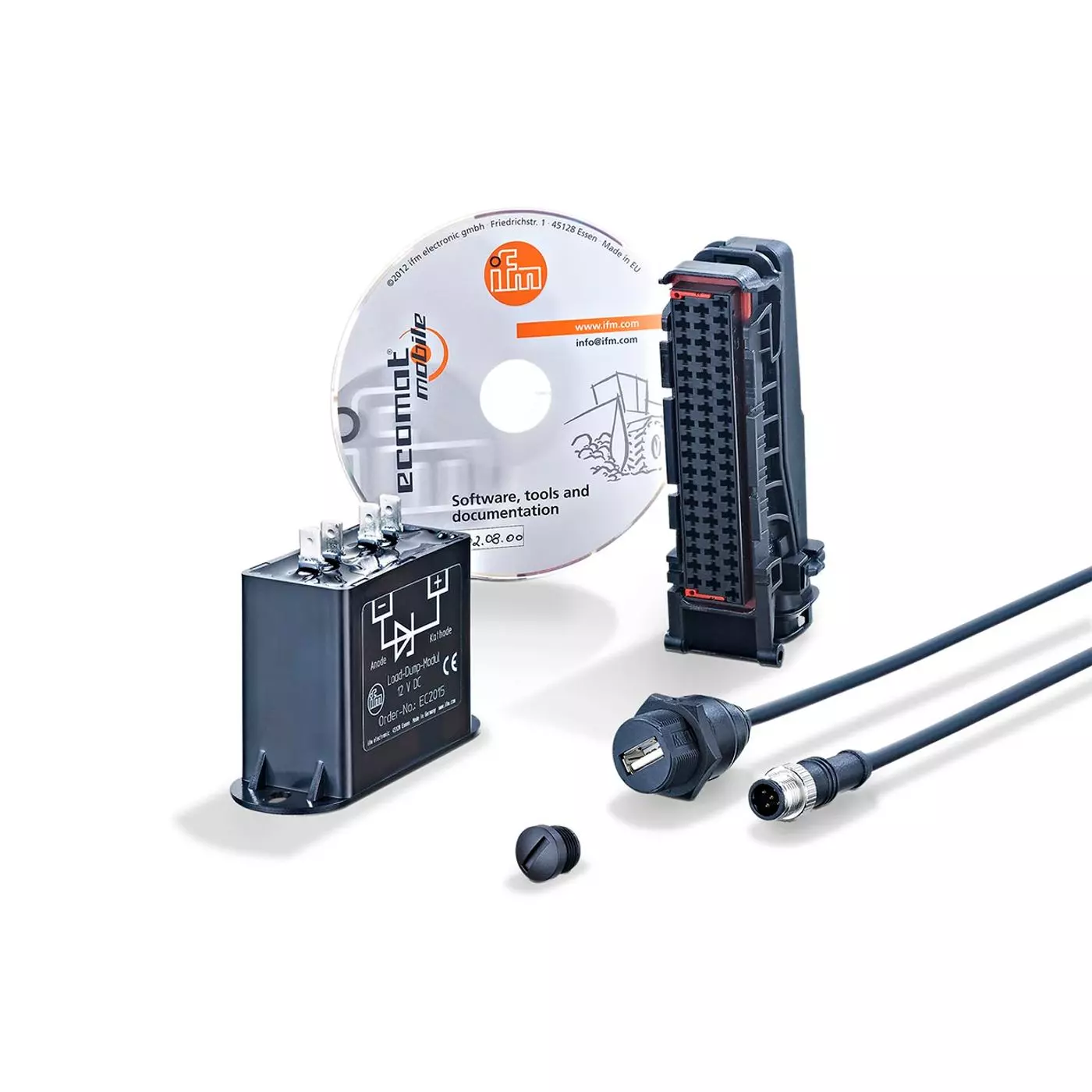

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Accessories for control systems - PWM / analogue modules
The PWM/analogue converter converts the provided PWM signal into an analogue output signal. It is for example used to control valves which cannot directly evaluate a PWM signal. The internal circuit of the converter smooths the PWM signals and generates an output signal which is proportional to the mark-to-space ratio.
Features & Benefits
- Conversion of a PWM signal into an analog output signal
- For installation in valve heads
- PCB or enclosed housing
Additional Notes
| MPN | Product designation | Operating voltage DC | Electrical design | Output function | Connection |
|---|---|---|---|---|---|
| CR3001 | PWM to analog module | 24...30 V | analog | screw terminals: 2,5 mm² | |
| CR3002 | PWM to analog module | 24...30 V | analog | screw terminals: 2,5 mm² | |
| CR3003 | PWM to analog module | 24...30 V | analog | 0.28 m | |
| CR3004 | PWM to analog module | 24...30 V | analog | 0.28 m | |
| CR3008 | PWM to analog module | 19.2...28.8 V | analog | 0.28 m |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110180010 | ifm Accessories - for control systems - Device connection cables | $0.01 | |
| IFM-110180020 | ifm Accessories - for control systems - Programming and communication cables | $0.01 | |
| IFM-110180030 | ifm Accessories - for control systems - Patchcables for mobile cameras | $0.01 | |
| IFM-110180040 | ifm Accessories - for control systems - Patchcables with valve plug | $0.01 | |
| IFM-110180050 | ifm Accessories - for control systems - Patchcables for CAN bus | $0.01 | |
| IFM-110180060 | ifm Accessories - for control systems - Connection cables with socket for CAN bus | $0.01 | |
| IFM-110180070 | ifm Accessories - for control systems - Connection cables with plug for CAN bus | $0.01 | |
| IFM-110180080 | ifm Accessories - for control systems - Wirable plug sets and wiring elements | $0.01 | |
| IFM-110180085 | ifm Accessories - for control systems - Mounting and fixing elements for displays | $0.01 | |
| IFM-110180090 | ifm Accessories - for control systems - For diagnosis and remote maintenance | $0.01 | |
| IFM-110180100 | ifm Accessories - for control systems - Load-dump modules | $0.01 | |
| IFM-110180110 | ifm Accessories - for control systems - Timer contacts | $0.01 | |
| IFM-110180130 | ifm Accessories - for control systems - DC/DC converters | $0.01 | |
| IFM-110180140 | ifm Accessories - for control systems - Ethernet switches for factory automation and mobile machines | $0.01 |
