Spare Parts Accessories IFM-110110110

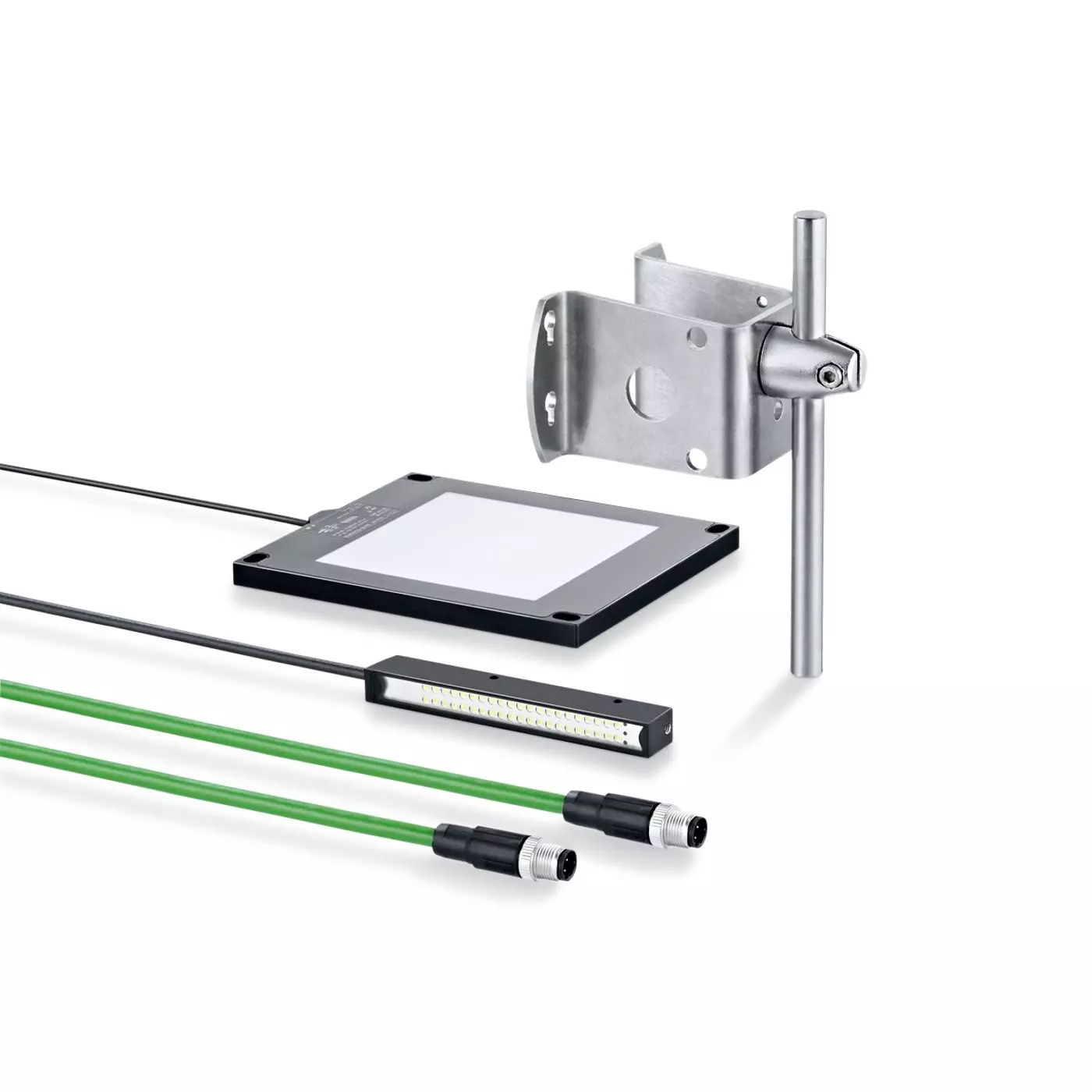

Pictures may not be actual SKU

ifm Accessories - for vision sensors - Connection cables with socket

Name: ifm Accessories - for vision sensors - Connection cables with socket
Brand: ifm
SKU: IFM-110110110
Availability: InStock

IFM | ifm

110 | Accessories

ifm Accessories - for vision sensors

IFM-110110110

Description

IFM's 110.110.110 group of Accessories - Accessories for vision sensors - Connection cables with socket

Base Model

Collection

110

Group

110

Options

110

Additional Options

Available to Order

Ships from PA

Typically ships within [ 2 ] days

24/7 Sales & Support 484-544-0506

Quantity:

− +

Get a Quote

Overview
SKU List

Headline

Sockets

To connect the vision sensor with the controller 8-pole sockets are required. ifm sockets ensure reliable transmission of sensor signals. ifm sockets are colour coded according to DIN 47100 or DIN EN 60947-5-2 and offered with or without screen.

Please note the wiring of the sensor and the sockets as for 8-pole sockets the core colours are not standardised.

Features & Benefits

8-pole connection
Colors to DIN EN 60947-5-2 or DIN 47101
High protection rating for the requirements of harsh industrial environments
Reliable transmission of the sensor signals

Additional Notes

MPN	Product designation	Connection	Cable structure	Ambient temperature
E10976	Female cordset	5 m PUR-Cable; M12 Connector	6 x 0,34 mm² (42 x Ø 0,1 mm)	-25...85 °C
E10977	Female cordset	10 m PUR-Cable; M12 Connector	6 x 0,34 mm² (42 x Ø 0,1 mm)	-25...85 °C
E10980	Female cordset	10 m PUR-Cable; M12 Connector	6 x 0,34 mm² (42 x Ø 0,1 mm)	-25...85 °C
E11231	Female cordset	2 m PUR-Cable; M12 Connector	8 x 0,25 mm²	-25...80 °C
E11232	Female cordset	5 m PUR-Cable; M12 Connector	8 x 0,25 mm²	-25...80 °C
E11311	Female cordset	10 m PUR-Cable; M12 Connector	8 x 0,25 mm²	-25...80 °C
E11806	Female cordset	10 m PUR-Cable; M12 Connector	8 x 0,25 mm²	-25...80 °C
E11807	Female cordset	5 m PUR-Cable; M12 Connector	8 x 0,25 mm²	-25...80 °C
E11855	Female cordset	10 m PUR-Cable; M12 Connector	8 x 0,25 mm² (14 x Ø 0,15 mm)	-25...80 °C
E11856	Female cordset	15 m PUR-Cable; M12 Connector	8 x 0,25 mm² (14 x Ø 0,15 mm)	-25...80 °C
E11950	Female cordset	2 m PUR-Cable; M12 Connector	8 x 0,25 mm²	-25...80 °C
E12166	Female cordset	5 m PUR-Cable; M12 Connector	8 x 0,25 mm² (14 x Ø 0,15 mm)	-40...80 °C
E12167	Female cordset	10 m PUR-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-40...80 °C
E12168	Female cordset	5 m PUR-Cable; M12 Connector	8 x 0,25 mm² (14 x Ø 0,15 mm)	-40...80 °C
E12169	Female cordset	10 m PUR-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-40...80 °C
E12237	Female cordset	15 m PUR-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-40...80 °C
E12238	Female cordset	25 m PUR-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-40...80 °C
E12260	Female cordset	10 m PUR-Cable; M12 Connector	8 x 0,25 mm²	-25...80 °C
E12295	Female cordset	5 m PVC-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-25...100 °C
E12296	Female cordset	10 m PVC-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-25...100 °C
E12343	Female cordset	25 m PVC-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-25...100 °C
E12344	Female cordset	25 m PVC-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-25...100 °C
E12387	Female cordset	25 m PVC-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-25...100 °C
E12400	Female cordset	15 m PVC-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-25...100 °C
E12401	Female cordset	40 m PVC-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-25...100 °C
E12402	Female cordset	2 m PUR-Cable; M12 Connector	8 x 0,25 mm² (14 x Ø 0,15 mm)	-25...90 °C
E12403	Female cordset	5 m PUR-Cable; M12 Connector	8 x 0,25 mm² (14 x Ø 0,15 mm)	-25...90 °C
E12404	Female cordset	10 m PUR-Cable; M12 Connector	8 x 0,25 mm² (14 x Ø 0,15 mm)	-25...90 °C
E12409	Female cordset	70 m PVC-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-25...100 °C
E12433	Female cordset	10 m PVC-Cable; M12 Connector	8 x 0,25 mm² (32 x Ø 0,1 mm)	-25...100 °C
E12436	Male cordsets	2 m PUR-Cable; M12 Connector	8 x 0,25 mm²	-25...80 °C
E12437	Male cordsets	5 m PUR-Cable; M12 Connector	8 x 0,25 mm²	-25...80 °C
E12751	Female cordset	10 m PVC-Cable; M12 Connector	8 x 0,25 mm² (14 x Ø 0,15 mm)	-25...80 °C
E80021	Female cordset	2 m PUR-Cable; M12 Connector	8 x 0,25 mm² (14 x Ø 0,15 mm)	-25...90 °C
E80022	Female cordset	2 m PUR-Cable; M12 Connector	8 x 0,25 mm² (14 x Ø 0,15 mm)	-25...90 °C
