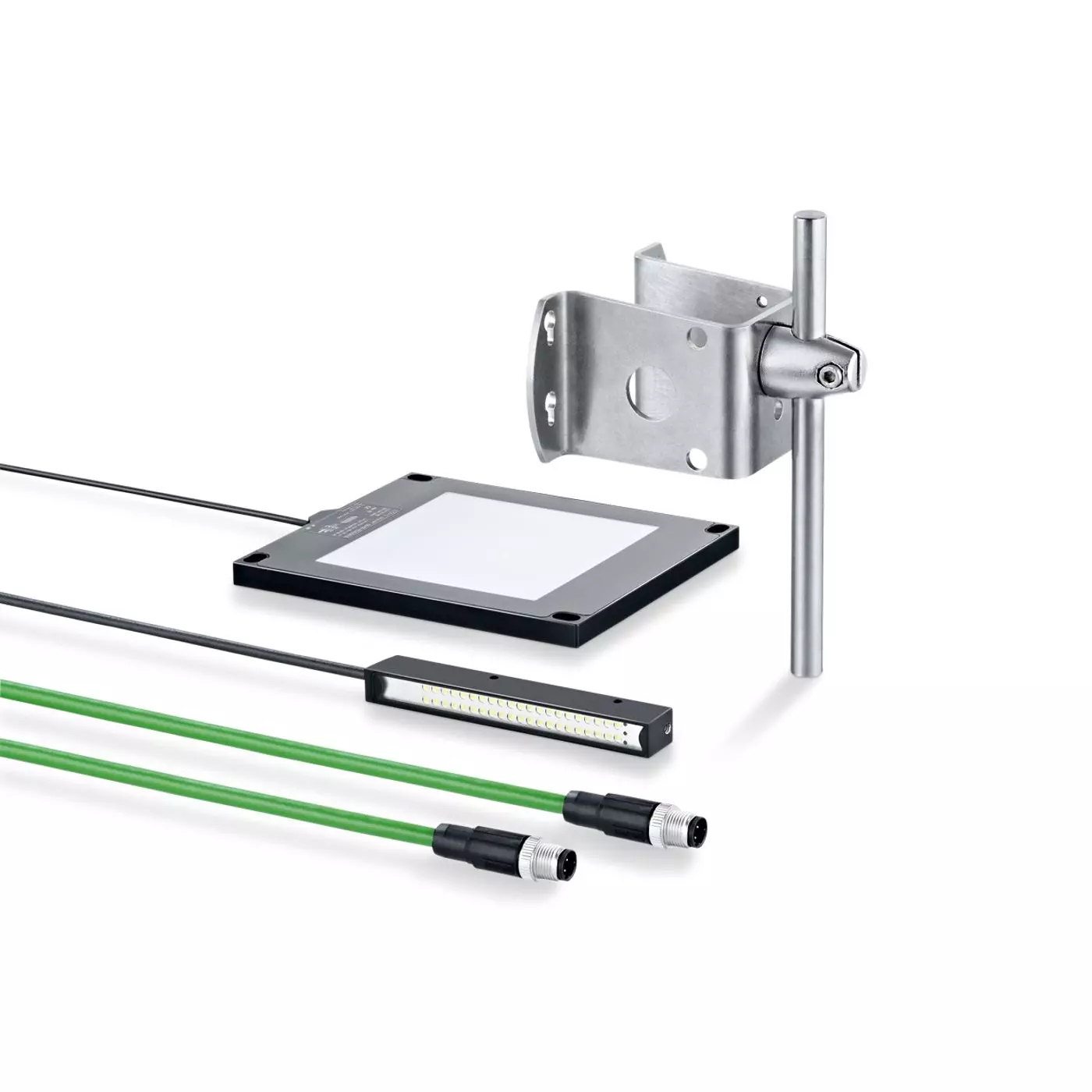

Mounting sets
ifm offers a complete component system of easy-to-use mounting sets that make the installation of vision sensors and backlights easier for you. The solutions consist of a clamp fastened by only one screw that keeps the sensors safely in position and guarantees free movement in all axes.
Whereas the sensor mounting elements used depend on the sensor type, the clamps can be mounted in three different ways: rod mounting, free-standing mounting and fitting onto aluminium profiles which are common in industry.
For rod mounting of vision sensors, a clamp is simply fixed on an existing rod on the machine. The clamp on the rod and the mounting element of the sensor can be rotated. So any sensor position can be reached simply and quickly. Clamps are available for three rod diameters: 10/12/14 mm.
- Easy, quick and secure mounting
- Stable clamping system for rod mounting
- Robust stainless steel fixing elements
| MPN | Product designation | Dimensions | Thread length | Inside diameter | Material |
|---|---|---|---|---|---|
| E2D107 | Mounting set | Mounting plate: stainless steel (1.4305 / 303); Clamp: stainless steel | |||
| E2D108 | Mounting set | Mounting plate: stainless steel (1.4305 / 303); Clamp: stainless steel | |||
| E2D109 | Mounting set | Mounting plate: stainless steel (1.4305 / 303); Clamp: stainless steel | |||
| E2D110 | Mounting set | fixture: stainless steel (1.4301 / 304); Clamp: stainless steel (1.4408) | |||
| E2D111 | Mounting set | fixture: stainless steel (1.4301 / 304); Clamp: stainless steel (1.4408) | |||
| E2D112 | Mounting set | fixture: stainless steel (1.4301 / 304); Clamp: stainless steel (1.4408) | |||
| E2D114 | Mounting set | Ø 12 / L = 250 mm | Mounting bracket: stainless steel; Clamp: stainless steel | ||
| E2D115 | Mounting set | 155 x 130 x 34 mm | Mounting bracket: stainless steel; Clamp: stainless steel | ||
| E2D116 | Mounting set | 175 x 175 x 99 mm | Mounting bracket: stainless steel; Clamp: stainless steel | ||
| E2D201 | Mounting set | 61.3 x 106 x 73 mm | Mounting bracket: stainless steel; Clamp: stainless steel | ||
| E2D401 | Mounting bracket | 126.8 x 123.3 x 23.2 mm | fixture: metal | ||
| E2D402 | Mounting set | 22 x 21.5 x 22 mm | fixture: metal; End cap: plastics | ||
| E2D500 | Mounting set | Clamps: stainless steel (1.4404 / 316L); cylinder screws: hot galvanized M4 x 8; Assembly angle: stainless steel (1.4301 / 304) | |||
| U60042 | Mounting set | fixture: stainless steel (1.4301 / 304); Clamp: stainless steel (1.4408); Mounting rod: stainless steel (1.4571/316Ti ) | |||
| U60043 | Accessories |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110110010 | ifm Accessories - for vision sensors - Illumination units | $0.01 | |
| IFM-110110030 | ifm Accessories - for vision sensors - Operating software | $0.01 | |
| IFM-110110040 | ifm Accessories - for vision sensors - OPC server software for 1D/2D code readers | $0.01 | |
| IFM-110110060 | ifm Accessories - for vision sensors - Protective panes | $0.01 | |
| IFM-110110090 | ifm Accessories - for vision sensors - Touch Panel PC | $0.01 | |
| IFM-110110100 | ifm Accessories - for vision sensors - Ethernet and patch cables | $0.01 | |
| IFM-110110110 | ifm Accessories - for vision sensors - Connection cables with socket | $0.01 |
