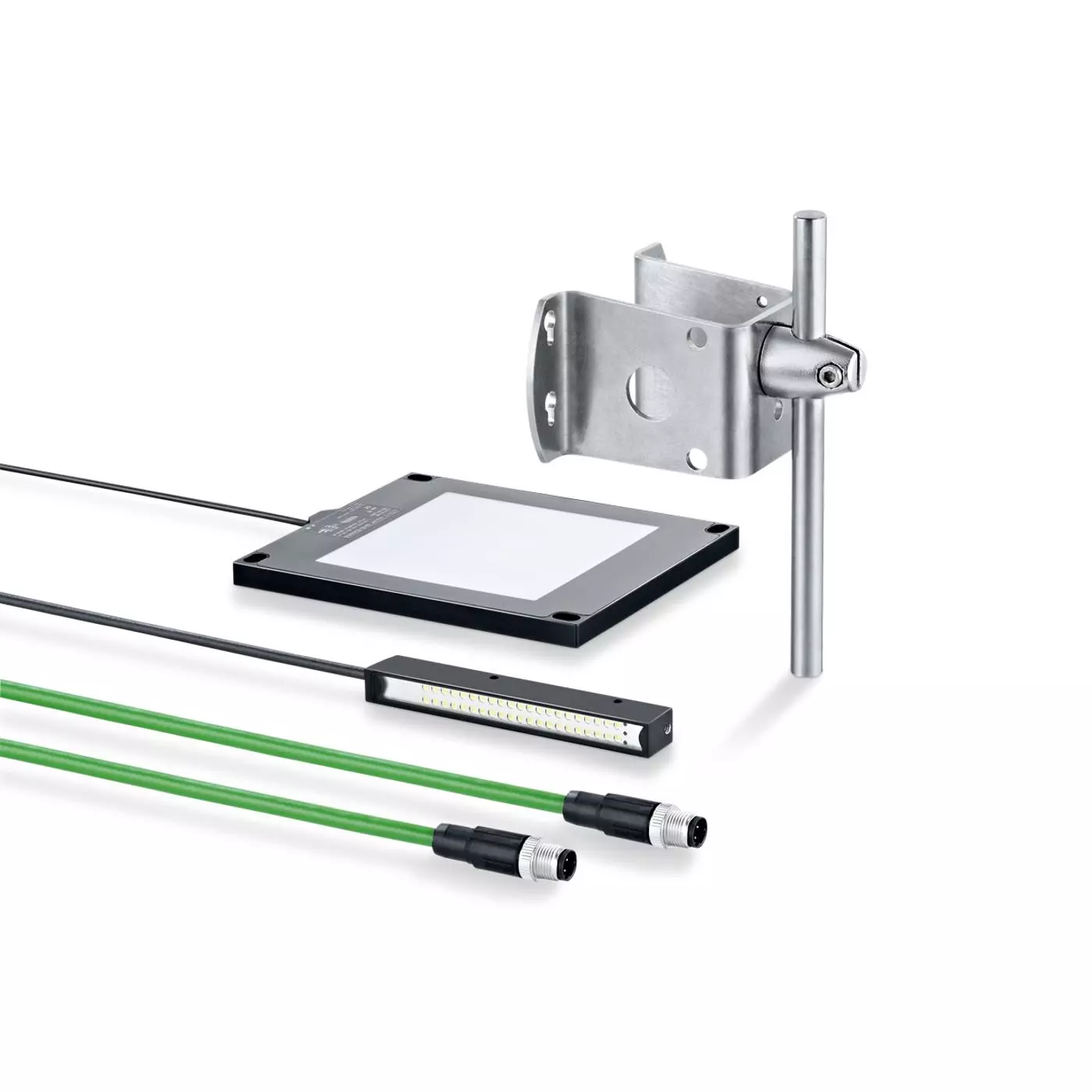

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Ethernet and patch cable
For set-up, parameter setting and process data exchange of the vision sensors the operating software is used. For the parameter setting and process interface, two protocols are available: TCP/IP and EtherNet/IP. An EtherNet patch cable is used to connect the sensor and the processor.
Features & Benefits
- For connection to the parameter setting interface of the sensor
- Safe signal transmission
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Ambient temperature |
|---|---|---|---|---|---|
| E11898 | Connection cable | 2 m PVC-Cable; M12 / RJ45 Connector | 4 x 0,38 mm² | -25...70 °C | |
| E12090 | Connection cable | 2 m PVC-Cable; M12 / RJ45 Connector | 2 x 2 x 0,38 mm² | -25...70 °C | |
| E12226 | Connection cable | 2 m PVC-Cable; M12 / RJ45 Connector | 4 x 0,38 mm² | -25...70 °C | |
| E12283 | Connection cable | 5 m PVC-Cable; M12 / RJ45 Connector | 4 x 0,38 mm² | -25...70 °C | |
| E12422 | Connection cable | 0.5 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -20...90 °C | |
| E12423 | Connection cable | 20 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -20...90 °C | |
| E12424 | Connection cable | 20 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -20...90 °C | |
| E12490 | Connection cable | 0.5 m PVC-Cable; M12 / RJ45 Connector | 2 x 2 x 0,38 mm² | -25...70 °C | |
| E12491 | Connection cable | 5 m PVC-Cable; M12 / RJ45 Connector | 2 x 2 x 0,38 mm² | -25...70 °C | |
| E12492 | Connection cable | 10 m PVC-Cable; M12 / RJ45 Connector | 2 x 2 x 0,38 mm² | -25...70 °C | |
| E12493 | Connection cable | 20 m PVC-Cable; M12 / RJ45 Connector | 2 x 2 x 0,38 mm² | -25...70 °C | |
| E12510 | Male cordsets | 2 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -40...70 °C | |
| E12511 | Male cordsets | 5 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -40...70 °C | |
| E12512 | Male cordsets | 10 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -40...70 °C | |
| E12513 | Male cordsets | 20 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -40...70 °C | |
| E18422 | Connection cable | 5 m PUR-Cable; M12 / RJ45 Connector | 2 x 0,38 mm² | -25...70 °C | |
| E18423 | Connection cable | 10 m PUR-Cable; M12 / RJ45 Connector | 2 x 0,38 mm² | -25...70 °C | |
| E18515 | Female cordset | 50 m PUR-Cable; M12 Connector | 4 x 1,5 mm² | -25...85 °C | |
| E18516 | Female cordset | 20 m PUR-Cable; M12 Connector | 4 x 1,5 mm² | -25...85 °C | |
| E18518 | Female cordset | 10 m PUR-Cable; M12 Connector | 4 x 1,5 mm² | -25...85 °C | |
| E18519 | Female cordset | 5 m PUR-Cable; M12 Connector | 4 x 1,5 mm² | -25...85 °C | |
| E18520 | Female wirable connectors | M12 Connector; screw terminals: 0,75...1,5 mm²; Cable sheath: Ø 8...10 mm | -40...85 °C | ||
| E18521 | Wirable plug | M12 Connector; screw terminals: 0,75...1,5 mm²; Cable sheath: Ø 8...10 mm | -40...85 °C | ||
| E21137 | Connection cable | 10 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -20...90 °C | |
| E21138 | Connection cable | 2 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -20...90 °C | |
| E21139 | Connection cable | 5 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -20...90 °C | |
| E21140 | Adapter | M12 / RJ45 Connector | -25...85 °C | ||
| UC0234 | Connection cable | 1 m PVC-Cable; M12 Connector | 4 x 0,34 mm² | -20...90 °C | |
| ZH4114 | Connection cable | 5 m PVC-Cable; M12 / RJ45 Connector | 4 x 2x0,14 mm² | -25...90 °C | |
| ZH4115 | Connection cable | 2 m PVC-Cable; M12 / RJ45 Connector | 4 x 2x0,14 mm² | -25...90 °C | |
| ZH4116 | Connection cable | 10 m PVC-Cable; M12 / RJ45 Connector | 4 x 2x0,14 mm² | -25...90 °C |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110110010 | ifm Accessories - for vision sensors - Illumination units | $0.01 | |
| IFM-110110030 | ifm Accessories - for vision sensors - Operating software | $0.01 | |
| IFM-110110040 | ifm Accessories - for vision sensors - OPC server software for 1D/2D code readers | $0.01 | |
| IFM-110110050 | ifm Accessories - for vision sensors - Mounting sets | $0.01 | |
| IFM-110110060 | ifm Accessories - for vision sensors - Protective panes | $0.01 | |
| IFM-110110090 | ifm Accessories - for vision sensors - Touch Panel PC | $0.01 | |
| IFM-110110110 | ifm Accessories - for vision sensors - Connection cables with socket | $0.01 |
