Headline

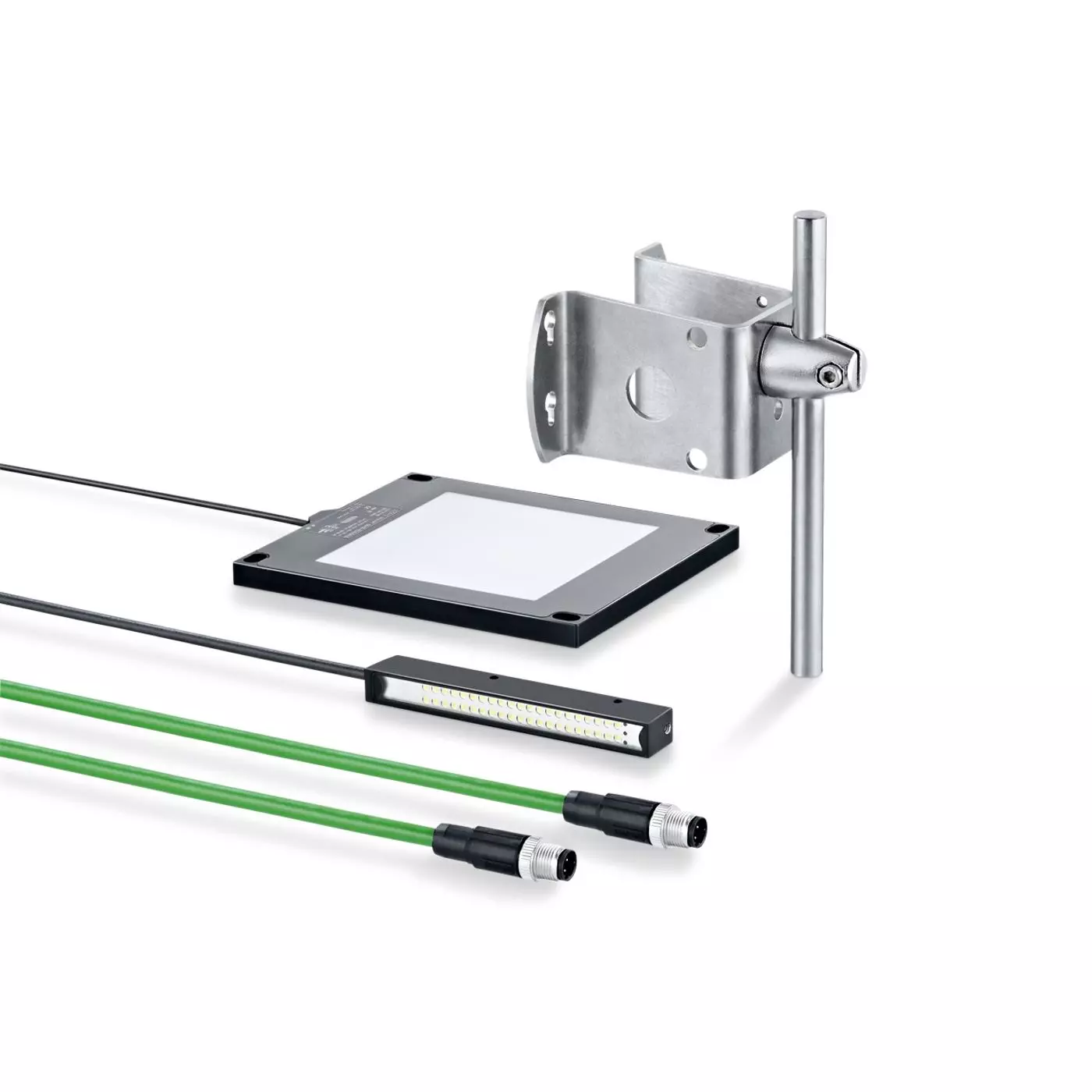

Accessories for vision sensors
With the wide selection of accessories the vision sensors can be integrated simply, quickly and reliably into different applications.
Features & Benefits
- Backlights for contour and position verification and object recognition
- Permanent light or pulse operation
- White light, red light and infrared versions
- Compact and robust housing
- Homogeneous and virtually shadow-free illumination of the object
Additional Notes
MPN | Product designation | Design | Dimensions | Illuminated field | Operating voltage DC |
---|---|---|---|---|---|
O2D900 | Illumination unit | backlight | 66.5 x 33.4 x 9.2 mm | 25 x 25 mm | 24 V |
O2D901 | Illumination unit | backlight | 66.5 x 33.4 x 9.2 mm | 25 x 25 mm | 24 V |
O2D902 | Illumination unit | backlight | 103 x 81 x 9.2 mm | 50 x 50 mm | 24 V |
O2D903 | Illumination unit | backlight | 103 x 81 x 9.2 mm | 50 x 50 mm | 24 V |
O2D904 | Illumination unit | backlight | 156 x 133 x 9.2 mm | 100 x 100 mm | 24 V |
O2D905 | Illumination unit | backlight | 161.2 x 9.8 x 133 mm | 100 x 100 mm | 24 V |
O2D907 | Illumination unit | backlight | 103 x 81 x 9.2 mm | 50 x 50 mm | 24 V |
O2D908 | Illumination unit | backlight | 156 x 133 x 9.2 mm | 100 x 100 mm | 24 V |
O2D915 | Illumination unit | ring | Ø 122 / L = 20.5 mm | Ø 106 / Ø 66 mm | 24 V |
O2D917 | Illumination unit | ring | Ø 122 / L = 20.5 mm | Ø 106 / Ø 66 mm | 24 V |
O2D919 | Illumination unit | ring | Ø 122 / L = 20.5 mm | Ø 106 / Ø 66 mm | 24 V |
O2D920 | Illumination unit | dark field | 155 x 130 x 9.8 mm | Ø 90 mm | 24 V |
O2D921 | Illumination unit | bar | 116 x 13 x 18 mm | 10 x 75 mm | 24 V |
O2D922 | Illumination unit | bar | 116 x 13 x 18 mm | 10 x 75 mm | 24 V |
O2D923 | Illumination unit | bar | 116 x 13 x 18 mm | 10 x 75 mm | 24 V |
O2D924 | Illumination unit | bar | 200 x 13 x 18 mm | 10 x 150 mm | 24 V |
O2D925 | Illumination unit | bar | 200 x 13 x 18 mm | 10 x 150 mm | 24 V |
O2D926 | Illumination unit | bar | 200 x 13 x 18 mm | 10 x 150 mm | 24 V |
O2D930 | Illumination unit | Dome | 193 x 136 x 75 mm | 80 x 80 mm | 24 V |
O2D931 | Illumination unit | Dome | 193 x 136 x 75 mm | 80 x 80 mm | 24 V |
O2D932 | Illumination unit | Dome | 256.8 x 197 x 106.8 mm | 130 x 130 mm | 24 V |
O2D933 | Illumination unit | Dome | 256.8 x 197 x 106.7 mm | 130 x 130 mm | 24 V |
O2D940 | Illumination unit | backlight | 70.5 x 33.4 x 9.5 mm | 25 x 25 mm | 24 V |
O2D941 | Illumination unit | backlight | 70.5 x 33.4 x 9.5 mm | 25 x 25 mm | 24 V |
O2D942 | Illumination unit | backlight | 105 x 81 x 9.8 mm | 50 x 50 mm | 24 V |
O2D943 | Illumination unit | backlight | 105 x 81 x 9.8 mm | 50 x 50 mm | 24 V |
O2D944 | Illumination unit | backlight | 155 x 133 x 9.8 mm | 100 x 100 mm | 24 V |
O2D945 | Illumination unit | backlight | 155 x 133 x 9.8 mm | 100 x 100 mm | 24 V |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
IFM-110110030 | ifm Accessories - for vision sensors - Operating software | $0.01 | |
IFM-110110040 | ifm Accessories - for vision sensors - OPC server software for 1D/2D code readers | $0.01 | |
IFM-110110050 | ifm Accessories - for vision sensors - Mounting sets | $0.01 | |
IFM-110110060 | ifm Accessories - for vision sensors - Protective panes | $0.01 | |
IFM-110110090 | ifm Accessories - for vision sensors - Touch Panel PC | $0.01 | |
IFM-110110100 | ifm Accessories - for vision sensors - Ethernet and patch cables | $0.01 | |
IFM-110110110 | ifm Accessories - for vision sensors - Connection cables with socket | $0.01 |
