Headline

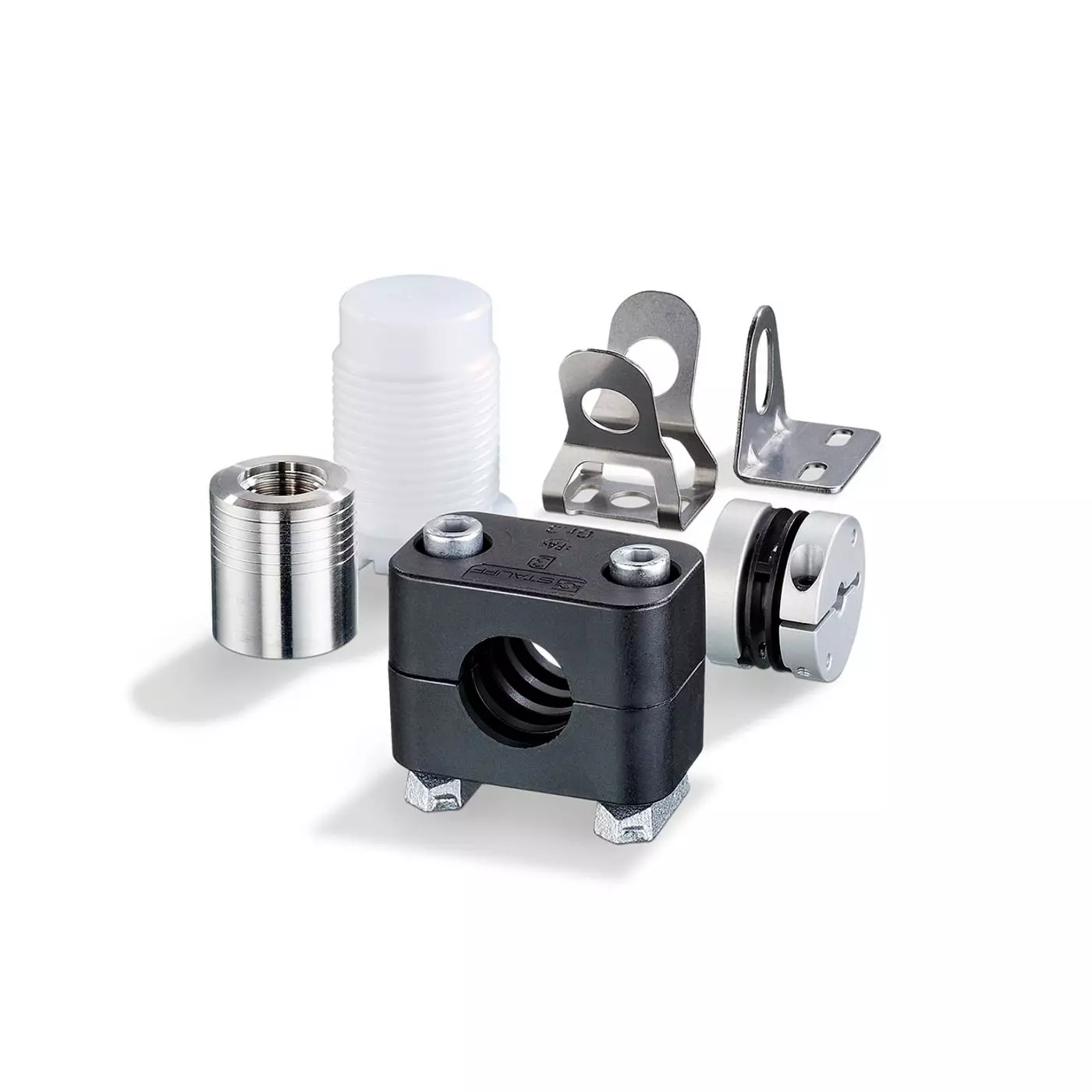

Mounting clamps
Clamps provide a quick, easy and cost-effective way of mounting cylinder type sensors. The sensors are securely clamped with two screws.
Features & Benefits
- For mounting cylindrical sensors
- Easy, quick and inexpensive fixing
- Reliable fixing by clamping with two screws
Additional Notes
| MPN | Product designation | Dimensions | Thread length | Inside diameter | Material |
|---|---|---|---|---|---|
| E10014 | Mounting clamp | 6.2 mm | PPE | ||
| E10015 | Mounting clamp | 30 x 30 x 18 mm | 12 mm | PBT | |
| E10016 | Mounting clamp | 40 x 44 x 20 mm | 20 mm | PBT; socket head screws: steel galvanized | |
| E10017 | Mounting clamp | 56 x 58 x 20 mm | 34 mm | PBT | |
| E10018 | Reducing bush | PBT | |||
| E10019 | Reducing bush | PBT | |||
| E10076 | Mounting clamp | 40 x 44 x 20 mm | 20 mm | PBT | |
| E10077 | Mounting clamp | 56 x 58 x 20 mm | 34 mm | PBT | |
| E10192 | Mounting clamp | 35 x 50 x 29 mm | 20 mm | PA | |
| E10193 | Mounting clamp | 58 x 70 x 29 mm | 34 mm | PA | |
| E10204 | Mounting clamp | 13 x 20 x 10 mm | 4 mm | TPE | |
| E10221 | Mounting clamp | 13 x 20 x 10 mm | 8 mm | aluminum black anodized | |
| E11037 | Mounting set | POM | |||
| E11294 | Mounting clamp | 6.5 mm | Aluminum Alloy | ||
| E20592 | Thread adapter | M18 / M12 x 1 / L = 20 mm | 20 mm | brass nickel-plated | |
| E40048 | Mounting clamp | 23 mm | PBT | ||
| E43000 | Mounting clamp | 33 x 42 x 30 mm | 16 mm | PP | |
| E43016 | Mounting set | 16 mm | PP; metal parts: steel galvanized |
