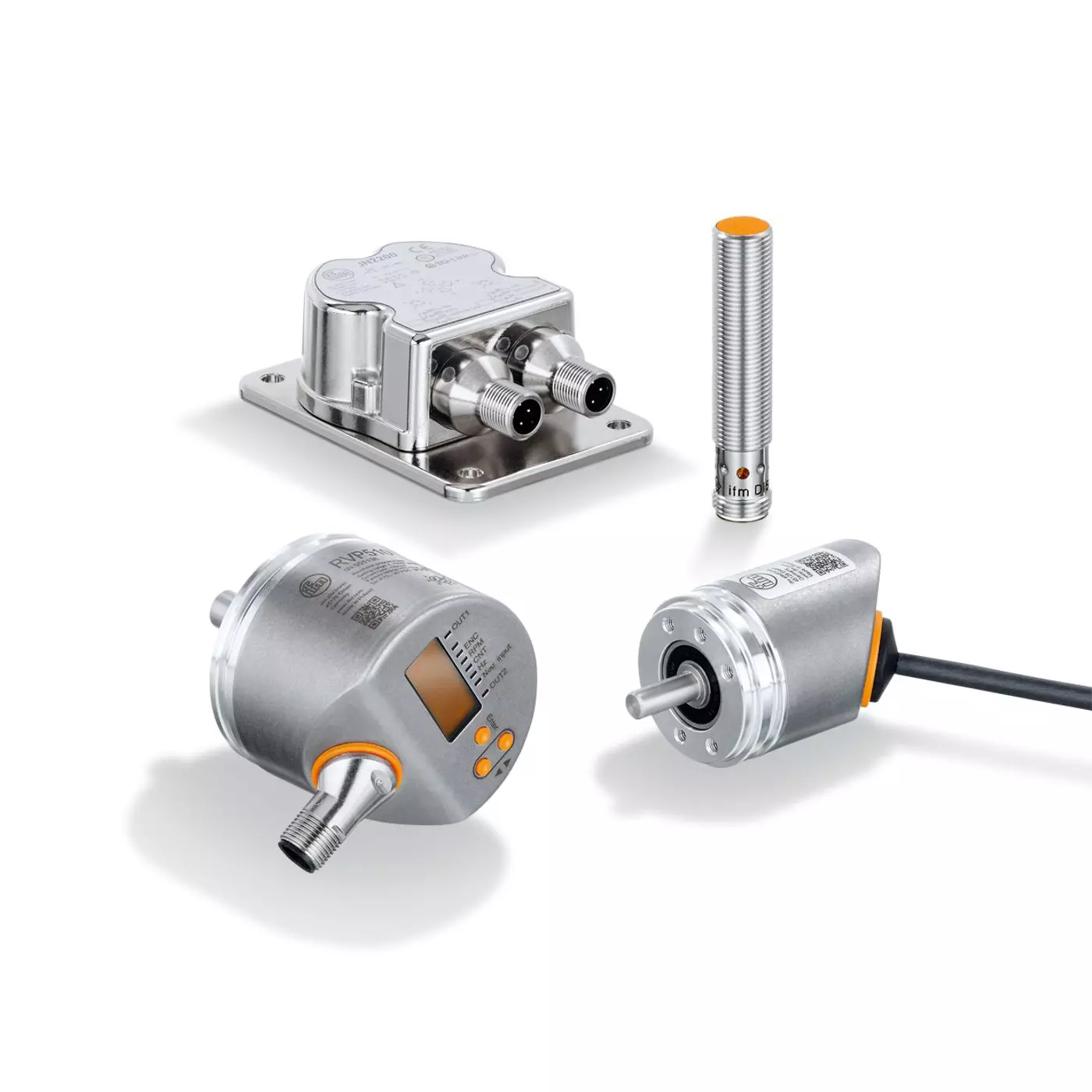

IO-Link sensor for motion control
In many industrial applications it is necessary to monitor drives for rotational speed or standstill, measure speeds, frequencies, distances, angles or positions and display, process and transmit current process values. In the materials handling and wood industry, encoders have become established as reliable instruments for position and linear measurement. Often the horizontal alignment of machines or machine parts is an important requirement for reliable operation. Inclination sensors are used for reliable angular position detection on working platforms or levelling of mobile cranes or excavators. Industrial applications include solar panel tracking systems. The sensors can be configured via IO-Link, using, for example, a USB interface. The LINERECORDER SENSOR software is used to visualise, transfer and archive parameter sets.
- Absolute position traceability even when unpowered
- Set values directly for precise positioning operations without the need for a PLC
- Rotatable M12 connector and integrated status LED for flexible installation
- Freely programmable total resolution up to 31 bits
| MPN | Dimensions | Shaft design | Shaft diameter | Resolution | Electrical design |
|---|---|---|---|---|---|
| RMA300 | Ø 36 / L = 54.2 mm | hollow shaft open to one side | 12 mm | 65536 steps; 32768 revolutions; 31 bit | |
| RMA310 | Ø 42 / L = 89.5 mm | hollow shaft open to one side | 12 mm | 65536 steps; 32768 revolutions; 31 bit | |
| RMB300 | Ø 36 / L = 65 mm | solid shaft | 6 mm | 65536 steps; 32768 revolutions; 31 bit | |
| RMB310 | Ø 42 / L = 107.9 mm | solid shaft | 10 mm | 65536 steps; 32768 revolutions; 31 bit | |
| RMO300 | Ø 58 / L = 69 mm | hollow shaft open to one side | 15 mm | 65536 steps; 32768 revolutions; 31 bit | |
| RMU300 | Ø 58 / L = 79 mm | solid shaft | 6 mm | 65536 steps; 32768 revolutions; 31 bit | |
| RMV300 | Ø 58 / L = 79 mm | solid shaft | 10 mm | 65536 steps; 32768 revolutions; 31 bit |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-055050010010 | IO-Link - IO-Link sensors for motion control - IO-Link - Encoders / IO-Link - Incremental encoders | $0.01 | |
| IFM-055050010020 | IO-Link - IO-Link sensors for motion control - IO-Link - Encoders / IO-Link - Incremental encoders with display | $0.01 | |
| IFM-055050020010 | IO-Link - IO-Link sensors for motion control - Speed sensors / IO-Link - Compact speed monitors | $0.01 | |
| IFM-055050030010 | IO-Link - IO-Link sensors for motion control - IO-Link - Inclination sensors / IO-Link - Inclination sensors | $0.01 |
