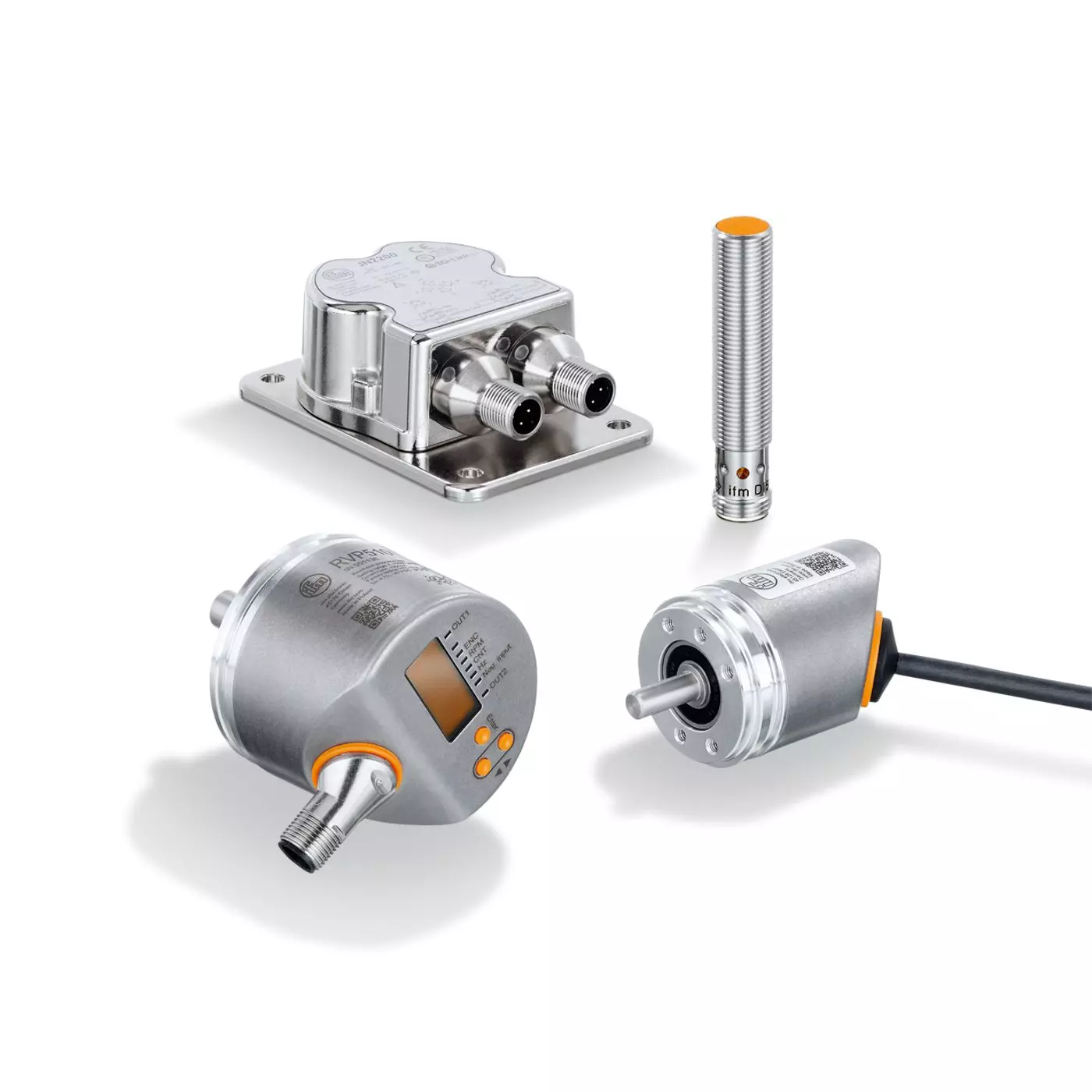

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Incremental encoders with display
Their high accuracy and robust design make encoders with magnetic detection an ideal choice for harsh industrial applications. Resolution and signal level can be programmed. The encoders have a wide voltage range of 4.5...30 V DC and are therefore suited for universal use. Performance Line encoders have an integrated signal evaluation for speed monitoring, counter functions and detection of the direction of rotation. The current position value is indicated on a bright LED display. The settings are made via operating keys on the unit and an intuitive menu navigation. Diagnostic and parameter data are reliably transferred via IO-Link.
Features & Benefits
- Can be configured as encoder, speed monitor or counter
- Clearly visible LED display with red/green color change
- User-friendly communication and parameterization via IO-Link
- High shock and vibration resistance
- Resolution freely programmable from 1 ... 9,999
Additional Notes
| MPN | Dimensions | Shaft design | Shaft diameter | Resolution | Electrical design |
|---|---|---|---|---|---|
| ROP520 | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 12 mm | 1...10000; (configurable; Factory setting: 1024) resolution | HTL/TTL |
| ROP521 | Ø 58 / L = 56.2 mm | hollow shaft open to one side | 12 mm | 1...10000; (configurable; Factory setting: 1024) resolution | HTL/TTL |
| ROP522 | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 15 mm | 1...10000; (configurable; Factory setting: 1024) resolution | HTL/TTL |
| ROP523 | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 9.525 mm | 1...10000; (configurable; Factory setting: 1024) resolution | HTL/TTL |
| ROP524 | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 15.875 mm | 1...10000; (configurable; Factory setting: 1024) resolution | HTL/TTL |
| RUP500 | Ø 58 / L = 64 mm | solid shaft | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution | HTL/TTL |
| RVP510 | Ø 58 / L = 80.2 mm | solid shaft | 10 mm | 1...10000; (configurable; Factory setting: 1024) resolution | HTL/TTL |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-055050010010 | IO-Link - IO-Link sensors for motion control - IO-Link - Encoders / IO-Link - Incremental encoders | $0.01 | |
| IFM-055050010030 | IO-Link - IO-Link sensors for motion control - IO-Link - Encoders / IO-Link - Multiturn encoders | $0.01 | |
| IFM-055050020010 | IO-Link - IO-Link sensors for motion control - Speed sensors / IO-Link - Compact speed monitors | $0.01 | |
| IFM-055050030010 | IO-Link - IO-Link sensors for motion control - IO-Link - Inclination sensors / IO-Link - Inclination sensors | $0.01 |
