Headline

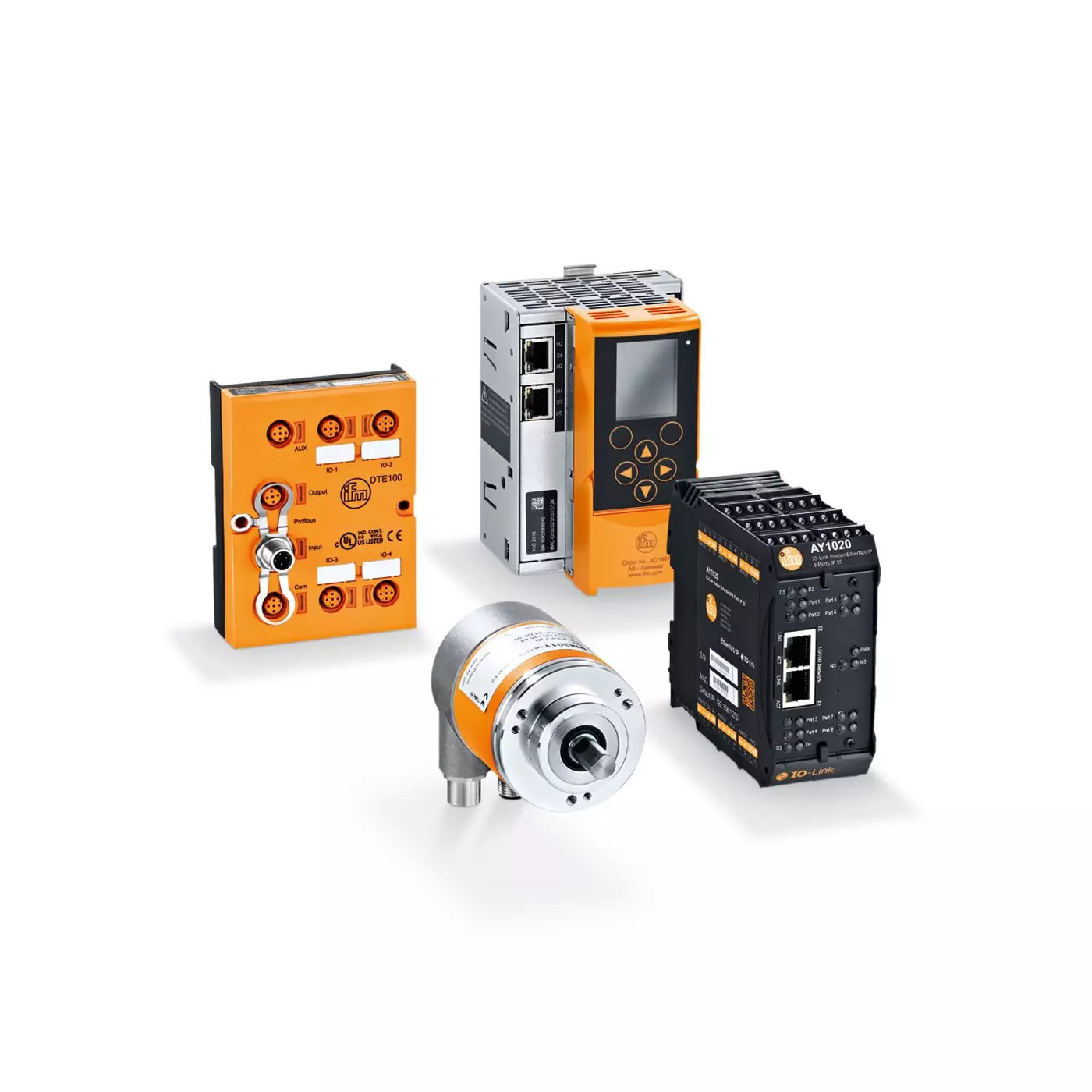

Absolute multiturn encoders
Absolute encoders provide an absolute numerical value for each angular position even over several revolutions. Multiturn encoders, however, do not only detect absolute angular positions but also count revolutions. Even after a voltage failure and system restart, the current position is quickly and reliably detected. The signals are output via an SSI interface or a fieldbus interface such as CAN or Profibus.
Features & Benefits
- For precise position, speed, angular and linear measurement
- Direct output of the values via CANopen interface
- Robust housing for use in harsh industrial environments
- High shock and vibration resistance
- Easy wiring and programming
Additional Notes
| MPN | Resolution | Resolution in steps per revolution | Resolution in bits | Shaft design | Shaft diameter |
|---|---|---|---|---|---|
| RM3006 | 8192 | 25 bit | solid shaft | 6 mm | |
| RM3007 | 8192 | 25 bit | solid shaft | 10 mm | |
| RM3008 | 8192 | 25 bit | hollow shaft open to one side | 12 mm | |
| RM3011 | 8192 | 25 bit | solid shaft | 10 mm | |
| RM7011 | 8192 | 25 bit | solid shaft | 6 mm | |
| RM7012 | 8192 | 25 bit | solid shaft | 10 mm | |
| RM7013 | 8192 | 25 bit | solid shaft | 10 mm | |
| RM8004 | 4096 | 24 bit | hollow shaft open to one side | 12 mm | |
| RM8007 | 4096 | 24 bit | hollow shaft open to one side | 12 mm | |
| RM9000 | 4096 | 24 bit | solid shaft | 10 mm | |
| RM9001 | 4096 | 24 bit | solid shaft | 10 mm | |
| RM9003 | 4096 | 24 bit | solid shaft | 10 mm | |
| RM9004 | 4096 | 24 bit | solid shaft | 10 mm | |
| RM9006 | 4096 | 24 bit | solid shaft | 10 mm | |
| RM9007 | 4096 | 24 bit | solid shaft | 6 mm | |
| RM9010 | 4096 | 24 bit | solid shaft | 10 mm | |
| RMA300 | 65536 | 31 bit | hollow shaft open to one side | 12 mm | |
| RMA310 | 65536 | 31 bit | hollow shaft open to one side | 12 mm | |
| RMB300 | 65536 | 31 bit | solid shaft | 6 mm | |
| RMB310 | 65536 | 31 bit | solid shaft | 10 mm | |
| RMO300 | 65536 | 31 bit | hollow shaft open to one side | 15 mm | |
| RMU300 | 65536 | 31 bit | solid shaft | 6 mm | |
| RMV300 | 65536 | 31 bit | solid shaft | 10 mm |
