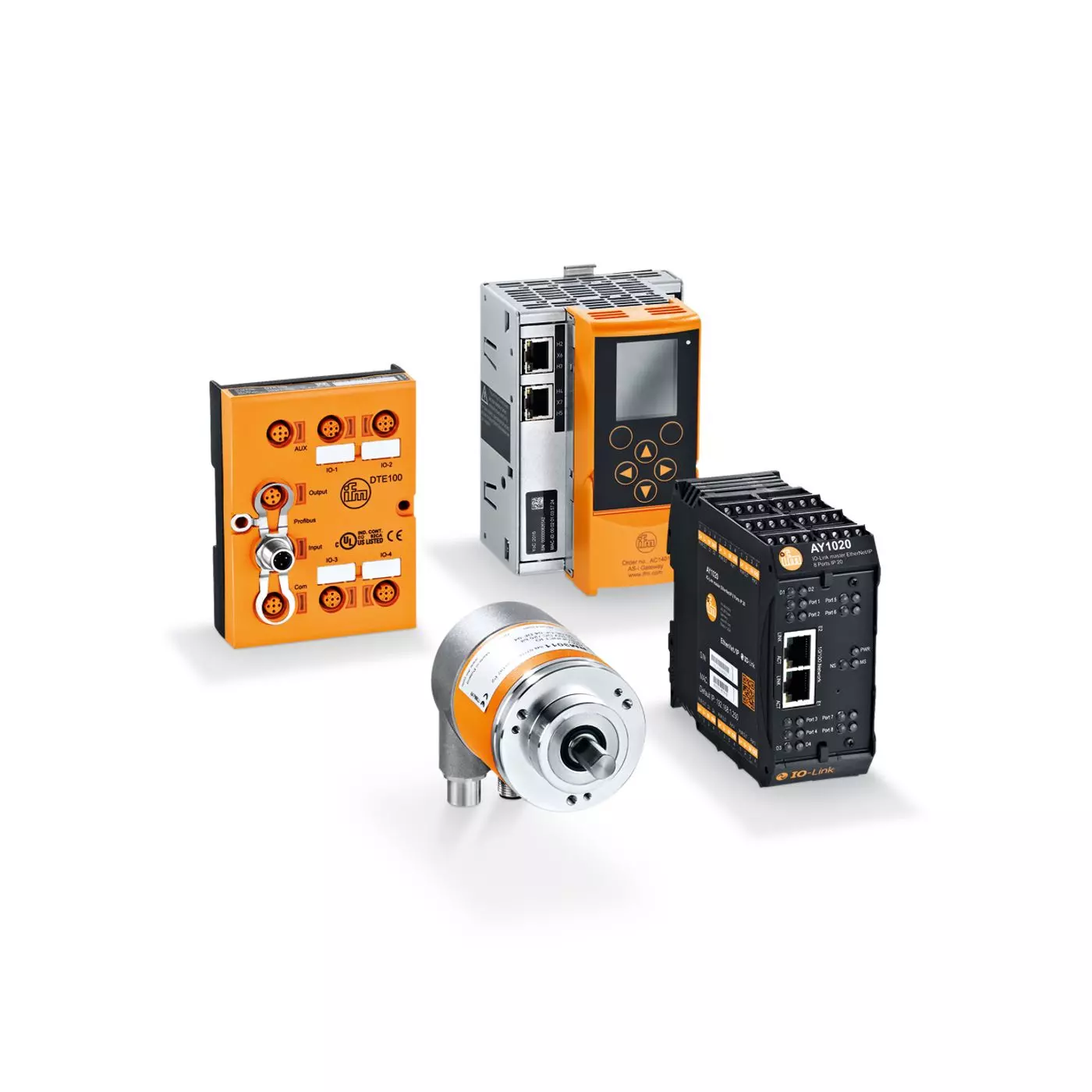

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
RFID 13.56 MHz - Evaluation systems
The RFID evaluation unit controls the data exchange to the RFID antennas or to the sensor/actuator level, communicates with the higher control level and enables device configuration via a web server. The unit has four channels for the connection of field devices. Each channel can be used for connection of an RFID read/write head or as a digital input/output. Applications are found in production lines where the units are used for material flow control, or in guided material handling systems for coding of workpiece carriers. The RFID evaluation unit transmits the data to the PLC via PROFIBUS DP, PROFINET, Ethernet IP, Ethernet TCP/IP or EtherCAT.
Features & Benefits
- Reliable control of the data exchange with RFID antennas
- Communication with the higher control level via fieldbus interface
- Easy device configuration via web server
- With four channels for the connection of RFID antennas or digital I/Os
- High protection rating for the requirements of harsh industrial environments
Additional Notes
| MPN | Product designation | Operating frequency | Communication interface | Dimensions | Memory size |
|---|---|---|---|---|---|
| DTE100 | RFID evaluation unit | PROFIBUS DP | 115 x 46.2 x 85 mm | ||
| DTE101 | RFID evaluation unit | PROFINET | 115 x 46.2 x 85 mm | ||
| DTE102 | RFID evaluation unit | EtherNet/IP | 115 x 46.2 x 85 mm | ||
| DTE103 | RFID evaluation unit | EtherCAT | 115 x 46.2 x 85 mm | ||
| DTE104 | RFID evaluation unit | TCP/IP | 115 x 46.2 x 85 mm |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-050072010 | Industrial Communication - Fieldbus components - AS-i gateways | $0.01 | |
| IFM-050072020 | Industrial Communication - Fieldbus components - AS-i gateways with PLC functionality | $0.01 | |
| IFM-050072030 | Industrial Communication - Fieldbus components - AS-i gateways with fail-safe PLC | $0.01 | |
| IFM-050072040 | Industrial Communication - Fieldbus components - IO-Link - DIN rail mountable masters for control cabinets | $0.01 | |
| IFM-050072050 | Industrial Communication - Fieldbus components - IO-Link - Field mountable masters for industrial automation | $0.01 | |
| IFM-050072055 | Industrial Communication - Fieldbus components - IO-Link - Field mountable masters for high pressure cleaning | $0.01 | |
| IFM-050072060 | Industrial Communication - Fieldbus components - RFID 125 kHz - Evaluation systems | $0.01 | |
| IFM-050072080 | Industrial Communication - Fieldbus components - RFID UHF - Readers | $0.01 | |
| IFM-050072090 | Industrial Communication - Fieldbus components - Absolute singleturn encoders | $0.01 | |
| IFM-050072100 | Industrial Communication - Fieldbus components - Absolute multiturn encoders | $0.01 |
