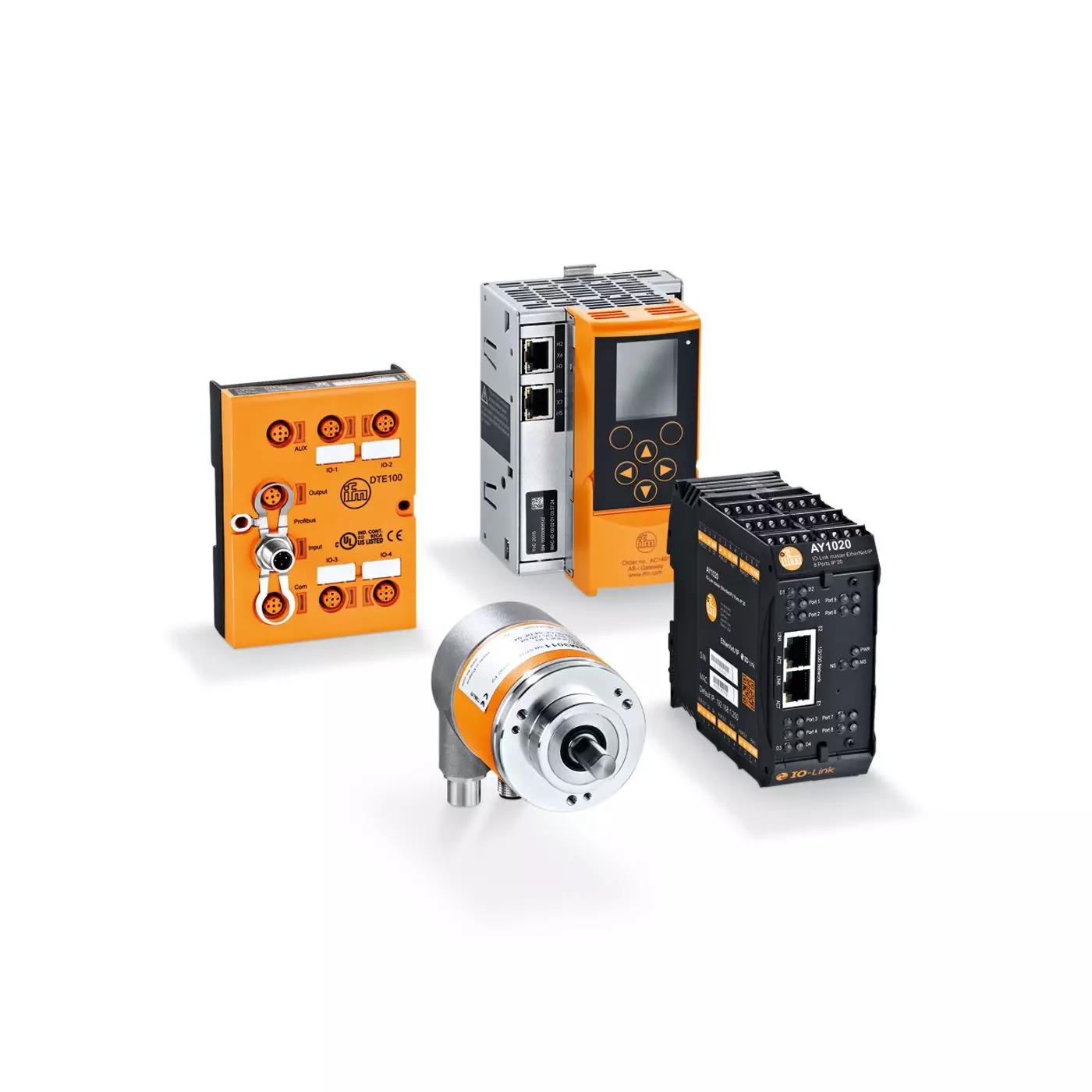

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Masters with fieldbus gateway
The IO-Link master is a gateway for the connection of up to eight IO-Link devices including sensors, valves or binary input/output modules. Four of the eight ports are designed as B ports and supply auxiliary energy for the connection of IO-Link actuators. The master transmits machine data, process parameters and diagnostic data to the controller. Excellent electromagnetic stability, a wide temperature range, a high protection rating and a robust housing qualify the device for use in harsh industrial environments. The product range includes interfaces to Profinet, EtherCat, Ethernet/IP or Profibus.
Features & Benefits
- For connection of up to eight IO-Link devices
- Reliable transmission of machine data, process parameters and diagnostic data to the controller
- With integrated fieldbus interface
- Wide operating temperature range and high protection rating
- Robust housing for use in harsh industrial environments
Additional Notes
| MPN | Product designation | Communication interface | Protection | IO-Link revision |
|---|---|---|---|---|
| AC5225 | AS-i input module | IO-Link, AS-i | IP 67 | 1 |
| AC6000 | IO-Link master StandardLine | IO-Link, AS-i | IP 65, IP 66, IP 67 | 1.1 |
| AC6002 | IO-Link master StandardLine | IO-Link, AS-i | IP 65, IP 66, IP 67 | 1.1 |
| AL1010 | IO-Link master PowerLine | IO-Link, PROFIBUS | IP 65, IP 67 | 1.1 |
| AL1100 | IO-Link master StandardLine | IO-Link, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1102 | IO-Link master StandardLine | IO-Link, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1120 | IO-Link master StandardLine | IO-Link, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| AL1122 | IO-Link master StandardLine | IO-Link, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| AL1300 | IO-Link master DataLine | IO-Link, MQTT JSON, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1302 | IO-Link master DataLine | IO-Link, MQTT JSON, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1320 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| AL1322 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| AL1330 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherCAT | IP 65, IP 66, IP 67 | 1.1 |
| AL1332 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherCAT | IP 65, IP 66, IP 67 | 1.1 |
| AL1340 | IO-Link master DataLine | IO-Link, MQTT JSON, Modbus TCP | IP 65, IP 66, IP 67 | 1.1 |
| AL1342 | IO-Link master DataLine | IO-Link, MQTT JSON, Modbus TCP | IP 65, IP 66, IP 67 | 1.1 |
| AL1350 | IO-Link master DataLine | IO-Link, MQTT JSON | IP 65, IP 66, IP 67 | 1.1 |
| AL1352 | IO-Link master DataLine | IO-Link, MQTT JSON | IP 65, IP 66, IP 67 | 1.1 |
| AL1370 | IO-Link master DataLine | IO-Link, MQTT JSON, POWERLINK | IP 65, IP 66, IP 67 | 1.1 |
| AL1372 | IO-Link master DataLine | IO-Link, MQTT JSON, POWERLINK | IP 65, IP 66, IP 67 | 1.1 |
| AL1400 | IO-Link master PerformanceLine | IO-Link, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1402 | IO-Link master PerformanceLine | IO-Link, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1420 | IO-Link master PerformanceLine | IO-Link, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| AL1422 | IO-Link master PerformanceLine | IO-Link, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| ZZ1060 | set USB IO-Link master | IO-Link, USB | IP 65, IP 67 | 1.1 |
| ZZ1100 | IO-Link master starter kit - PROFINET | |||
| ZZ1120 | IO-Link master starter kit - EtherNet/IP |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-050072010 | Industrial Communication - Fieldbus components - AS-i gateways | $0.01 | |
| IFM-050072020 | Industrial Communication - Fieldbus components - AS-i gateways with PLC functionality | $0.01 | |
| IFM-050072030 | Industrial Communication - Fieldbus components - AS-i gateways with fail-safe PLC | $0.01 | |
| IFM-050072040 | Industrial Communication - Fieldbus components - IO-Link - DIN rail mountable masters for control cabinets | $0.01 | |
| IFM-050072055 | Industrial Communication - Fieldbus components - IO-Link - Field mountable masters for high pressure cleaning | $0.01 | |
| IFM-050072060 | Industrial Communication - Fieldbus components - RFID 125 kHz - Evaluation systems | $0.01 | |
| IFM-050072070 | Industrial Communication - Fieldbus components - RFID 13.56 MHz - Evaluation systems | $0.01 | |
| IFM-050072080 | Industrial Communication - Fieldbus components - RFID UHF - Readers | $0.01 | |
| IFM-050072090 | Industrial Communication - Fieldbus components - Absolute singleturn encoders | $0.01 | |
| IFM-050072100 | Industrial Communication - Fieldbus components - Absolute multiturn encoders | $0.01 |
