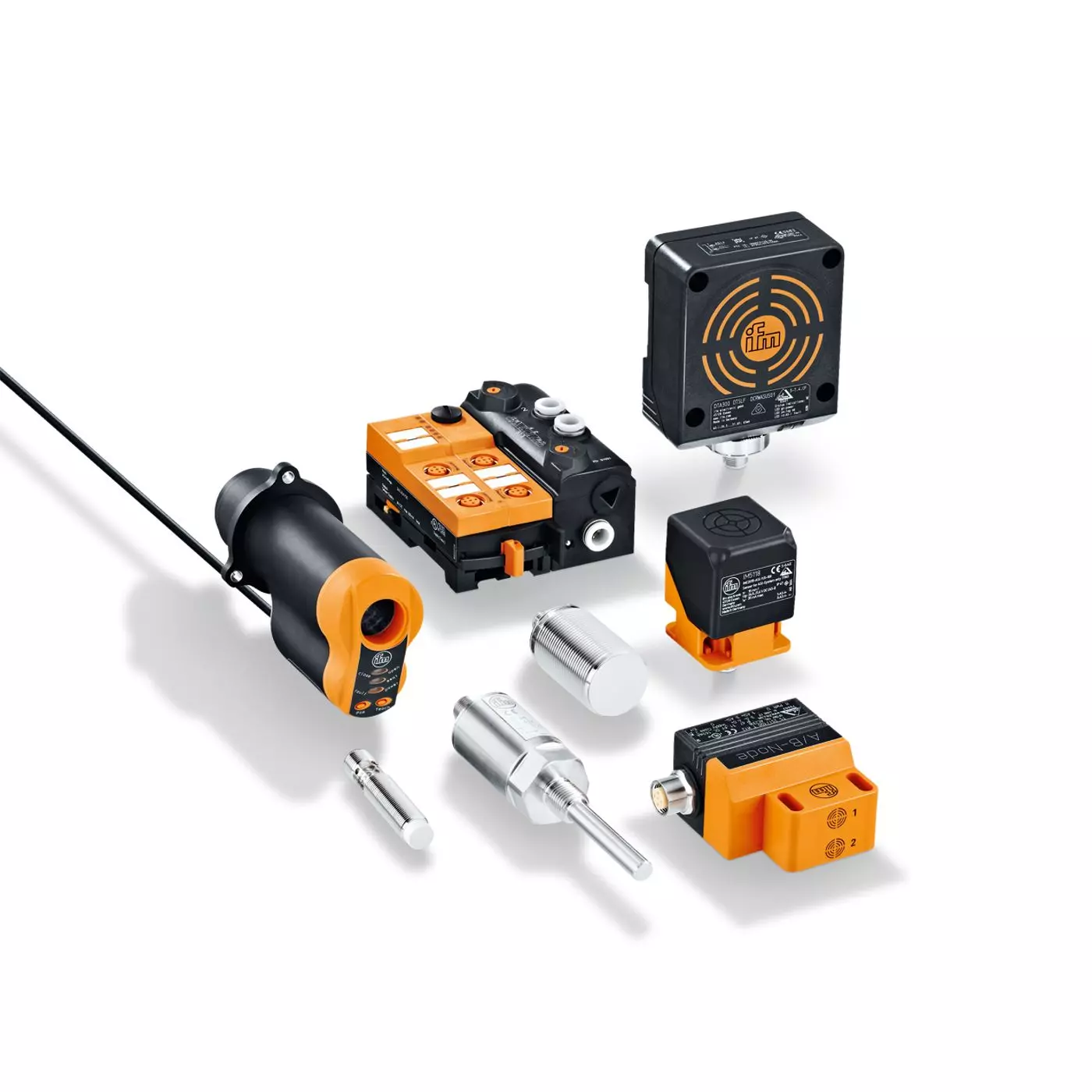

Dual inductive sensors for valve actuators

In industrial processes where liquids, air or gases are used, valves are needed for dosing and control. The dual inductive sensors with AS-Interface provide reliable feedback of the valve positions on pneumatic valve actuators and valves. They are operated in combination with a switch target (also called 'puck'). The puck is mounted directly on the actuator shaft. It is equipped with two metal screws that are mounted at different heights and offset by 90°. A dual inductive sensor with two integral sensors detects the upper or the lower metal screw and, thus, the "open" or "closed" position of the valve. The system operates without contact or wear and is self-cleaning. It is virtually resistant to external influence and insensitive to mechanical stress such as vibration and shock.

• Dual inductive sensor with output for solenoid valve
• Output for solenoid valve for triggering pneumatic drives
• Combined periphery / communication fault indication with wire break monitoring
• Up to 62 valve actuators can be triggered
• Industry standard M12 connection for simple wiring
