Headline

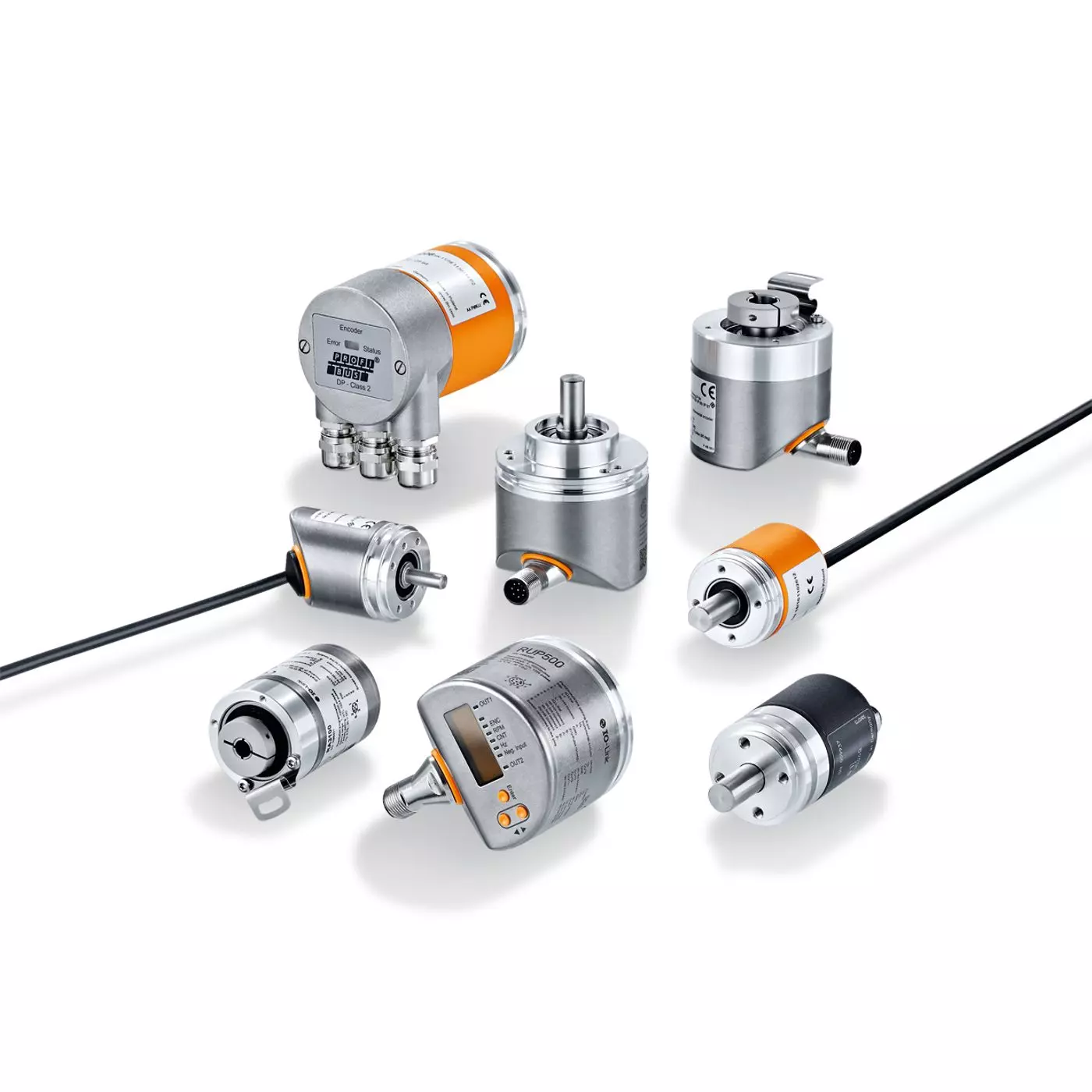

Absolute singleturn encoders
Absolute encoders provide an absolute numerical value for each angular position even over several revolutions. Singleturn encoders divide a mechanical revolution into a certain number of measuring steps. The measuring values are repeated after one complete revolution.
Features & Benefits
- Easy wiring and programming
- Versions with connector, cable or bus cap connection
- Versions as solid shaft with clamp/synchro flange or as hollow shaft
- Large variety of interfaces: SSI, PROFIBUS, PROFINET, CANopen or DeviceNet
Additional Notes
| MPN | Function principle | Dimensions | Shaft design | Shaft diameter | Resolution |
|---|---|---|---|---|---|
| RN3001 | absolute | Ø 58 / L = 99 mm | solid shaft | 10 mm | 8192 steps; 13 bit |
| RN6066 | absolute | Ø 89 / L = 116 mm | solid shaft | 10 mm | 8192 revolutions; 13 bit |
| RN7011 | absolute | Ø 58 / L = 83 mm | solid shaft | 6 mm | 8192 steps; 13 bit |
| RN7012 | absolute | Ø 58 / L = 99 mm | solid shaft | 10 mm | 8192 steps; 13 bit |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-015010010 | Motion Control Sensors - Encoders - Incremental encoders without display | $0.01 | |
| IFM-015010020 | Motion Control Sensors - Encoders - Incremental encoders with display | $0.01 | |
| IFM-015010040 | Motion Control Sensors - Encoders - Absolute multiturn encoders | $0.01 | |
| IFM-015010050 | Motion Control Sensors - Encoders - Incremental encoders for wet environments | $0.01 |
