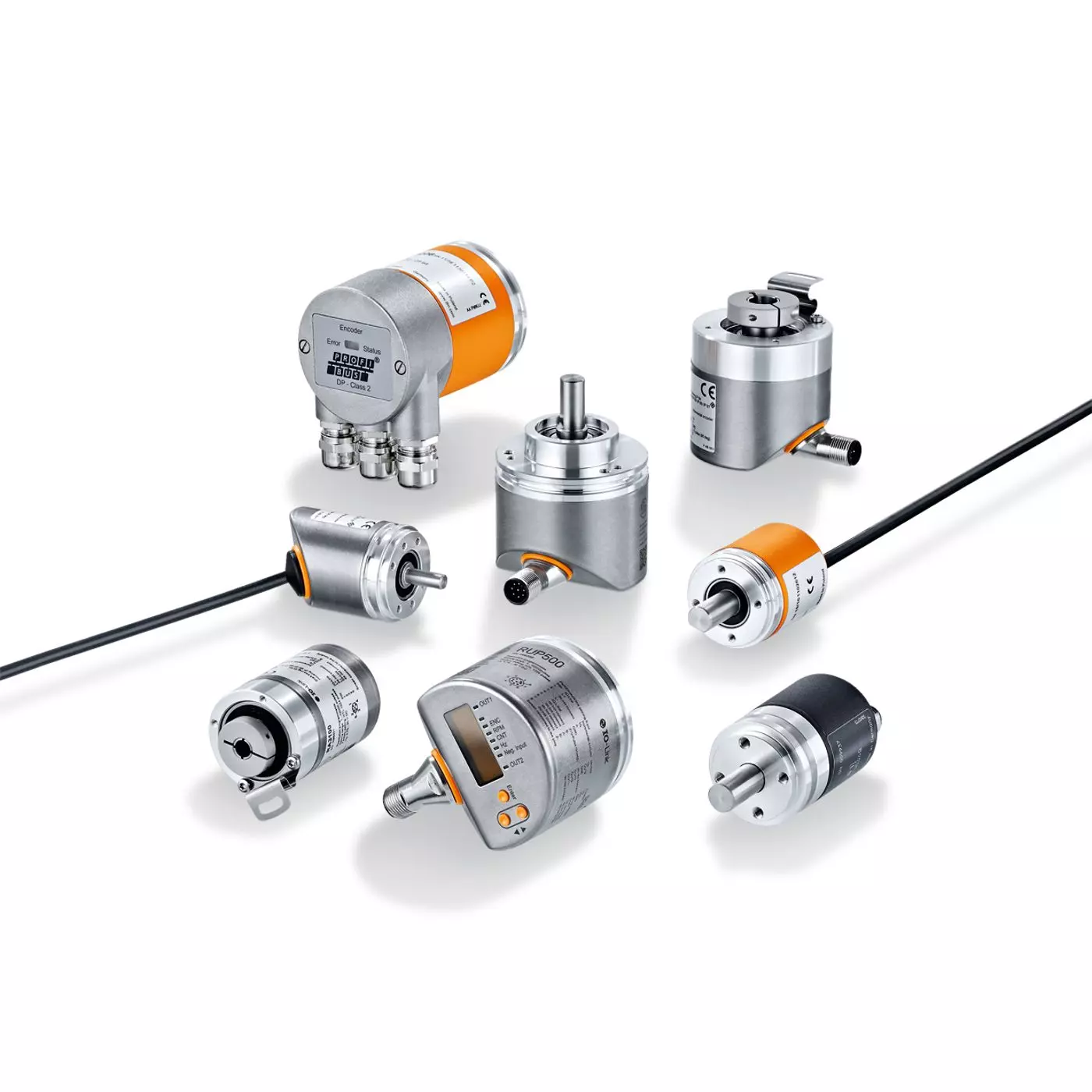

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Incremental encoders with display
Their high accuracy and robust design make encoders with magnetic detection an ideal choice for harsh industrial applications. Resolution and signal level can be programmed. The encoders have a wide voltage range of 4.5...30 V DC and are therefore suited for universal use. PerformanceLine encoders have an integrated signal evaluation for speed monitoring, counter functions and detection of the direction of rotation. The current position value is indicated on a bright LED display. The settings are made via operating keys on the unit and an intuitive menu navigation. Diagnostic and parameter data are reliably transferred via IO-Link.
Features & Benefits
- Programmable resolutions of 2...10,000
- Two-color electronic rotatable display of the process values
- Rotatable M12 connector can be used radially or axially
- Versions as solid shaft with clamp/synchro flange or as hollow shaft
- User-friendly communication via IO-Link
Additional Notes
| MPN | Function principle | Dimensions | Shaft design | Shaft diameter | Resolution |
|---|---|---|---|---|---|
| ROP520 | incremental | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 12 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| ROP521 | incremental | Ø 58 / L = 56.2 mm | hollow shaft open to one side | 12 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| ROP522 | incremental | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 15 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| ROP523 | incremental | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 9.525 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| ROP524 | incremental | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 15.875 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RUP500 | incremental | Ø 58 / L = 64 mm | solid shaft | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RVP510 | incremental | Ø 58 / L = 80.2 mm | solid shaft | 10 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
