Headline

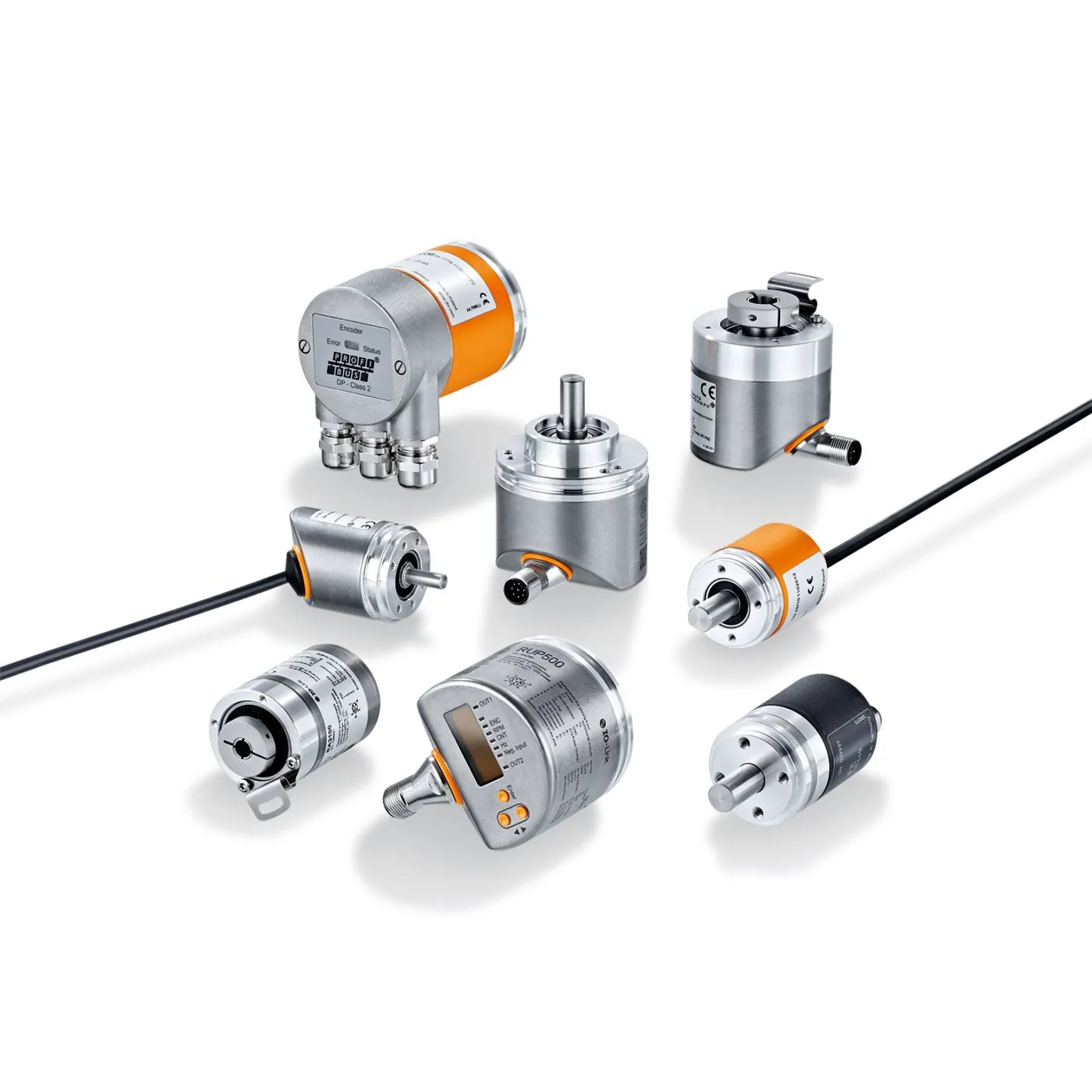

Incremental encoders
Incremental encoders generate a precisely defined number of pulses per revolution. They are a measure of the angular or linear distance moved. The phase difference between the signals A and B, which are shifted by 90 °, allows evaluation of the direction of rotation.
Features & Benefits
- Versions as solid shaft with clamp/synchro flange or as hollow shaft
- Resolution 2 to 10,000 pulses
- Cable entry for axial and radial use
- High protection rating for the requirements of harsh industrial environments
Additional Notes
| MPN | Function principle | Dimensions | Shaft design | Shaft diameter | Resolution |
|---|---|---|---|---|---|
| RA3100 | incremental | Ø 36.5 / L = 58.5 mm | hollow shaft open to one side | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RA3101 | incremental | Ø 36.5 / L = 58.5 mm | hollow shaft open to one side | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RA3102 | Ø 36.5 / L = 58.5 mm | hollow shaft open to one side | 12 mm | 1...10000; (configurable; Factory setting: 1024) resolution | |
| RA3103 | incremental | Ø 36.5 / L = 58.5 mm | hollow shaft open to one side | 10 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RA3104 | incremental | Ø 36.5 / L = 58.5 mm | hollow shaft open to one side | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RA3110 | incremental | Ø 42 / L = 79.5 mm | hollow shaft open to one side | 12 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RA3500 | incremental | Ø 36.5 / L = 58.5 mm | hollow shaft open to one side | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RA3501 | incremental | Ø 36.5 / L = 58.5 mm | hollow shaft open to one side | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RB3100 | incremental | Ø 36.5 / L = 65 mm | solid shaft | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RB3500 | incremental | Ø 36.5 / L = 65 mm | solid shaft | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RMU100 | absolute | Ø 58 / L = 63.5 mm | solid shaft | 6 mm | 8192 steps; 16 revolutions; 13 bit |
| RMU200 | absolute | Ø 58 / L = 63.5 mm | solid shaft | 6 mm | 8192 steps; 16 revolutions; 13 bit |
| RMU400 | absolute | Ø 58 / L = 63.5 mm | solid shaft | 6 mm | 4096 steps; 4096 revolutions |
| RO3100 | incremental | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 12 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RO3101 | incremental | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 12 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RO3102 | incremental | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 15 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RO3103 | incremental | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 9.525 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RO3104 | incremental | Ø 58.5 / L = 69 mm | hollow shaft open to one side | 15.875 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RO3110 | incremental | Ø 58.5 mm | hollow shaft open to one side | 15 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RO3500 | incremental | Ø 58.5 / L = 68.6 mm | hollow shaft open to one side | 12 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RO3501 | incremental | Ø 58.5 / L = 68.6 mm | hollow shaft open to one side | 12 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RU3100 | incremental | Ø 58 / L = 63.5 mm | solid shaft | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RU3110 | incremental | Ø 58 / L = 63.5 mm | solid shaft | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RU3500 | incremental | Ø 58 / L = 63.5 mm | solid shaft | 6 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RV3100 | incremental | Ø 58 / L = 79.5 mm | solid shaft | 10 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RV3110 | incremental | Ø 58 / L = 79.5 mm | solid shaft | 10 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
| RV3500 | incremental | Ø 58 / L = 79.5 mm | solid shaft | 10 mm | 1...10000; (configurable; Factory setting: 1024) resolution |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-015010020 | Motion Control Sensors - Encoders - Incremental encoders with display | $0.01 | |
| IFM-015010030 | Motion Control Sensors - Encoders - Absolute singleturn encoders | $0.01 | |
| IFM-015010040 | Motion Control Sensors - Encoders - Absolute multiturn encoders | $0.01 | |
| IFM-015010050 | Motion Control Sensors - Encoders - Incremental encoders for wet environments | $0.01 |
