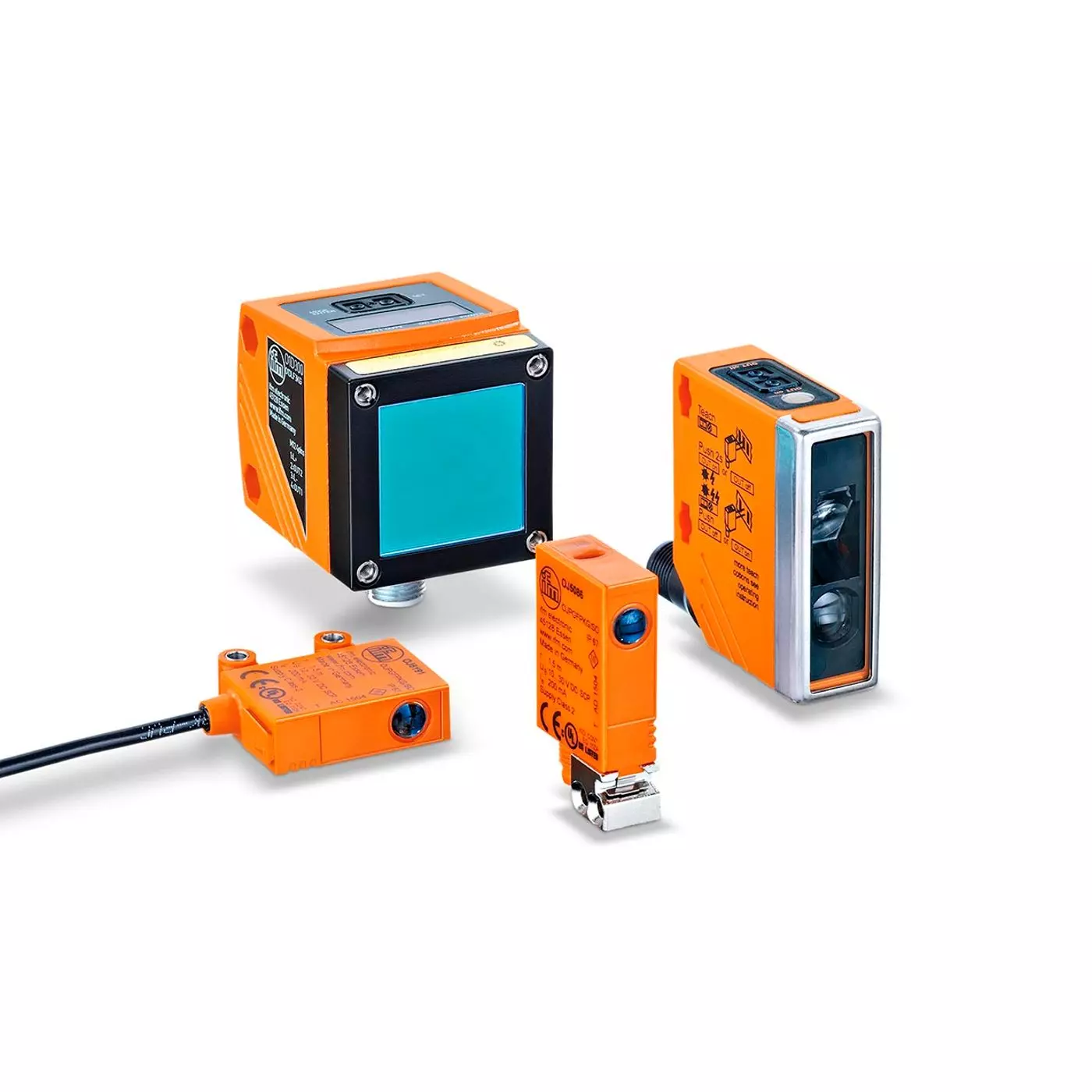

Position Sensors - Application specific - Laser distance sensors for non-contact measurement - Type O1D
Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Non-contact level measurement
The photoelectric O1D level sensor detects bulk materials and opaque liquids without contact by means of the PMD-based time-of-flight principle (PMD = Photonic Mixer Device).
Thanks to its long range, the sensor can be installed at a safe distance from the material to be detected.
The parameters, the switching function and the reference filling level can be set with the help of the buttons and display on the unit.
Features & Benefits
- Reliable optical level measurement with high ranges up to 9.8 m
- Scalable measuring range and window function
- Two switching outputs, one of them programmable as analog output
- Extensive range of mounting components
Additional Notes
| MPN | Product designation | Range | Dimensions | Output function | Switching frequency |
|---|---|---|---|---|---|
| O1D300 | Optical level sensor | 59 x 42 x 52 mm | normally open / closed; (programmable); analog |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010090010 | Position Sensors - Application specific - High-resolution color sensors - Type O5C | $0.01 | |
| IFM-010090020 | Position Sensors - Application specific - Contrast sensors - Type O5K | $0.01 | |
| IFM-010090030 | Position Sensors - Application specific - Clear object detection sensors - Type O5G and OJ | $0.01 |
