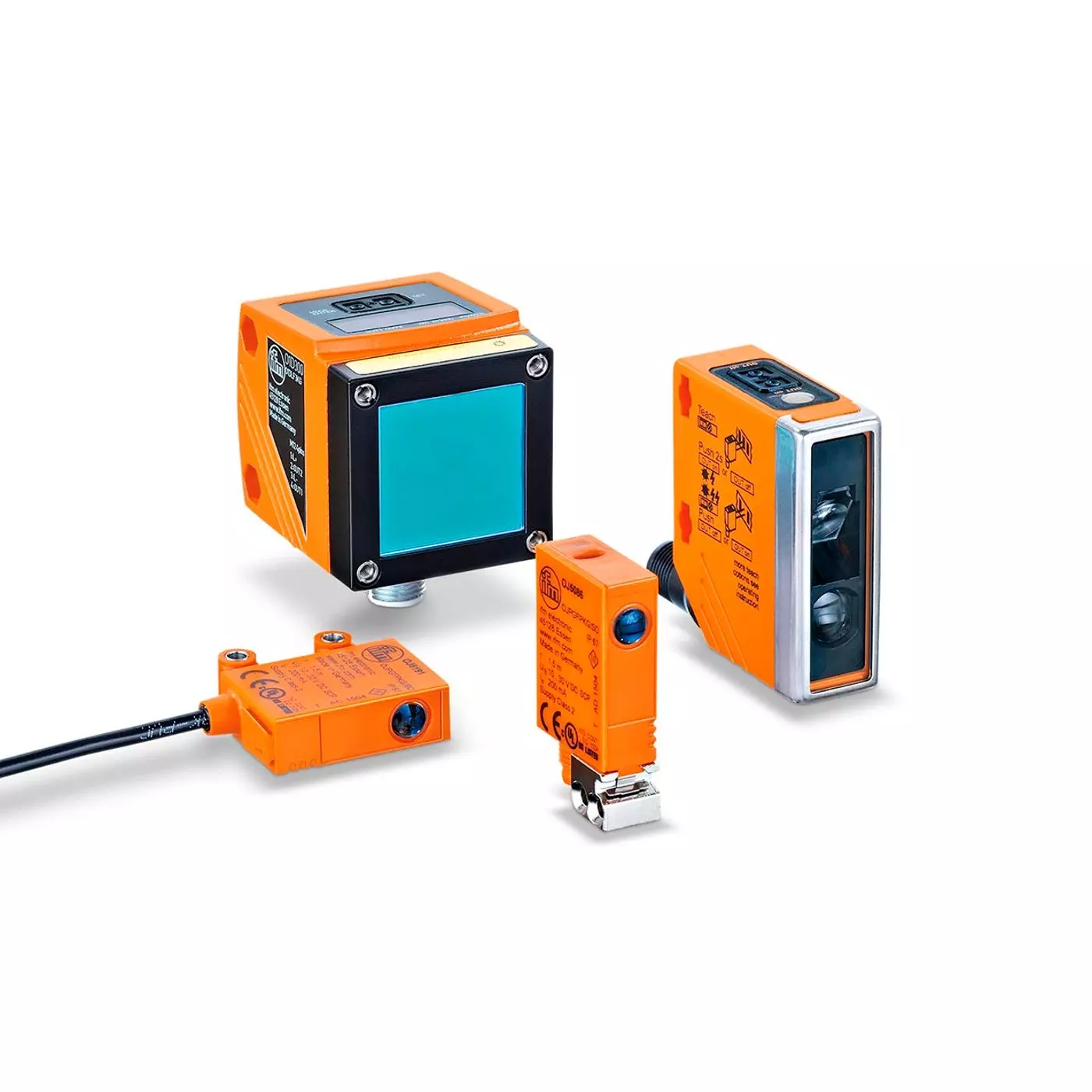

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Contrast sensors
With the O5 contrast sensor, print marks and very flat objects can be detected easily and reliably.
During setting in the application, the sensor automatically selects the colour from the three transmitter colours with which there is the greatest contrast. Light-on / dark-on mode and sensitivity are set via pushbuttons on the unit.
Thanks to its high switching frequency, the contrast sensor also offers reliable operation in applications with a short mark-to-space ratio.
A wide range of system components ensures easy and safe integration into the application.
Features & Benefits
- RGB light source, highest contrast color selected during teach-in
- Setting process saves time and cost during set-up
- Reliable detection of print marks and particularly flat objects
- High switching frequency for fast processes
- Extensive range of system components for easy and secure mounting
Additional Notes
| MPN | Product designation | Range | Dimensions | Output function | Switching frequency |
|---|---|---|---|---|---|
| O5K500 | Contrast sensor | 18...22 mm | 56 x 18.2 x 46.8 mm | light-on/dark-on mode; (programmable) | 10000 Hz |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010090010 | Position Sensors - Application specific - High-resolution color sensors - Type O5C | $0.01 | |
| IFM-010090030 | Position Sensors - Application specific - Clear object detection sensors - Type O5G and OJ | $0.01 | |
| IFM-010090040 | Position Sensors - Application specific - Laser distance sensors for non-contact measurement - Type O1D | $0.01 |
