Headline

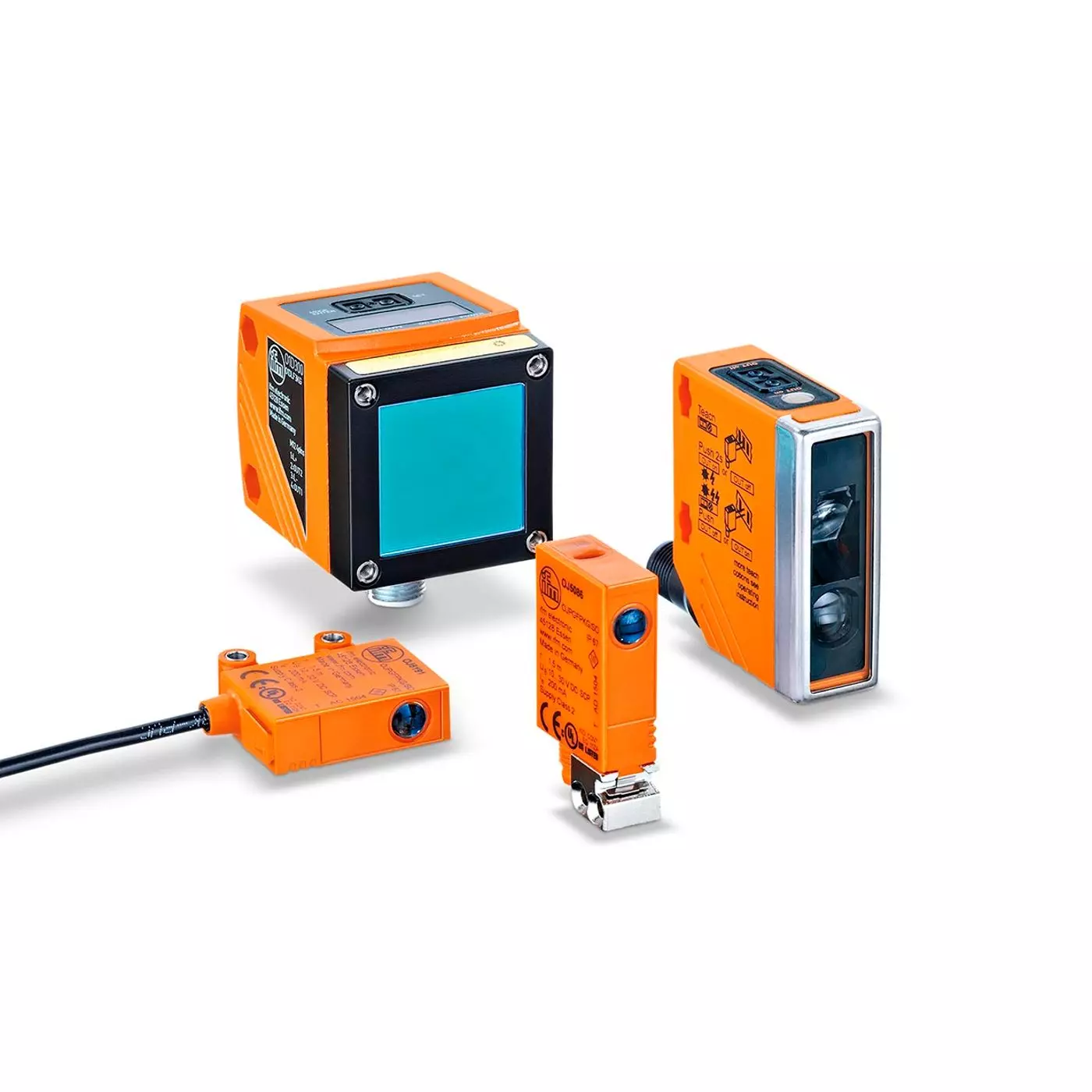

Glass and film detection
Sensors for the detection of transparent objects consist of a retro-reflective sensor with polarisation filter and a very fine prismatic reflector. They safely detect glass, film, PET bottles or transparent packaging and can be used for counting bottles or glasses or monitoring film for tear. Hence, they are mainly used in the food, beverage, and pharmaceutical industries.
The sensors operate with visible red light. This facilitates alignment during set-up. Thanks to their high switching frequency they are particularly suited for very fast processes.
Light-on / dark-on mode and sensitivity are set via pushbuttons on the unit.
Features & Benefits
- Setting process saves time and cost during set-up
- Automatic switch point adjustment in case of soiling
- High switching frequency for fast processes
- Extensive range of system components for easy and secure mounting
- Visible red light for simple alignment
Additional Notes
MPN | Product designation | Range | Dimensions | Output function | Switching frequency |
---|---|---|---|---|---|
O5G500 | Retro-reflective sensor for the detection of transparent objects | 56 x 18.2 x 46.8 mm | light-on/dark-on mode; (programmable) | 1500 Hz | |
OJ5085 | Retro-reflective sensor for the detection of transparent objects | 35 x 24 x 11 mm | light-on/dark-on mode; (programmable) | 2000 Hz | |
OJ5086 | Retro-reflective sensor for the detection of transparent objects | 35 x 11 x 24 mm | light-on/dark-on mode; (programmable) | 2000 Hz | |
OJ5185 | Retro-reflective sensor for the detection of transparent objects | 35 x 24 x 11 mm | light-on/dark-on mode; (programmable) | 2000 Hz | |
OJ5186 | Retro-reflective sensor for the detection of transparent objects | 35 x 11 x 24 mm | light-on/dark-on mode; (programmable) | 2000 Hz | |
OJ5189 | Retro-reflective sensor for the detection of transparent objects | 35 x 11 x 24 mm | light-on/dark-on mode; (programmable) | 2000 Hz | |
OJ5190 | Retro-reflective sensor for the detection of transparent objects | 35 x 24 x 11 mm | light-on/dark-on mode; (programmable) | 2000 Hz | |
OJ5191 | Retro-reflective sensor | 35 x 11 x 24 mm | light-on/dark-on mode; (programmable) | 2000 Hz |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
IFM-010090010 | Position Sensors - Application specific - High-resolution color sensors - Type O5C | $0.01 | |
IFM-010090020 | Position Sensors - Application specific - Contrast sensors - Type O5K | $0.01 | |
IFM-010090040 | Position Sensors - Application specific - Laser distance sensors for non-contact measurement - Type O1D | $0.01 |
