Headline

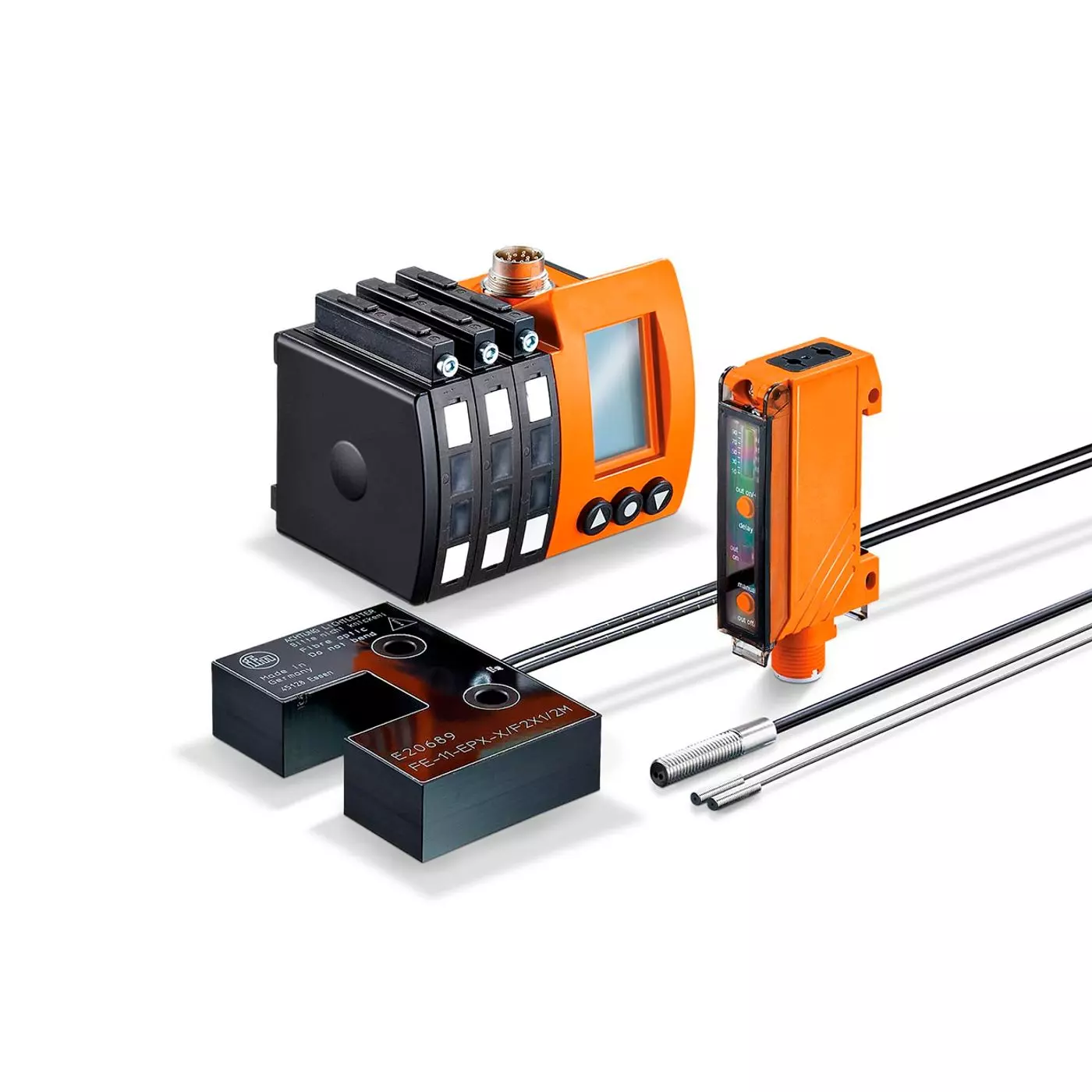

Glass fibre optics
Fibre optic systems are used where mounting space for photoelectric standard sensors is restricted. The evaluation unit and the fibre optics are mounted separately. These systems can therefore be installed in places where access is difficult.
Fibre optic systems are designed as through-beam or diffuse reflection sensors.
Fibre optics made of silicate glass are more resistant to heat, ageing and chemicals than acrylic fibre optics. They do not change their photoelectric response when they are bent. Glass fibre optic sensors cannot be cut to length by the user.
Features & Benefits
- Resistant to various aggressive chemicals
- Small bending radius
- For installation with limited mounting space
- Operation as through-beam sensor or diffuse reflection sensor
- Different designs and sensing heads for a large variety of applications
Additional Notes
| MPN | Product designation | Fiber head material | Fiber sheath material | Fiber material | Total length |
|---|---|---|---|---|---|
| E20051 | diffuse reflection sensor | aluminum | PVC | glass | 600 mm |
| E20052 | diffuse reflection sensor | aluminum | PVC | glass | 600 mm |
| E20053 | diffuse reflection sensor | stainless steel (1.4305 / 303) | PVC | glass | 600 mm |
| E20054 | diffuse reflection sensor | aluminum | PVC | glass | 600 mm |
| E20055 | diffuse reflection sensor | aluminum | aluminum | glass | 600 mm |
| E20056 | diffuse reflection sensor | aluminum | aluminum | glass | 600 mm |
| E20057 | diffuse reflection sensor | stainless steel (1.4305 / 303) | aluminum | glass | 600 mm |
| E20058 | diffuse reflection sensor | aluminum | aluminum | glass | 600 mm |
| E20059 | Through-beam sensor | aluminum | PVC | glass | 600 mm |
| E20060 | Through-beam sensor | aluminum | PVC | glass | 600 mm |
| E20061 | Through-beam sensor | stainless steel (1.4305 / 303) | PVC | glass | 600 mm |
| E20062 | Through-beam sensor | aluminum | PVC | glass | 600 mm |
| E20071 | diffuse reflection sensor | aluminum | aluminum | glass | 1000 mm |
| E20072 | diffuse reflection sensor | aluminum | aluminum | glass | 1500 mm |
| E20077 | diffuse reflection sensor | stainless steel (1.4305 / 303) | PVC | glass | 1000 mm |
| E20078 | diffuse reflection sensor | brass | glass | 26 mm | |
| E20080 | diffuse reflection sensor | aluminum | aluminum | glass | 1000 mm |
| E20083 | diffuse reflection sensor | aluminum | PVC | glass | 1000 mm |
| E20124 | diffuse reflection sensor | aluminum | aluminum | glass | 2000 mm |
| E20127 | Through-beam sensor | stainless steel (1.4305 / 303) | aluminum | glass | 600 mm |
| E20128 | Through-beam sensor | aluminum | aluminum | glass | 600 mm |
| E20129 | Through-beam sensor | aluminum | aluminum | glass | 600 mm |
| E20130 | Through-beam sensor | aluminum | aluminum | glass | 600 mm |
| E20136 | diffuse reflection sensor | aluminum | PVC | glass | 1500 mm |
| E20137 | diffuse reflection sensor | aluminum | aluminum | glass | 3000 mm |
| E20152 | diffuse reflection sensor | aluminum | aluminum | glass | 600 mm |
| E20156 | diffuse reflection sensor | aluminum | PVC | glass | 600 mm |
| E20157 | diffuse reflection sensor | aluminum | PVC | glass | 600 mm |
| E20160 | Through-beam sensor | aluminum | aluminum | glass | 600 mm |
| E20161 | Through-beam sensor | aluminum | aluminum | glass | 600 mm |
| E20164 | Through-beam sensor | aluminum | PVC | glass | 600 mm |
| E20165 | Through-beam sensor | aluminum | PVC | glass | 600 mm |
| E20199 | diffuse reflection sensor | stainless steel (1.4305 / 303) | glass | 24 mm | |
| E20219 | Through-beam sensor | aluminum | aluminum | glass | 2000 mm |
| E20228 | Through-beam sensor | aluminum | PVC | glass | 600 mm |
| E20229 | Through-beam sensor | aluminum | aluminum | glass | 3000 mm |
| E20230 | diffuse reflection sensor | stainless steel (1.4301 / 304) | PVC | glass | 600 mm |
| E20249 | cross section converter | brass | PVC | glass | 600 mm |
| E20269 | diffuse reflection sensor | stainless steel (1.4305 / 303) | glass | 24 mm | |
| E20339 | Through-beam sensor | aluminum | aluminum | glass | 2000 mm |
| E20351 | diffuse reflection sensor | aluminum | PVC | glass | 1500 mm |
| E20412 | diffuse reflection sensor | aluminum | PVC | glass | 220 mm |
| E20421 | diffuse reflection sensor | aluminum | aluminum | glass | 1800 mm |
| E20489 | diffuse reflection sensor | stainless steel (1.4305 / 303) | metal silicone | glass | 600 mm |
| E20492 | Through-beam sensor | stainless steel (1.4305 / 303) | metal silicone | glass | 600 mm |
| E20493 | Through-beam sensor | stainless steel (1.4305 / 303) | metal silicone | glass | 600 mm |
| E20494 | diffuse reflection sensor | stainless steel (1.4305 / 303) | metal silicone | glass | 600 mm |
| E20495 | diffuse reflection sensor | stainless steel (1.4305 / 303) | metal silicone | glass | 600 mm |
| E20500 | Through-beam sensor | stainless steel (1.4305 / 303) | metal silicone | glass | 1000 mm |
| E20505 | Through-beam sensor | stainless steel (1.4305 / 303) | metal silicone | glass | 600 mm |
| E20506 | Through-beam sensor | stainless steel (1.4305 / 303) | metal silicone | glass | 600 mm |
| E20507 | diffuse reflection sensor | stainless steel (1.4305 / 303) | metal silicone | glass | 600 mm |
| E20526 | diffuse reflection sensor | stainless steel (1.4305 / 303) | metal silicone | glass | 1500 mm |
| E20822 | diffuse reflection sensor | stainless steel (1.4305 / 303) | stainless steel (1.4305 / 303) | glass | 900 mm |
| E20823 | Through-beam sensor | stainless steel (1.4305 / 303) | stainless steel (1.4305 / 303) | glass | 900 mm |
| E20824 | diffuse reflection sensor | stainless steel (1.4305 / 303) | stainless steel (1.4305 / 303) | glass | 900 mm |
| E20825 | Through-beam sensor | stainless steel (1.4305 / 303) | stainless steel (1.4305 / 303) | glass | 900 mm |
| E20826 | diffuse reflection sensor | stainless steel (1.4305 / 303) | stainless steel (1.4305 / 303) | glass | 900 mm |
| E20827 | Through-beam sensor | stainless steel (1.4305 / 303) | stainless steel (1.4305 / 303) | glass | 900 mm |
| E20828 | Through-beam sensor | stainless steel (1.4305 / 303) | stainless steel (1.4305 / 303) | glass | 900 mm |
| E20829 | diffuse reflection sensor | stainless steel (1.4305 / 303) | stainless steel (1.4305 / 303) | glass | 900 mm |
| E20841 | diffuse reflection sensor | stainless steel (1.4305 / 303) | stainless steel (1.4305 / 303) | glass | 900 mm |
| E21153 | diffuse reflection sensor | stainless steel (1.4571/316Ti ) | metal silicone | glass | 2000 mm |
| E21154 | diffuse reflection sensor | stainless steel (1.4571/316Ti ) | metal silicone | glass | 3000 mm |
| E21155 | diffuse reflection sensor | stainless steel (1.4571/316Ti ) | metal silicone | glass | 5000 mm |
| E35061 | Fibre optics with stainless steel sheathing | CuNiZn | stainless steel | quartz / quartz | 2000 mm |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010080010 | Position Sensors - Fiber optic - Amplifiers for acrylic fibers - Type OBF | $0.01 | |
| IFM-010080020 | Position Sensors - Fiber optic - Amplifiers for glass fibers - Type OBF | $0.01 | |
| IFM-010080030 | Position Sensors - Fiber optic - Multi-channel amplifiers for acrylic fibers - Type OOF | $0.01 | |
| IFM-010080040 | Position Sensors - Fiber optic - Multi-channel amplifiers for glass fibers - Type OOF | $0.01 | |
| IFM-010080050 | Position Sensors - Fiber optic - Acrylic fibers | $0.01 | |
| IFM-010080070 | Position Sensors - Fiber optic - Glass fibers for high temperature | $0.01 |
