Headline

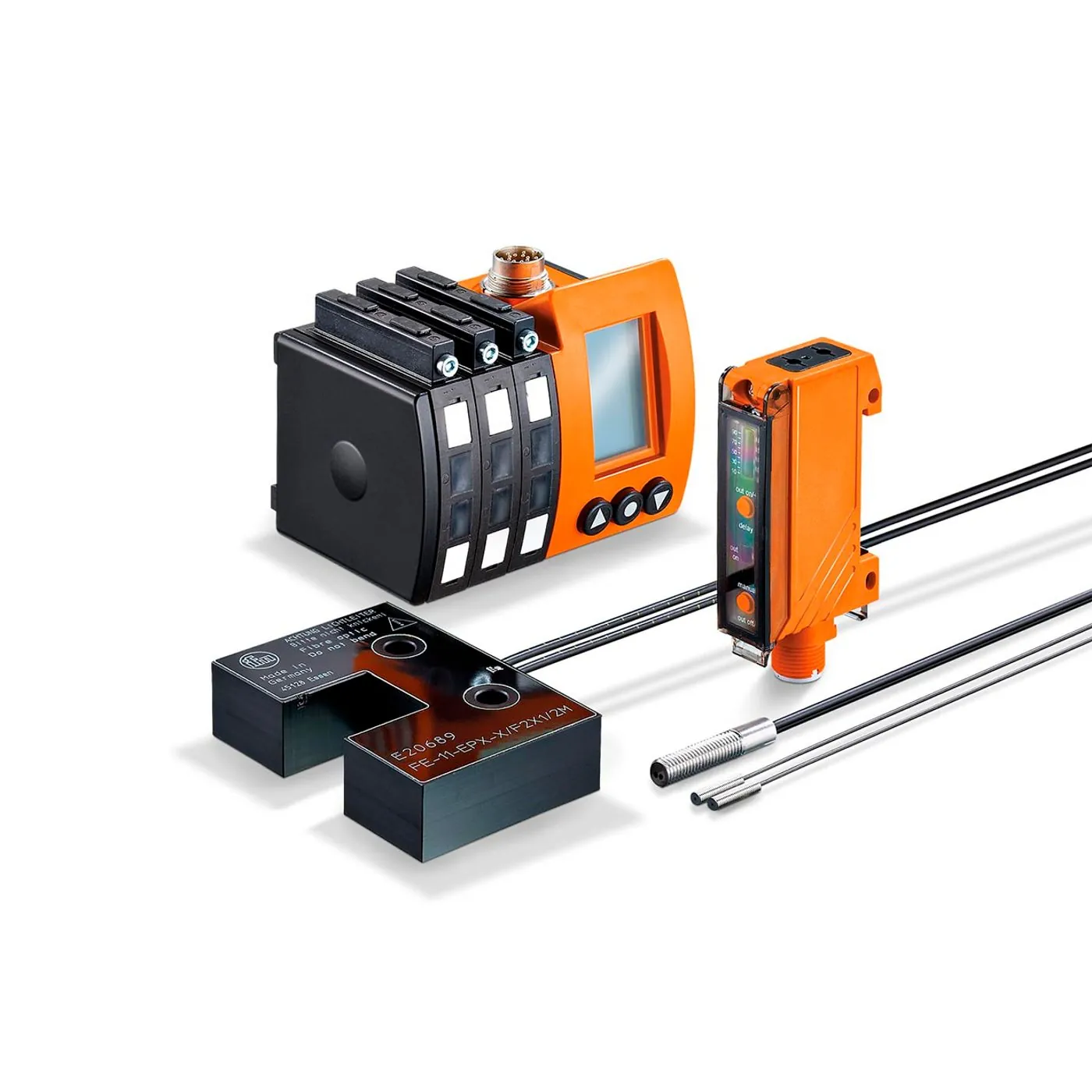

Fibre optic amplifiers for acrylic fibre optics
OBF fibre optic amplifiers for fibre optics in metal sheath with glass fibres are used when resistance to heat or aggressive chemicals is required.
The amplifiers can be mounted on a DIN rail or using fixing holes. Sensitivity, light-on/dark-on mode or measuring principle are set easily via pushbuttons on the unit. Highly visible LEDs support the user during set-up. During operation, they indicate the switching status, operation, excess gain and unstable zone.
For demanding applications extended functions are available, e.g., if the object does not stay in the detection zone long enough, it is possible to stretch the pulse time.
Features & Benefits
- High switching frequency for fast processes
- LED display to check operation, switching status and function
- Variable mounting options: DIN rail or free-standing mounting
- Easy parameter setting via teach button
- Operation with inexpensive acrylic fibers
Additional Notes
| MPN | Product designation | Dimensions | Material | Range min. | Range max. |
|---|---|---|---|---|---|
| OBF500 | Fiber-optic amplifier | 36 x 15 x 60 mm | PPE modified | 0 m - 0 mm | 2 m - 100 mm |
| OBF501 | Fiber-optic amplifier | 36 x 15 x 60 mm | PPE modified | 0 m - 0 mm | 2 m - 100 mm |
| OBF502 | Fiber-optic amplifier | 36 x 15 x 60 mm | PPE modified | 0 m - 0 mm | 2 m - 100 mm |
| OBF503 | Fiber-optic amplifier | 36 x 15 x 60 mm | PPE modified | 0 m - 0 mm | 2 m - 100 mm |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010080020 | Position Sensors - Fiber optic - Amplifiers for glass fibers - Type OBF | $0.01 | |
| IFM-010080030 | Position Sensors - Fiber optic - Multi-channel amplifiers for acrylic fibers - Type OOF | $0.01 | |
| IFM-010080040 | Position Sensors - Fiber optic - Multi-channel amplifiers for glass fibers - Type OOF | $0.01 | |
| IFM-010080050 | Position Sensors - Fiber optic - Acrylic fibers | $0.01 | |
| IFM-010080060 | Position Sensors - Fiber optic - Glass fibers | $0.01 | |
| IFM-010080070 | Position Sensors - Fiber optic - Glass fibers for high temperature | $0.01 |
