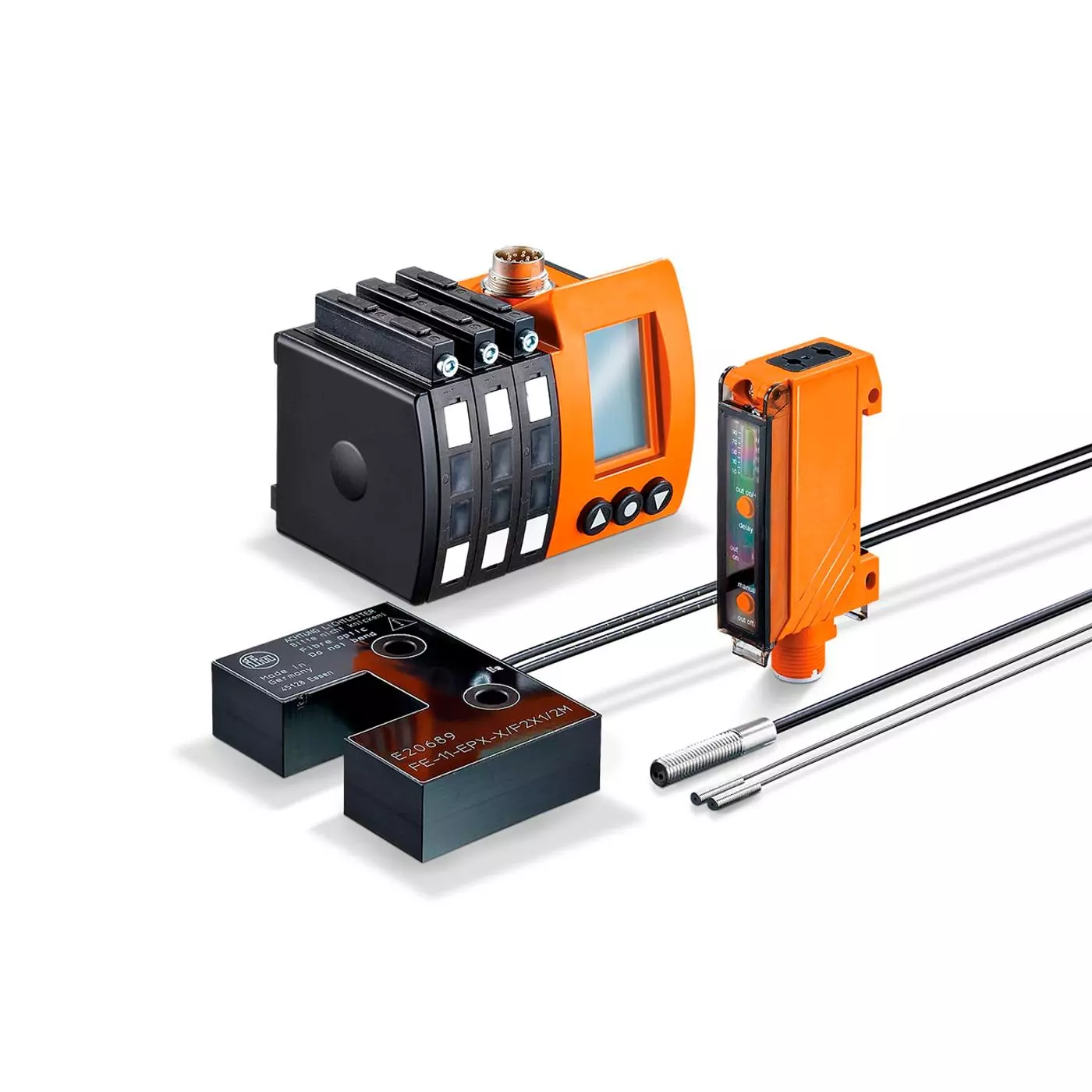

Multi-channel acrylic fibre-optic amplifiers
In applications in which several fibre optic sensors are required for position detection, the OO series multi-channel fibre-optic amplifier for fibre optics in plastic sheath with acrylic fibres represents a low-cost alternative to many individual fibre-optic amplifiers mounted side by side.
Thanks to its compact design the multi-channel fibre optic amplifier OO can be used in applications with limited mounting space. Mounting the sensor on a DIN rail and adapting the fibre optics only takes a few steps. Setting of the switching threshold, light-on / dark-on mode and output delay and selection of the desired channel is made easily by means of buttons on the amplifier.
A logical AND or OR conjunction of all channels is programmable. Mutual optical disturbance of the individual channels is excluded.
The OO fibre-optic amplifier is available with 2, 4, 6 or 8 channels.
- Easy, quick and secure mounting
- Display with graphic capability for easy set-up
- Precise detection of small parts
- Available as 2, 4, 6 or 8-channel versions
- Operation with inexpensive acrylic fibers
| MPN | Product designation | Dimensions | Material | Range min. | Range max. |
|---|---|---|---|---|---|
| OO5000 | Fiber-optic amplifier | 79.8 x 66.4 x 70.7 mm | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) | 0 mm | 3.8 m - 300 mm |
| OO5001 | Fiber-optic amplifier | 79.9 x 79.4 x 70.7 mm | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) | 0 mm | 3.8 m - 300 mm |
| OO5002 | Fiber-optic amplifier | 76.5 x 92.4 x 70.7 mm | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) | 0 mm | 3.8 m - 300 mm |
| OO5003 | Fiber-optic amplifier | 76.5 x 105.4 x 70.7 mm | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) | 0 mm | 3.8 m - 300 mm |
| OO5008 | Fiber-optic amplifier | 79.8 x 66.4 x 70.7 mm | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) | 0 mm | 3.8 m - 300 mm |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010080010 | Position Sensors - Fiber optic - Amplifiers for acrylic fibers - Type OBF | $0.01 | |
| IFM-010080020 | Position Sensors - Fiber optic - Amplifiers for glass fibers - Type OBF | $0.01 | |
| IFM-010080040 | Position Sensors - Fiber optic - Multi-channel amplifiers for glass fibers - Type OOF | $0.01 | |
| IFM-010080050 | Position Sensors - Fiber optic - Acrylic fibers | $0.01 | |
| IFM-010080060 | Position Sensors - Fiber optic - Glass fibers | $0.01 | |
| IFM-010080070 | Position Sensors - Fiber optic - Glass fibers for high temperature | $0.01 |
