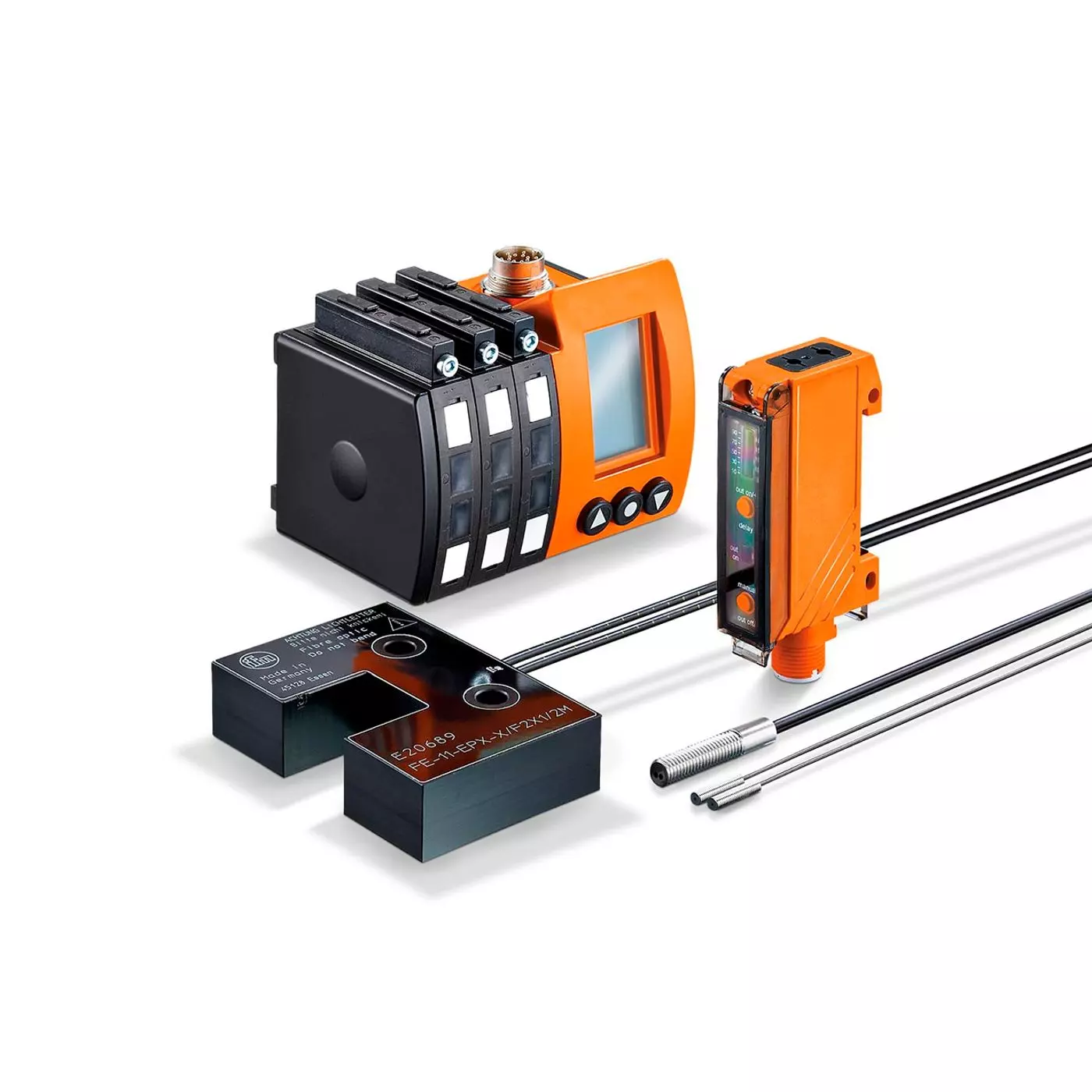

Multi-channel glass fibre-optic amplifiers
In applications in which several fibre optic sensors are required for position detection, the OO series multi-channel fibre-optic amplifier for fibre optics in metal sheath with glass fibres represents a low-cost alternative to many individual fibre-optic amplifiers mounted side by side.
Thanks to its compact design the multi-channel fibre optic amplifier OO can be used in applications with limited mounting space. Mounting the sensor on a DIN rail and adapting the fibre optics only takes a few steps. Setting of the switching threshold, light-on / dark-on mode and output delay and selection of the desired channel is made easily by means of buttons on the amplifier.
A logical AND or OR conjunction of all channels is programmable. Mutual photoelectric disturbance of the individual channels is excluded.
The OO fibre-optic amplifier is available with 2, 4, 6 or 8 channels.
- Easy, quick and secure mounting
- Display with graphic capability for easy set-up
- Operation with high-quality glass fiber optics for harsh industrial applications
- Precise detection of small parts
- Available as 2, 4, 6 or 8-channel versions
| MPN | Product designation | Dimensions | Material | Range min. | Range max. |
|---|---|---|---|---|---|
| OO5004 | Fiber-optic amplifier | 79.9 x 76.9 x 70.7 mm | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) | 0 mm | 0.4 m - 200 mm |
| OO5005 | Fiber-optic amplifier | 79.9 x 100.5 x 70.7 mm | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) | 0 mm | 0.4 m - 200 mm |
| OO5006 | Fiber-optic amplifier | 76.5 x 123.9 x 70.7 mm | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) | 0 mm | 0.4 m - 200 mm |
| OO5007 | Fiber-optic amplifier | 76.5 x 149 x 70.7 mm | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) | 0 mm | 0.4 m - 200 mm |
