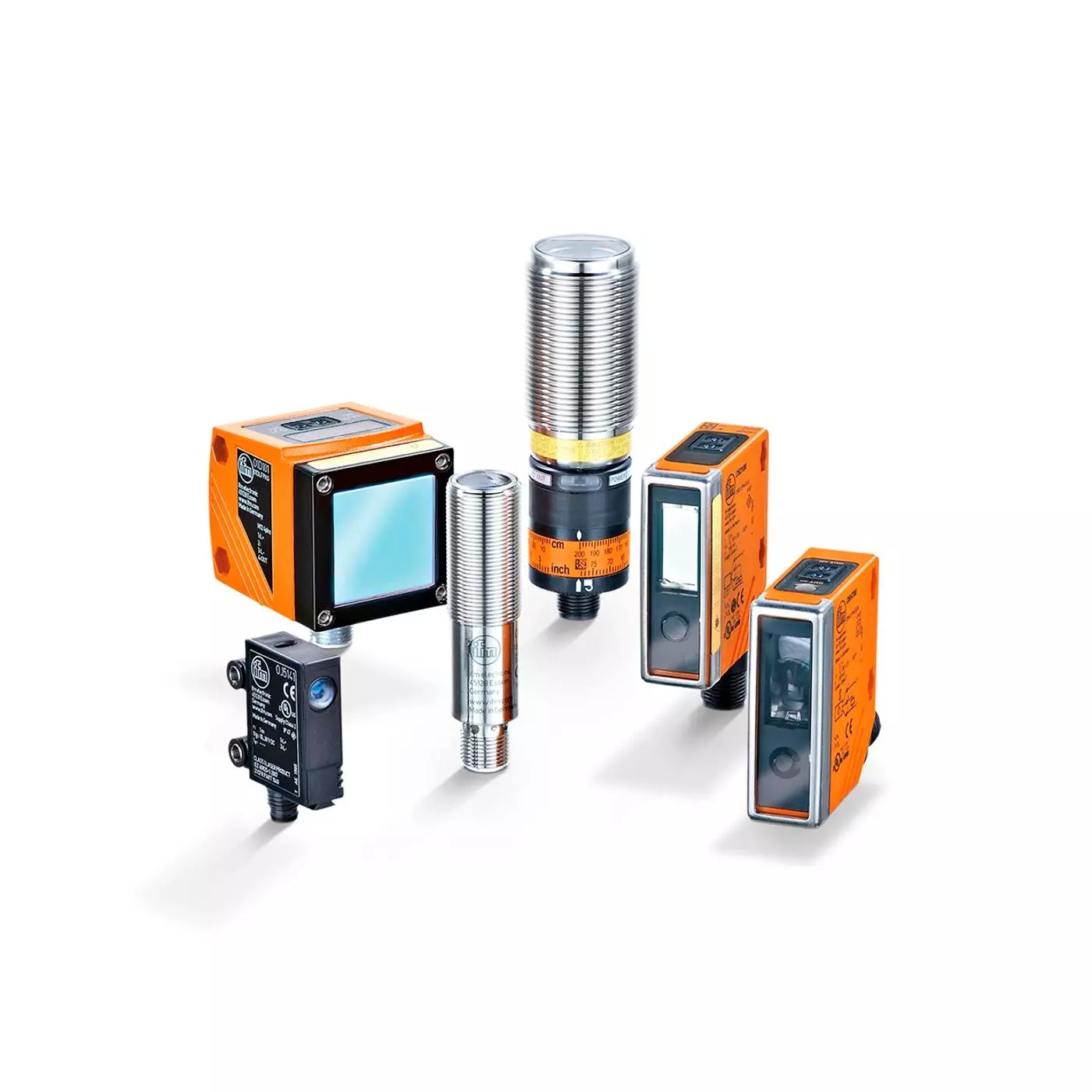

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Cooling and protection box for distance sensors
In case of ambient temperatures up to 180 °C, powerful electronics should be cooled to protect them from overheating. Using the cooling box, the distance sensor O1D can now also be used in hot applications, e.g. in the steel industry.
After connection to a cooling circuit via the standardised 3/8" tube connections, the temperature on the inside of the cooling box can be cooled down to an "electronics friendly" temperature by means of water and cold air.
If you screw off the tube connections, the box can be used as protection casing for very harsh industrial operating conditions.
Features & Benefits
- Use for ambient temperatures up to 180 °C
- Robust metal housing with integrated cooling circuit
- Water or air cooling possible
- Reliable protection against very harsh environmental conditions
- For distance sensors type O1D
Additional Notes
| MPN | Product designation | Dimensions | Material | Pressure rating | Ambient temperature |
|---|---|---|---|---|---|
| E21248 | Cooling box | 112 x 70 x 108 mm | housing: aluminum transparent anodized; cover: aluminum black anodized; Front framework: aluminum black anodized; front lens: float glass; Cable gland: brass nickel-plated; nozzle: brass nickel-plated; sealing: FKM | 10 bar | -10...180 °C |
| E21308 | Front framework | 95 x 54 x 4 mm | Front framework: aluminum black anodized; front lens: float glass | 10 bar | -10...180 °C |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010075010 | Position Sensors - Distance - O1D laser distance sensors for industrial automation | $0.01 | |
| IFM-010075020 | Position Sensors - Distance - O1D retroreflective laser distance sensors for long range applications | $0.01 | |
| IFM-010075030 | Position Sensors - Distance - OID laser distance sensors with adjustment dial | $0.01 | |
| IFM-010075040 | Position Sensors - Distance - OID laser distance sensors for harsh environments | $0.01 | |
| IFM-010075050 | Position Sensors - Distance - O5D laser distance sensors with display | $0.01 | |
| IFM-010075070 | Position Sensors - Distance - OGD precision distance sensor for error proofing applications | $0.01 | |
| IFM-010075080 | Position Sensors - Distance - Distance sensors - PMD Profiler for object profile checking | $0.01 |
