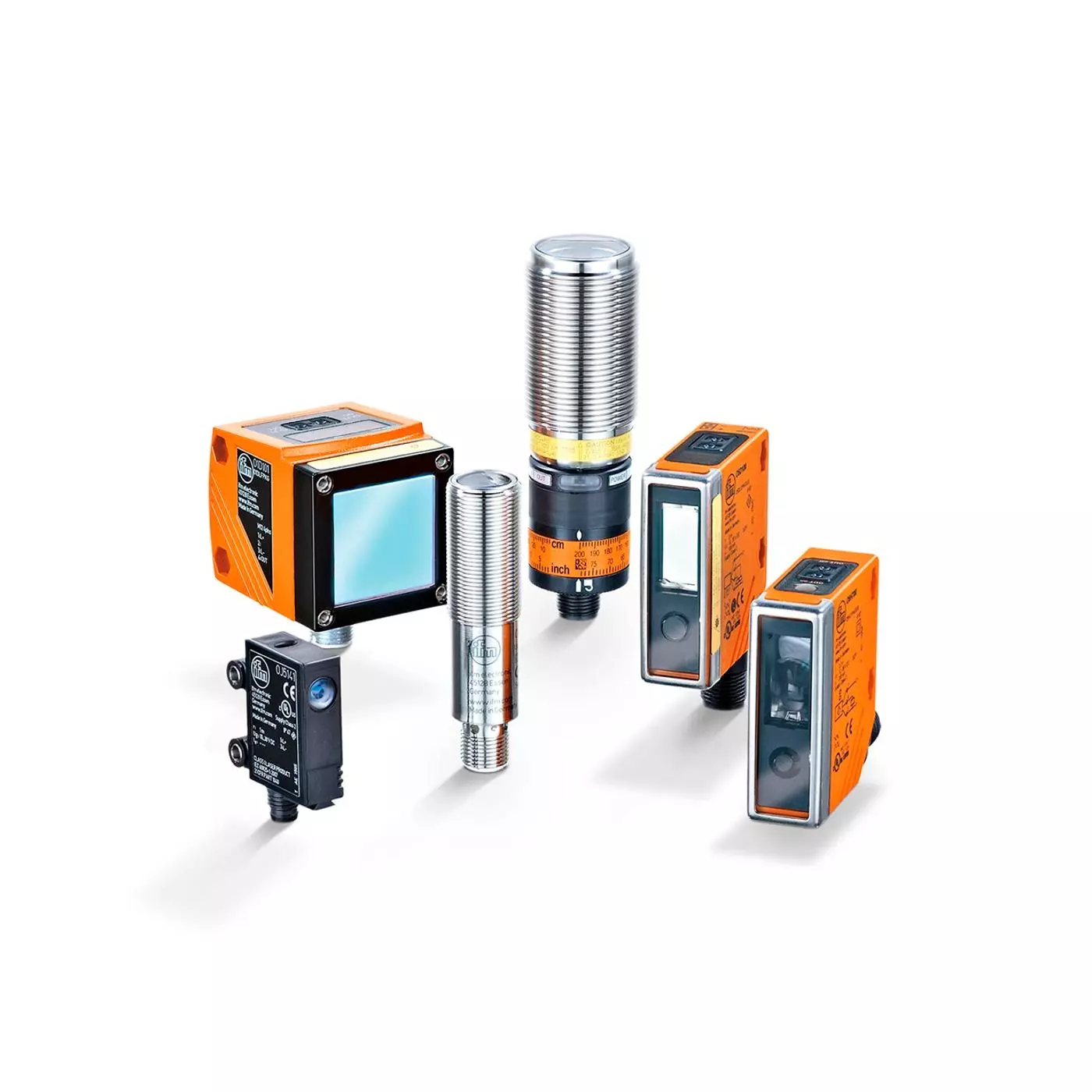

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Distance sensors of type O1D with 75 m range
The O1D106 is a distance sensor with time-of-flight measurement based on PMD technology (PMD = Photonic Mixer Device). With the reflectors available as an option distances from 1 m to 75 m can be measured. For example, the sensor can be used for position monitoring of cranes to protect the carried loads against collision.
The sensor is resistant to extraneous light and can be used in outdoor applications or workshops where daylight hits the sensor or target from above.
The range of accessories includes large prismatic reflectors as well as a mounting and fine adjustment unit for easy fixing and precise alignment of the sensor.
Features & Benefits
- Immune to ambient light up to 100 klx
- Two switching outputs, one of them programmable as analog output
- Excellent price/performance ratio
- Scalable measuring range and window function
- Extensive range of system components for easy installation and precise fine adjustment
Additional Notes
| MPN | Product designation | Measuring range | Dimensions | Output function | Laser protection class |
|---|---|---|---|---|---|
| O1D106 | Photoelectric distance sensor | 1...75 m | 59 x 42 x 52 mm | normally open / closed; (programmable); analog | 2 |
| O1D209 | Photoelectric distance sensor | 1...100 m | 59 x 42 x 52 mm | normally open / closed; (programmable); analog | 2 |
