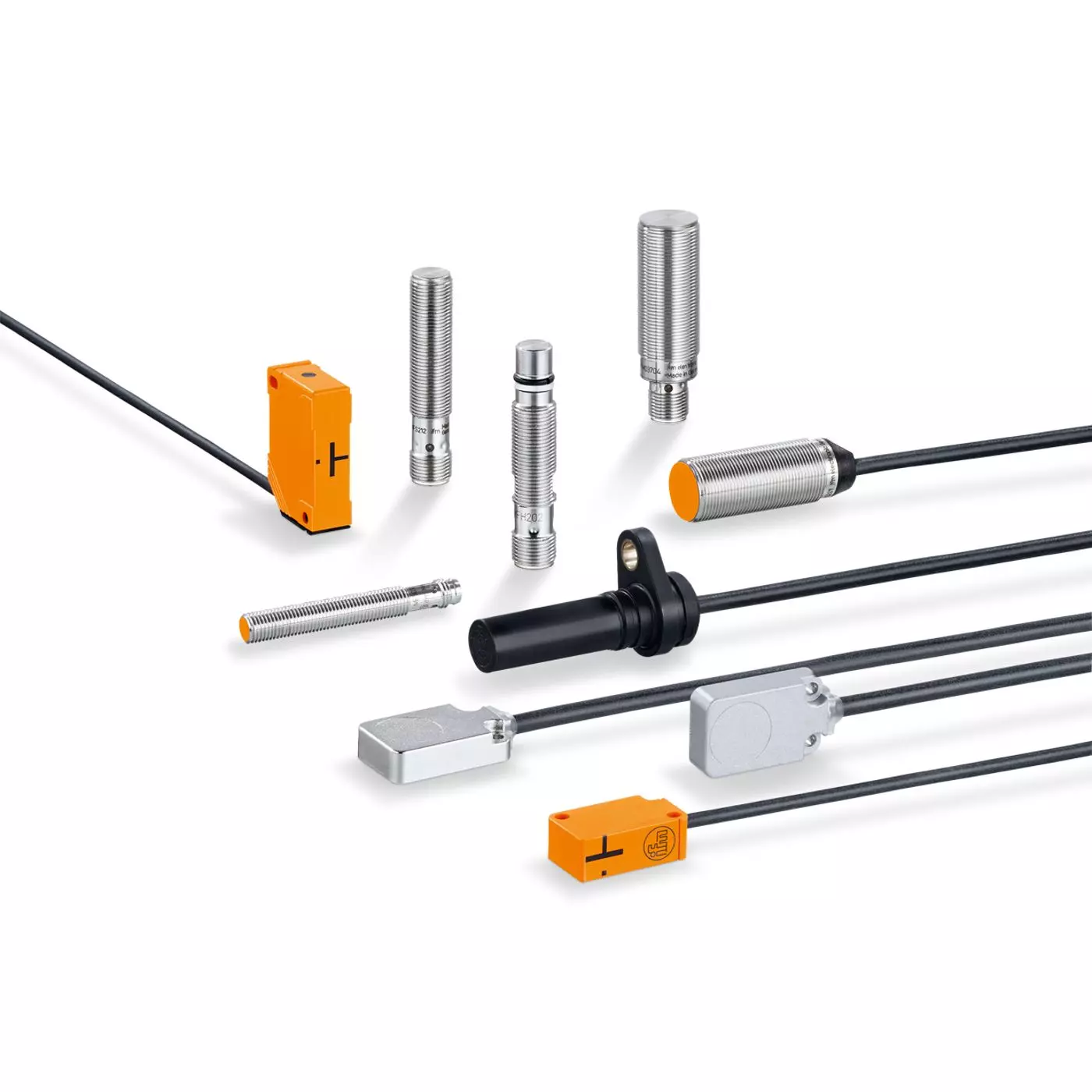

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Pressure-resistant sensors
The pressure-resistant position sensors are typically used for piston detection in hydraulic cylinders. They only detect ferromagnetic metals. Besides use as a limit switch in hydraulic cylinders, the sensors can also be used on other hydraulic components such as valves or pumps.
The one-piece full-metal housing made from high-grade stainless steel is resistant to pressure peaks up to 1,000 bar and withstands up to 10 million pressure cycles. A wide operating temperature range and high protection rating allow the use of the sensors in extremely harsh industrial environments.
Features & Benefits
- Pressure-resistant up to 500 bar
- Metal sensing face for heavy duty
- High bursting pressure
- Housing design to industrial standard
- Lifespan of more than 10 million pressure cycles
Additional Notes
| MPN | Sensing range | Output function | Output | Dimensions | Connection |
|---|---|---|---|---|---|
| M9H200 | 2 mm | normally open | DC PNP | M14 x 1.5 / L = 53 mm | M12 Connector |
| MFH200 | 1.8 mm | normally open | DC PNP | M12 x 1 / L = 93 mm | M12 Connector |
| MFH202 | 1.8 mm | normally open | DC PNP | M12 x 1 / L = 60 mm | M12 Connector |
| MFH204 | 1.8 mm | normally closed | DC PNP | M12 x 1 / L = 60 mm | M12 Connector |
| MFH205 | 1.8 mm | normally open | DC PNP | M12 x 1 / L = 41 mm | 2 m PUR-Cable |
| MFH209 | 1.8 mm | normally open / closed | DC PNP | M12 x 1 / L = 60 mm | M12 Connector |
| MFH213 | 1.8 mm | normally open | DC PNP | M12 x 1 / L = 41 mm | 0.21 m PUR-Cable |
| MFH214 | 1.8 mm | normally open | DC PNP | M12 x 1 / L = 41 mm | 5 m PUR-Cable |
