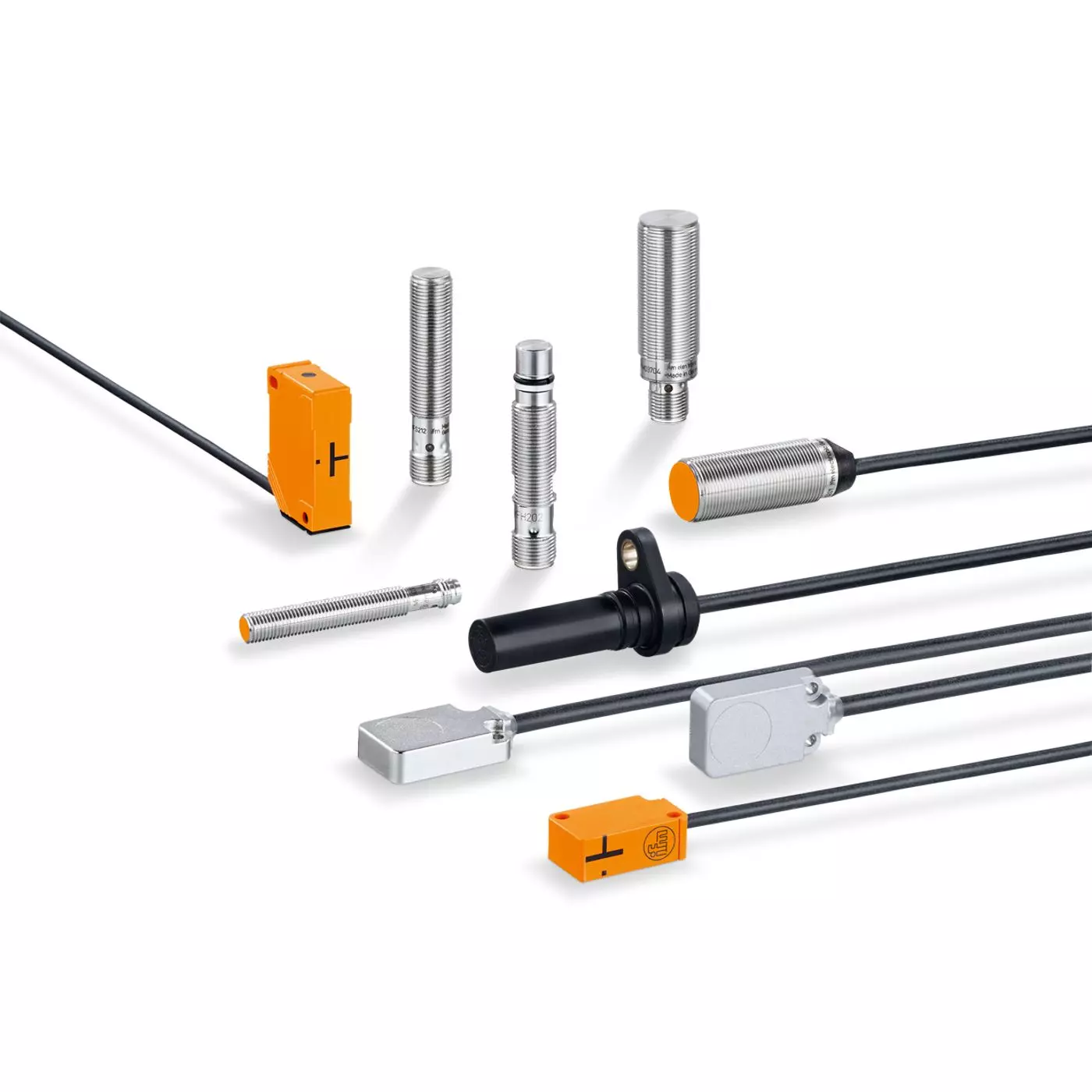

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Rectangular types
Magnetic sensors are used for the detection of positions without contact or wear and tear. They are used where very long sensing ranges are required. Due to their operating principle, magnetic sensors can detect special targets (permanent magnets) through all non-magnetisable materials such as stainless steel, aluminium, plastics and glass. The compact rectangular design is suited for applications with restricted space.
Features & Benefits
- Small rectangular designs with long sensing ranges up to 70 mm
- High switching frequency for fast processes
- All types flush or non-flush mountable
- Wide operating temperature range
Additional Notes
| MPN | Sensing range | Output function | Output | Dimensions | Connection |
|---|---|---|---|---|---|
| MQ2000 | 5 mm | normally open | DC PNP | 20 x 8 x 32 mm | 2 m PUR-Cable |
| MQ2001 | 5 mm | normally open | DC PNP | 20 x 8 x 32 mm | 0.3 m PUR-Cable; M8 Connector |
| MQ2003 | 5 mm | normally open / closed; (configurable) | DC PNP/NPN | 20 x 8 x 32 mm | 2 m PUR-Cable |
| MQ2004 | 5 mm | normally open / closed; (configurable) | DC PNP/NPN | 20 x 8 x 32 mm | 0.3 m PUR-Cable; M12 Connector |
| MQ2005 | 5 mm | normally open / closed; (configurable) | DC PNP/NPN | 20 x 8 x 32 mm | 0.3 m PUR-Cable; M12 Connector |
| MS5010 | 60 mm | normally open | DC PNP | 28 x 10 x 16 mm | M8 Connector |
| MS5011 | 60 mm | normally open | DC PNP | 28 x 10 x 16 mm | 2 m PUR / PVC-Cable |
| MS5013 | 60 mm | normally closed | DC PNP | 28 x 10 x 16 mm | M8 Connector |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010030010 | Position Sensors - Magnetic - Full-metal sensors | $0.01 | |
| IFM-010030020 | Position Sensors - Magnetic - Cylindrical housings | $0.01 | |
| IFM-010030040 | Position Sensors - Magnetic - Hydraulic cylinder applications | $0.01 | |
| IFM-010030050 | Position Sensors - Magnetic - Speed sensors for drives and axes | $0.01 | |
| IFM-010030060 | Position Sensors - Magnetic - Magnetically coded sensors | $0.01 | |
| IFM-010030070 | Position Sensors - Magnetic - Welding applications | $0.01 |
