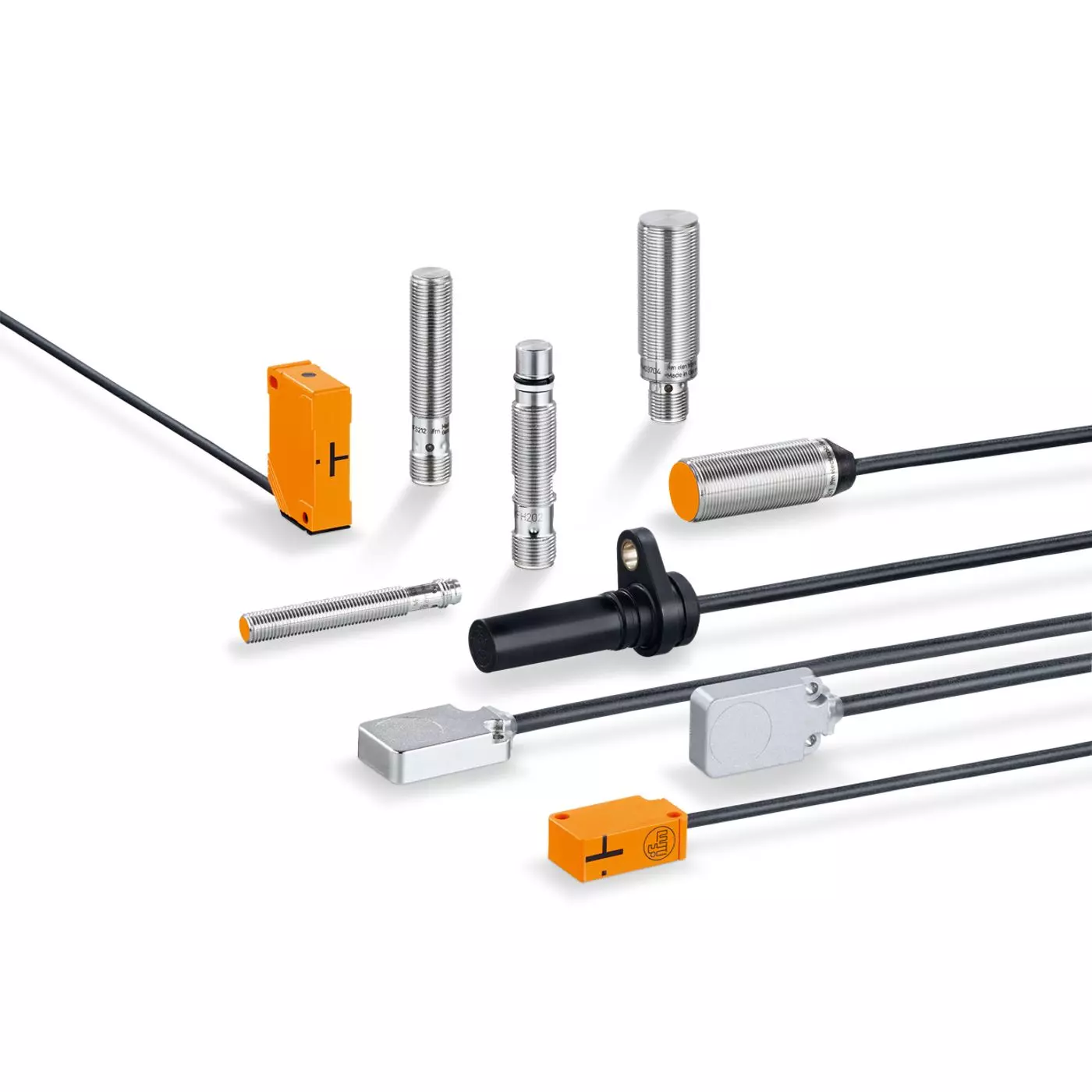

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Cylinder types
Magnetic sensors are used for the detection of positions without contact or wear and tear. They are used where very long sensing ranges are required. Due to their operating principle, magnetic sensors can detect special targets (permanent magnets) through all non-magnetisable materials such as stainless steel, aluminium, plastics and glass. Thanks to their robust metal housing, cylinder type magnetic sensors are particularly suited for use in harsh industrial environments.
Features & Benefits
- Small cylindrical designs with long sensing ranges up to 70 mm
- High switching frequency for fast processes
- All types flush or non-flush mountable
- Wide operating temperature range
Additional Notes
| MPN | Sensing range | Output function | Output | Dimensions | Connection |
|---|---|---|---|---|---|
| M95009 | 2 x normally closed, 1 x normally open | DC | Ø 40 mm | M12 Connector | |
| ME5010 | 60 mm | normally open | DC PNP | M8 x 1 / L = 60 mm | M8 Connector |
| ME5011 | 60 mm | normally open | DC PNP | M8 x 1 / L = 50 mm | 2 m PUR / PVC-Cable |
| ME5015 | 60 mm | normally open | DC NPN | M8 x 1 / L = 40 mm | 2 m PUR / PVC-Cable |
| MFS201 | 60 mm | normally open | DC PNP | M12 x 1 / L = 50 mm | 2 m PUR-Cable |
| MFS202 | 60 mm | normally open | DC NPN | M12 x 1 / L = 50 mm | 2 m PUR-Cable |
| MFS209 | 60 mm | normally open | DC NPN | M12 x 1 / L = 60 mm | M12 Connector |
| MFS210 | 60 mm | normally closed | DC PNP | M12 x 1 / L = 60 mm | M12 Connector |
| MFS211 | 60 mm | normally open | DC PNP | M12 x 1 / L = 60 mm | M12 Connector |
| MFT202 | 60 mm | normally open | DC PNP | M12 x 1 / L = 60 mm | M12 Connector |
| MFT204 | 60 mm | normally open | DC PNP | Ø 12 / L = 60 mm | M12 Connector |
| MGS201 | 70 mm | normally open | DC PNP | M18 x 1 / L = 50 mm | 2 m PUR-Cable |
| MGS202 | 70 mm | normally closed | DC PNP | M18 x 1 / L = 50 mm | 2 m PUR-Cable |
| MGS204 | 70 mm | normally open | DC PNP | M18 x 1 / L = 60 mm | M12 Connector |
| MGS205 | 70 mm | normally open | DC NPN | M18 x 1 / L = 60 mm | M12 Connector |
| MGS206 | 70 mm | normally closed | DC PNP | M18 x 1 / L = 60 mm | M12 Connector |
| MGT201 | 100 mm | normally open | DC PNP | M18 x 1 / L = 60 mm | M12 Connector |
| MGT203 | 70 mm | normally open | DC PNP | M18 x 1 / L = 60 mm | M12 Connector |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010030010 | Position Sensors - Magnetic - Full-metal sensors | $0.01 | |
| IFM-010030030 | Position Sensors - Magnetic - Rectangular housings | $0.01 | |
| IFM-010030040 | Position Sensors - Magnetic - Hydraulic cylinder applications | $0.01 | |
| IFM-010030050 | Position Sensors - Magnetic - Speed sensors for drives and axes | $0.01 | |
| IFM-010030060 | Position Sensors - Magnetic - Magnetically coded sensors | $0.01 | |
| IFM-010030070 | Position Sensors - Magnetic - Welding applications | $0.01 |
