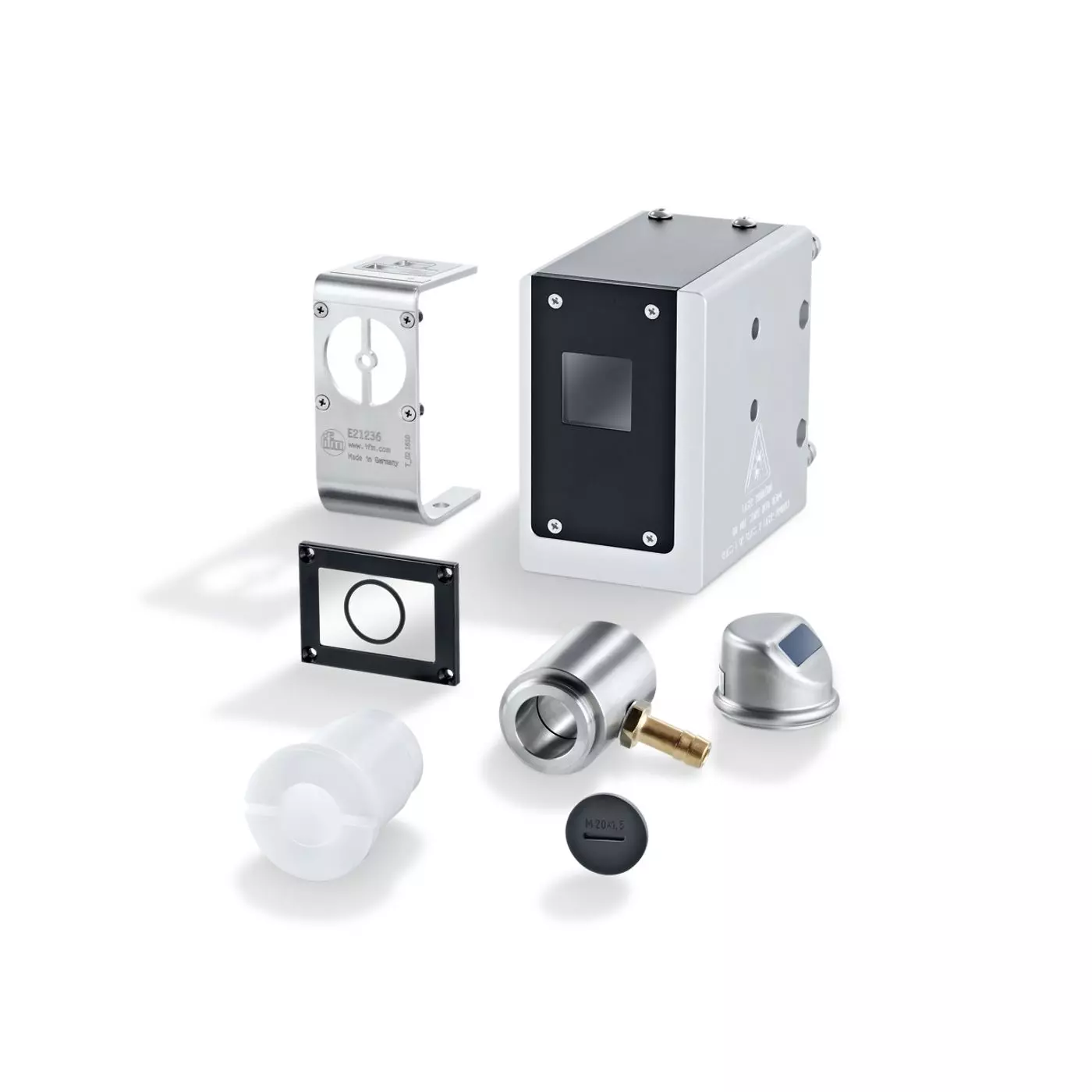

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Cooling and protection box for distance sensors
In case of ambient temperatures up to 180 °C, powerful electronics should be cooled to protect them from overheating. Using the cooling box, the distance sensor O1D can now also be used in hot applications, e.g. in the steel industry. After connection to a cooling circuit via the standardised 3/8" tube connections, the temperature on the inside of the cooling box can be cooled down to an "electronics friendly" temperature by means of water and cold air. If you screw off the tube connections, the box can be used as protection casing for very harsh industrial operating conditions.
Features & Benefits
- Use for ambient temperatures up to 180 °C
- Robust metal housing with integrated cooling circuit
- Water or air cooling possible
- Reliable protection against very harsh environmental conditions
- For distance sensors type O1D
Additional Notes
| MPN | Product designation | Design | Dimensions | Material |
|---|---|---|---|---|
| E21248 | Cooling box | protective housing with an active cooling system for types O1D | 112 x 70 x 108 mm | housing: aluminum transparent anodized; cover: aluminum black anodized; Front framework: aluminum black anodized; front lens: float glass; Cable gland: brass nickel-plated; nozzle: brass nickel-plated; sealing: FKM |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110190010 | ifm Accessories - Device protection - Protective covers for position sensors | $0.01 | |
| IFM-110190020 | ifm Accessories - Device protection - Mounting adapters for capacitive sensors | $0.01 | |
| IFM-110190030 | ifm Accessories - Device protection - Mounting wells for capacitive sensors | $0.01 | |
| IFM-110190040 | ifm Accessories - Device protection - For photoelectric sensors | $0.01 | |
| IFM-110190041 | ifm Accessories - Device protection - For process sensors | $0.01 | |
| IFM-110190050 | ifm Accessories - Device protection - For distance sensor | $0.01 | |
| IFM-110190070 | ifm Accessories - Device protection - Protective panes | $0.01 | |
| IFM-110190110 | ifm Accessories - Device protection - Thermowells for temperature sensors | $0.01 | |
| IFM-110190140 | ifm Accessories - Device protection - Coaxial tubes for level sensors | $0.01 | |
| IFM-110190160 | ifm Accessories - Device protection - Protective caps | $0.01 | |
| IFM-110190170 | ifm Accessories - Device protection - Device protection for infrared temperature sensors | $0.01 |
