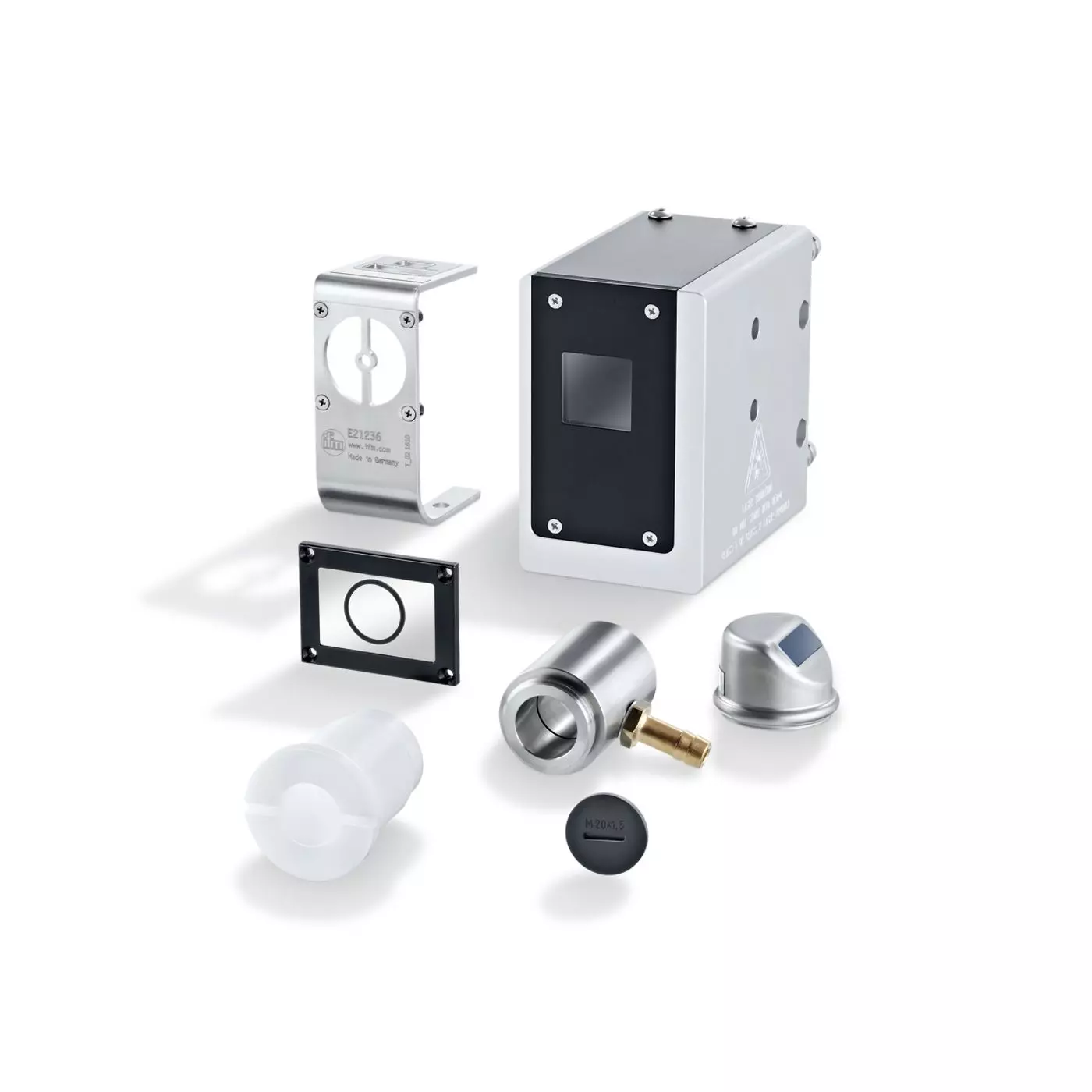

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Mounting adapters for capacitive sensors
Mounting adapters are used to mount capacitive sensors on tank or vessel walls for level detection. The adapters protect the sensors from dirt, impacts and shocks. An optional cover can be installed to protect the cable connection of the sensor on the outer vessel wall.
Features & Benefits
- Efficient protection against soiling, impact and shock
- Reliable installation in a vessel wall
Additional Notes
| MPN | Product designation | Design | Process connection | Sensor connection | Material |
|---|---|---|---|---|---|
| E11027 | Mounting adapter | Ø 34 mm - G 1½ | threaded connection G 1 1/2 external thread | Clamp fitting Ø 34 mm | Adapter: POM |
| E11030 | Locknut | G 1¼ | PVDF | ||
| E11031 | Locknut | G 1½ | POM | ||
| E11032 | Locknut | G 1½ | PVDF | ||
| E11033 | Mounting adapter | M30 x 1,5 - G 1½ | threaded connection G 1 1/2 external thread | threaded connection M30 x 1,5 Internal thread | Adapter: POM; Gasket: EPDM |
| E11034 | Mounting adapter | M30 x 1,5 - G 1½ | threaded connection G 1 1/2 external thread | threaded connection M30 x 1,5 Internal thread | Adapter: PVDF; Gasket: EPDM |
| E11035 | Mounting adapter | M30 x 1,5 - G 1¼ | threaded connection G 1 1/4 external thread | threaded connection M30 x 1,5 Internal thread | Adapter: POM; Gasket: EPDM |
| E11036 | Mounting adapter | M30 x 1,5 - G 1¼ | threaded connection G 1 1/4 external thread | threaded connection M30 x 1,5 Internal thread | Adapter: PVDF; Gasket: EPDM |
| E11078 | Protective cover | G 1¼ | PPSU black transparent | ||
| E43900 | Mounting adapter | M18 x 1 - G ¾ | threaded connection G 3/4 external thread | threaded connection M18 x 1 Internal thread | Adapter: POM |
| E43901 | Mounting adapter | M18 x 1 - G ¾ | threaded connection G 3/4 external thread | threaded connection M18 x 1 Internal thread | Adapter: PVDF |
| E43902 | Locknut | G ¾ | POM | ||
| E43905 | Mounting adapter | M18 x 1 - G 1 | threaded connection G 1 external thread | threaded connection M18 x 1 Internal thread | Adapter: PVDF |
