Headline
Accessories for encoders

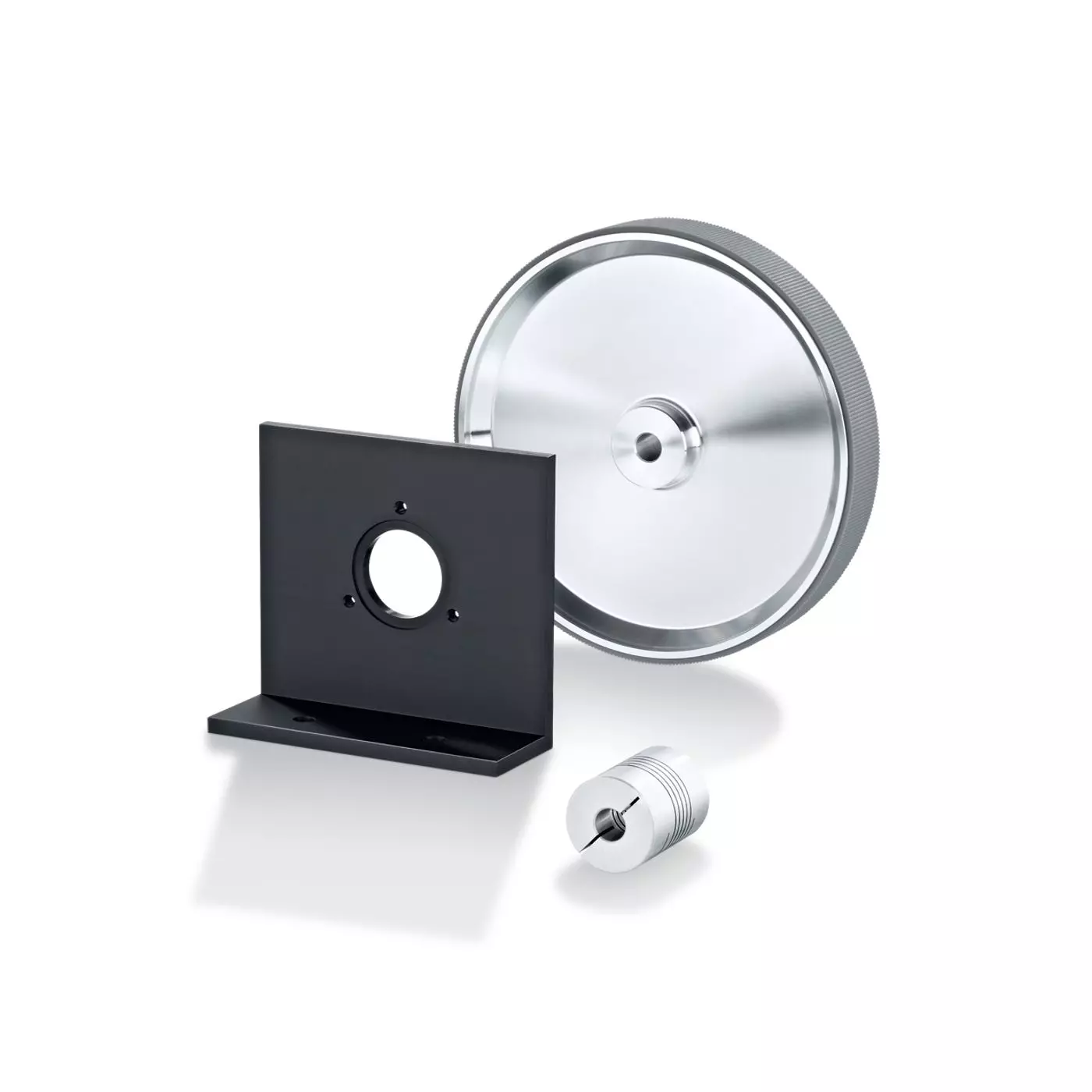

Angle brackets ensure simple, rapid and inexpensive mounting of encoders. Couplings and bearings for encoders ensure backlash-free rotation transmission, are vibration-isolating and compensate alignment errors. If it is not possible to install the encoder at the drive train to detect the speed of a conveyor belt because the slip occurring at the belt causes measuring errors, a measuring wheel can be installed to provide speed feedback directly at the conveyor.
Features & Benefits
- Easy, quick and secure mounting
Additional Notes
| MPN | Product designation | Outer diameter | Inside diameter | Width | Material |
|---|---|---|---|---|---|
| E60041 | Fastening clamp | 12 mm | 4.2 mm | 5.5 mm | steel |
| E60210 | Reducing bush | 15 mm | 14 mm | stainless steel (1.4305 / 303) | |
| E60211 | Reducing bush | 15 mm | 10 mm | stainless steel (1.4305 / 303) | |
| E60212 | Reducing bush | 15 mm | 8 mm | stainless steel (1.4305 / 303) | |
| E60213 | Reducing bush | 15 mm | 6 mm | stainless steel (1.4305 / 303) | |
| E60214 | Reducing bush | 15 mm | 12 mm | stainless steel (1.4305 / 303) | |
| E60218 | Reducing bush | 15 mm | 12.7 mm | stainless steel (1.4305 / 303) | |
| E61438 | spring arm for encoders | 300 mm | 65.9 mm | aluminum anodized; Spring: stainless steel (1.4310 / 301) | |
| E61439 | draw-wire mechanism | Housing: aluminum; wire: stainless steel polyamide coated | |||
| E61440 | draw-wire mechanism | Housing: PA; wire: stainless steel polyamide coated | |||
| E61441 | draw-wire mechanism | Housing: diecast zinc / plastic; wire: stainless steel polyamide coated | |||
| E61442 | draw-wire mechanism | Housing: aluminum anodized; wire: stainless steel polyamide coated | |||
| E61446 | spring arm for encoders | 340 mm | 65.9 mm | aluminum anodized; Spring: stainless steel (1.4310 / 301) | |
| UD0003 | Flange plate | aluminum anodized | |||
| UD0004 | Flange plate | aluminum anodized | |||
| UD0005 | Flange plate | aluminum anodized |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110100010 | ifm Accessories - for encoders - Angle brackets | $0.01 | |
| IFM-110100020 | ifm Accessories - for encoders - Measuring wheels for linear measurement | $0.01 | |
| IFM-110100030 | ifm Accessories - for encoders - Couplings and bearings | $0.01 |
