Headline

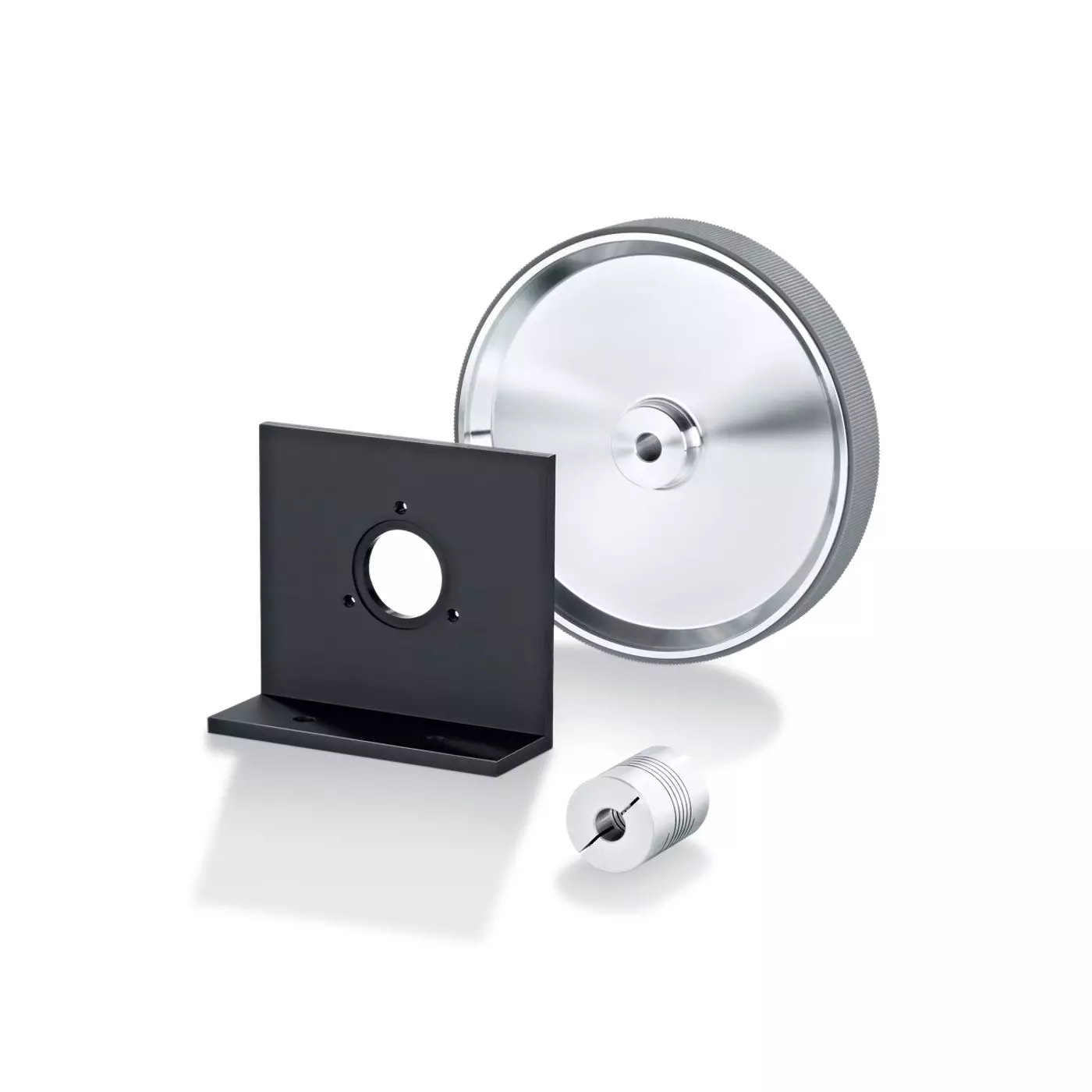

Angle brackets
Angle brackets provide a quick, easy and cost-effective way of mounting encoders on plane surfaces to reduce vibration.
Features & Benefits
- Easy, quick and inexpensive mounting
- Efficient vibration damping
Additional Notes
| MPN | Product designation | Dimensions | Material |
|---|---|---|---|
| E60033 | Angle brackets | 80 x 90 x 40 mm | aluminum black anodized |
| E60034 | Angle brackets | 100 x 110 x 40 mm | aluminum black anodized |
| E60035 | Angle brackets | 80 x 90 x 40 mm | aluminum black anodized |
| E60302 | Angle brackets | 100 x 110 x 40 mm | aluminum black anodized |
| E61438 | spring arm for encoders | 180 x 65.9 x 75 mm | aluminum anodized; Spring: stainless steel (1.4310 / 301) |
| E61446 | spring arm for encoders | 230 x 65.9 x 75 mm | aluminum anodized; Spring: stainless steel (1.4310 / 301) |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110100020 | ifm Accessories - for encoders - Measuring wheels for linear measurement | $0.01 | |
| IFM-110100030 | ifm Accessories - for encoders - Couplings and bearings | $0.01 | |
| IFM-110100040 | ifm Accessories - for encoders - Mounting accessories | $0.01 |
